Printronix Products
Part #: 901305 | SKU: PRI98705

Products and parts from Printronix.

Printronix Products

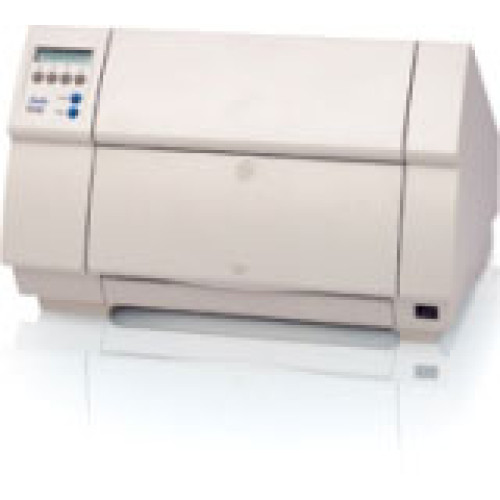

Part Details: TallyGenicom Serial Matrix Products, TG T2250 Serial MTRX printer 750CPS, 24WIRE, 136COL, Serial/Parallel

Need a different version of the Printronix Accessory? View all 3065 configurations

Additional Information

Manufacturer	Printronix
Model Name	Parts
Product Condition	No

Technical Information

Maximum Mono Print Speed (cps):
- 750 cps
- 750 cps
Maximum Print Resolution:
- 360 x 360 dpi
- 360 x 360 dpi
Print Color:
- Monochrome
- Monochrome
Number of Columns:
- 136
- 136
Number of Pins:
- 24-pin
- 24-pin

General Information

Product Type:
- Dot Matrix Printer
- Dot Matrix Printer
Brand Name:
- Tallygenicom
- Dascom
Manufacturer:
- Tallygenicom, L.P
- Dascom Americas
Product Model:
- T2250
- T2250
Product Name:
- T2250 Dot Matrix Printer
- T2250 Dot Matrix Printer

Physical Characteristics

Height:
- 23.6"
- 23.6"
Width:
- 11.8"
- 11.8"
Depth:
- 15.7"
- 15.7"
Weight (Approximate):
- 35 lb
- 35 lb
Form Factor: Desktop

Interfaces/Ports

Serial Port:
- Yes
- Yes
Parallel Port:
- Yes
- Yes

Other

Certifications & Standards:
- Energy Star compliant, Ozone-free
- Energy Star compliant, Ozone-free
Additional Information:
- Character Density: 5, 6, 7.5, 8.6, 10, 12, 15, 17.1, 20 cpi
- Line Density: 2, 3, 6, 8, 12 lpi
- MTBF: 10,000 hours @ 100% duty cycle
- Printing Copies:
- Original + 5 (front push tractors) without jamming
- 3 forms at once and autoswitch between forms without operator intervention
- Character Sets:
- 256 characters
- 20 international sets
- IBM PC
- Epson
- Characters Per Line Density:
- 136 at 10 cpi
- 163 at 12 cpi
- 204 at 15 cpi
- 232 at 17.1 cpi
- 272 at 20 cpi
- Standard Fonts:
- Draft
- Copy Draft
- NLQ and LQ Fonts:
- Courier
- Roman
- San Serif
- Cyrillic
- OCR A/B
- 15 Barcodes
- Scaleable LCP font
- Note: Accepts downloadable fonts in Epson and IBM XL24 format
- Barcodes
- Code 2/5
- Code EAN 8
- Code EAN 13
- Code UPCA
- Code UPCE
- Code Delta-Distance
- Code 39
- Codabar
- Code BCD matrix
- Code 11
- Code MSI/modified Plessey
- Code 128
- Code 128 EAN
- POSTNET
- LCP
- Paper Handling:
- Standard:
- Friction and push tractor
- Front feed (straight path for continuous forms and labels)
- Auto paper load
- Auto quick tear
- Auto view
- Full paper parking
- Auto-gap adjustment (for forms thickness)
- Optional:
- Supplemental push tractors (front and/or rear)
- Single-bin automatic sheet feeder(100 sheets)
- Paper Width for front tractor and manual front insertion (cut sheets):
- 3" - 16.5" width
- 3" - 22" length
Platform Supported: PC

Power Description

Operating Power Consumption:
- 40 W
- 40 W
Standby Power Consumption:
- 15 W
- 15 W
Input Voltage:
- 110 V AC
- 110 V AC
Power Source:
- AC Supply
- AC Supply

Fonts & Emulation

Language Emulation:
- MTPL
- IBM Proprinter XL24
- Epson LQ-2550
- MTPL
- IBM Proprinter XL24
- Epson LQ-2550

Reliability

Duty Cycle:
- 26000 pages per month
- 26000 pages per month
MTBF:
- 10000 Hour
- 10000 Hour

Memory

Standard Memory:
- 64 KB
- 64 KB

Warranty

Limited Warranty:
- 1 Year
- 1 Year

Media Types & Handling

Media Type: Plain Paper
Media Size: Custom Size

Extended Details
