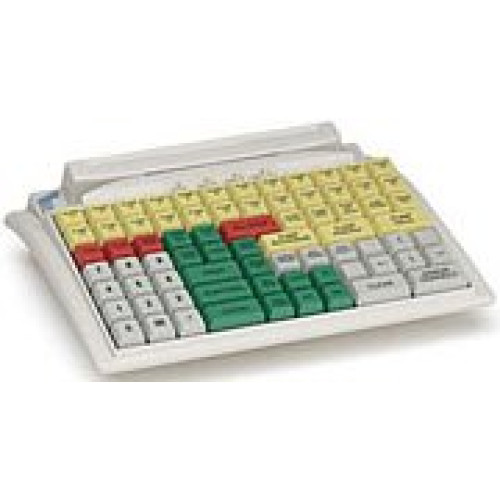

Preh KeyTec MC84 Series Keyboards
Part #: MC84M | SKU: 15987

The MC84 Series provides 84 key positions arranged in a 7x12 layout which can be configured and programmed to meet changing needs. When a traditional POS key layout is required, the MC84 Series adapts to meet almost any application.

Preh KeyTec MC84 Series Keyboards

Part Details: MC 84 WX Keyboard (Row and Column Layout, 3-Track MSR)

Need a different version of the Preh KeyTec MC84 Series Keyboards? View all 6 configurations

Additional Information

Manufacturer	No
Model Name	MC84 Series
Product Condition	No

Technical Information

Keyboard Layout: Matrix
Programmable Keys: 84
Reliability: 3 million cycles/key
Interfaces/Ports: PS/2
Keyboard Type: Membrane

General Information

Manufacturer:
- Preh
- The Preh Group
Product Line: MC
Product Name: MC 84 POS Keyboard

Physical Characteristics

Dimensions:
- 2.15" (55mm) x 10.2" (259mm) x 7.9" (201mm)
- 2.15" (55mm) x 10.2" (259mm) x x 7.9" (201mm)
Color: White

Included Features

Included Features:
- OPOS and JavaPOS drivers
- Daisy Chain Socket
- Magnetic Stripe Reader (3 tracks)

Agency Approvals

Agency Approvals:
- CE
- EN55022
- FCC Subpart 15 ClassA
- EN50082-1
- DIN-IEC 68 Part 1

Environmental Conditions

Temperature:
- 0Â°C (32Â°F) to 50Â°C (122Â°F) Operating
- -40Â°C (-40Â°F) to 60Â°C (140Â°F) Storage - and Transportation
Humidity: 5 to 93%

Extended Details
