Powerware UPS Accessory
Part #: 86507 | SKU: 98320

If the power goes out, will your Avaya telecommunications equipment remain up and running? The answer is a resounding, Yes! if you have an Avaya-labled UPS protecting it. Designed with a robust, online design and extended battery runtimes, the Avaya UPS completely isolates connected equipment from power disturbances so you don't have to worry about downtime. To make sure the UPS is fully integrated into your application, we have a full line of software and connectivity devices. Avaya UPS models range from 300 VA to 18kVA and most can be mounted in a 2-or 4-post rack enclosure.

Powerware UPS Accessory

Part Details: Accessories, Kit (EXRT UPS 7KVA HV)

Need a different version of the Powerware UPS Accessory? View all 804 configurations

Additional Information

Manufacturer	No
Model Name	UPS
Product Condition	No

Technical Information

Receptacles: Hardwired
Plug/Connector Type: Hardwired
Interfaces/Ports:
- 1 x DB-9
- 1 x RS-232 Serial

General Information

Product Type: Dual Conversion Online UPS
Brand Name: Eaton
Manufacturer: Eaton Corporation

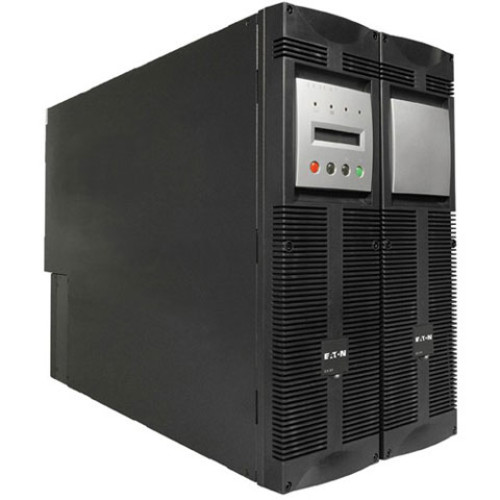

Product Name: EX RT 7 kVA RT HV, 208V
Product Line: Pulsar

Physical Characteristics

Height: 10.3"
Width: 17.5"
Depth: 26"
Form Factor: 6U Tower/Rack Mountable
Weight (Approximate): 192 lb

Interfaces/Ports

Modular Slots: 1 x Communications Slot
Interfaces/Ports:
- 1 x DB-9
- 1 x RS-232 Serial

Other

Package Contents:
- EX RT 7 kVA RT HV, 208V
- I/O Box
- Battery Module
- Power Management Software Suite CD
- Serial Cable DB9/DB9
- 2 x Tower Stands
- 2 Stand Extenders
- Battery Power Cable
- Battery Detection Cable
- 4 x Rail Kits with Mounting Hardware
- Safety Guide
- Quick Start Guide
- 4-Language User Manual
- EX RT 7 kVA RT HV, 208V
- I/O Box
- Battery Module
- Power Management Software Suite CD
- Serial Cable DB9/DB9
- 2 x Tower Stands
- 2 Stand Extenders
- Battery Power Cable
- Battery Detection Cable
- 4 x Rail Kits with Mounting Hardware
- Safety Guide
- Quick Start Guide
- 4-Language User Manual
Certifications & Standards:
- UL 1778
- CSA 22.2
- IEC 62 040-1
- IEC 62 040-2
- IEC 60950
- FCC class A
Software Included: Power Management Software Suite
Additional Information:
- Double Conversion UPS technology for 100% compatibility with any application, environment or genset
- Versatile 6U Rack/Tower form factor
- Automatic by-pass and hot-swappable power module for high availability
- Extended runtime capabilities with multiple, hot-swappable battery modules (optional)
- Space saving battery connector cables and extra long battery cables (option) for separate battery racks
- Battery detection system automatically configures battery modules and UPS

Power Description

Input Voltage Range:
- 208 V AC Nominal
- 120 V AC to 280 V AC
Load Capacity: 7 kVA/4.90 kW
Input Voltage:
- 110 V AC
- 220 V AC
Output Voltage:
- 200 V AC
- 208 V AC
- 220 V AC
- 230 V AC
- 240 V AC
- 250 V AC
Frequency:
- 50 Hz Input
- 60 Hz Input

Battery Information

Batteries: 1 x Maintenance-free Sealed Lead Acid Hot-swappable
Backup/Run Time:
- 0.10 Hour 4.90 kW Full Load
- 0.23 Hour 2.45 kW Half Load

Management

Network Management: Included

Scalability

Modules: Battery Module

Warranty

Limited Warranty: 2 Year
