Planar Accessory
Part #: 997-6376-00 | SKU: 144090

Products and parts from Planar.

Planar Accessory

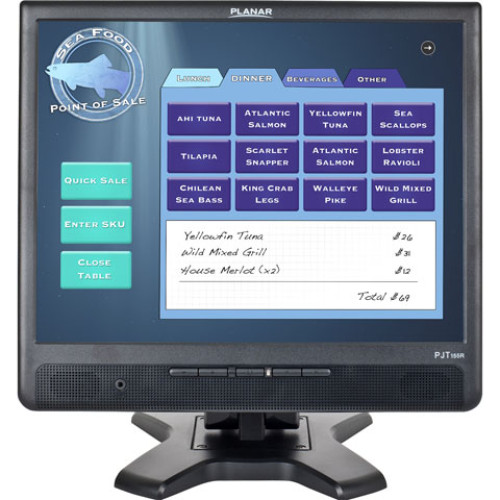

Part Details: Planar PJT155R 15 LCD Touchscreen Monitor - 4:3 - 8 ms - 15 Class - 5-wire Resistive - 1024 x 768 - XGA - Adjustable Display Angle - 16.7 Million Colors - 500:1 - 250 Nit - USB - VGA - RoHS - 1 Year

Need a different version of the Planar Accessory? View all 827 configurations

Additional Information

Manufacturer	No
Model Name	Parts
Product Condition	No

Technical Information

Horizontal Viewing Angle: 140°
Vertical Viewing Angle: 130°
Adjustable Display Angle: Yes
Screen Mode: XGA
Mount Type: Desk Mountable
Screen Size: 15"
Aspect Ratio: 4:3
Response Time: 8 ms

General Information

Product Type: LCD Touchscreen Monitor
Brand Name: Planar
Manufacturer: Planar Systems, Inc
Product Model: PJT155R
Product Name: 15" Touch Screen Monitor

Physical Characteristics

VESA Mount Compatible: Yes
VESA Mount Standard: 75 x 75
Height with Stand: 13.40"
Width with Stand: 13.20"
Depth with Stand: 7.80"
Height: 11.7"
Width: 13.2"
Depth: 2.4"
Weight (Approximate): 9.90 lb

Interfaces/Ports

USB: Yes
VGA: Yes

Other

Green Compliant: Yes
Green Compliance Certificate/Authority: RoHS
Certifications & Standards:
- UL/cUL
- FCC-B
- CB
- UL/cUL
- FCC-B
- CB
Package Contents:
- 15" Touch Screen Monitor
- Power Cord
- VGA Cable
- USB Cable (A to B)
- Audio-in Cable
- User's Guide
- Deskstand
- 15" Touch Screen Monitor
- Power Cord
- VGA Cable
- USB Cable (A to B)
- Audio-in Cable
- User's Guide
- Deskstand
Platform Supported: PC

Video

Standard Refresh Rate: 75 Hz
Brightness: 250 Nit
Color Supported: 16.7 Million Colors
Maximum Resolution: 1024 x 768
Contrast Ratio: 500:1

Power Description

Operating Power Consumption: 25 W
Input Voltage:
- 110 V AC
- 220 V AC

Touchscreen Information

Touchscreen: Yes
Touchscreen Type: 5-wire Resistive

Warranty

Limited Warranty: 1 Year
