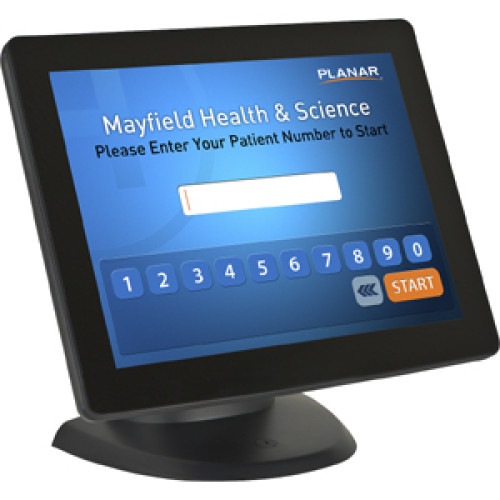

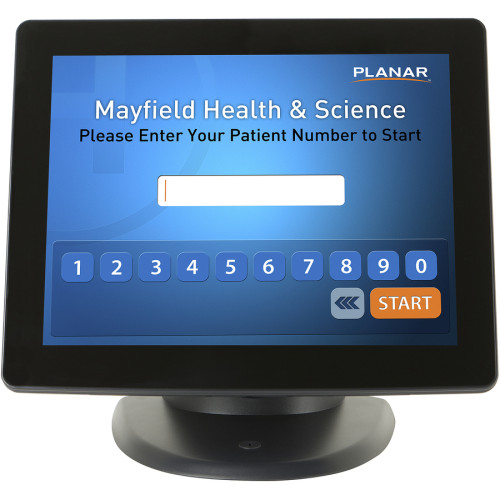

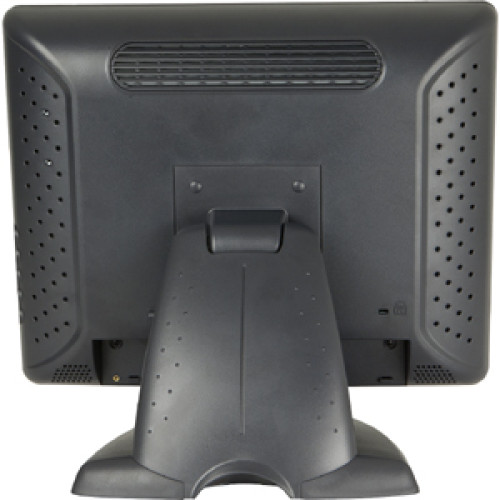

Planar PT1985P Touchscreen
Part #: 997-6315-00 | SKU: 144120

The PT1985P 19" multi-touch zero bezel monitor is perfect for use in retail, hospitality, healthcare and kiosk applications. Easily integrated with a variety of thin client or PC systems, the monitor features a projected capacitive touch screen and USB touch screen interface. No drivers are needed for basic touchscreen operation, but for advanced features, drivers are quickly and easily loaded. Touchscreen is available with both analog and DVI-D input options.

Planar PT1985P Touchscreen

Part Details: Planar PT1985P 19 LCD Touchscreen Monitor - 5 ms - 19 Class - Projected CapacitiveMulti-touch Screen - 1280 x 1024 - SXGA - Adjustable Display Angle - 16.7 Million Colors - 800:1 - 250 Nit - Speakers - DVI - USB - VGA - Black - RoHS - 3 Year

Need a different version of the Planar PT1985P Touchscreen? View all 1 configurations

Additional Information

Manufacturer	No
Model Name	PT1985P
Product Condition	No

Technical Information

Horizontal Viewing Angle: 160°
Vertical Viewing Angle: 160°
Adjustable Display Angle: Yes
Screen Mode: SXGA
Mount Type:
- Wall Mountable
- Arm-mountable
Screen Size: 19"
Response Time: 5 ms

General Information

Product Type: LCD Touchscreen Monitor
Brand Name: Planar
Manufacturer: Planar Systems, Inc
Product Model: PT1985P
Product Name: PT1985P Touchscreen LCD Monitor

Physical Characteristics

VESA Mount Compatible: Yes
VESA Mount Standard: 100 x 100
Height: 16.1"
Width: 17.3"
Depth: 10.5"
Color: Black
Weight (Approximate): 19.40 lb

Interfaces/Ports

USB: Yes
DVI: Yes
VGA: Yes

Other

Certifications & Standards:
- UL/c-UL
- FCC-Class B
- TUV-T mark
- CSA
- CE
- UL/c-UL
- FCC-Class B
- TUV-T mark
- CSA
- CE
Package Contents:
- PT1985P Touchscreen LCD Monitor
- Power Cord
- VGA Cable
- Landing Strip
- Cable Cover
- Screw
- DVI-D Cable
- USB Cable (A to B)
- Audio-in Cable
- CD-ROM (Driver)
- User's Guide
- Quick Start Guide
- PT1985P Touchscreen LCD Monitor
- Power Cord
- VGA Cable
- Landing Strip
- Cable Cover
- Screw
- DVI-D Cable
- USB Cable (A to B)
- Audio-in Cable
- CD-ROM (Driver)
- User's Guide
- Quick Start Guide
Platform Supported:
- PC
- Mac

Power Description

Operating Power Consumption: 28 W
Off-Mode Power Consumption: 1 W
Input Voltage:
- 110 V AC
- 220 V AC

Video

Standard Refresh Rate: 80 Hz
Brightness: 250 Nit
Color Supported: 16.7 Million Colors
Maximum Resolution: 1280 x 1024
Contrast Ratio: 800:1

Touchscreen Information

Touchscreen: Yes
Multi-touch Screen: Yes
Touchscreen Type: Projected Capacitive

Warranty

Limited Warranty: 3 Year

Audio

Speakers: Yes

Built-in Devices

Built-in Devices: Speaker
