Planar LB1503R Monitor
Part #: 997-3156-01LF | SKU: 144134

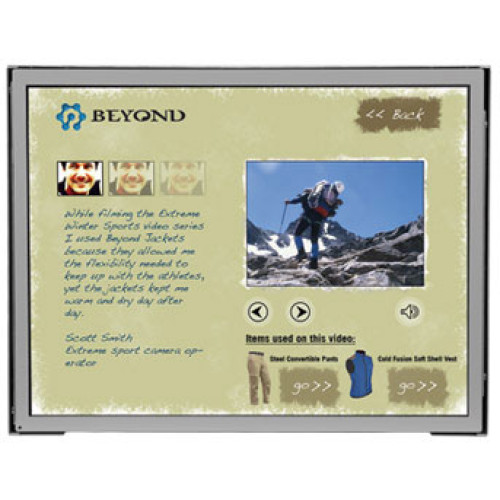

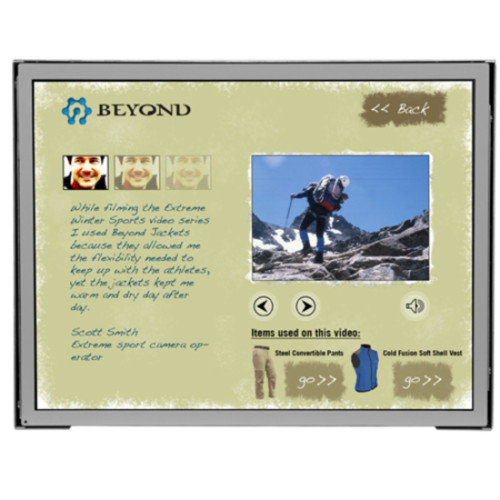

The 15" LB1503R open-frame kiosk display is designed to be easily integrated by kiosk integrators and OEMs into kiosks for retail, point-of-information, surveillance or hospitality applications. The extremely bright 15" open-frame display invites people to interact with compelling kiosk content, even from more than just a couple of feet away. And the addition of composite video allows the content to include streaming video for surveillance or live feeds. The LB1503R offers all the advantages of Planar's award-winning desktop LCD monitors in an open-frame style. It's also compatible with other mounting options using the 75 mm VESA standard mounting pattern on the back of the display.

Planar LB1503R Monitor

Part Details: Planar LB1503R 15 XGA Open-frame LCD Monitor - 1024 x 768 - 550 Nit - 12 ms - 75 Hz Refresh Rate - VGA

Additional Information

Manufacturer No
Model Name LB1503R
Product Condition No

Technical Information

  • Number of Screens: 1
  • Horizontal Viewing Angle: 140°
  • Vertical Viewing Angle: 120°
  • Screen Mode: XGA
  • Mount Type: Wall Mountable
  • Screen Size: 15"
  • Response Time: 12 ms

General Information

  • Product Type: Open-frame LCD Monitor
  • Brand Name: Planar
  • Manufacturer: Planar Systems, Inc
  • Product Model: LB1503R
  • Product Name: LB1503R Open-frame LCD Monitor

Physical Characteristics

  • VESA Mount Compatible: Yes
  • VESA Mount Standard: 75 x 75
  • Height: 10.2"
  • Width: 13.2"
  • Depth: 1.6"
  • Weight (Approximate): 6.70 lb

Interfaces/Ports

  • VGA: Yes
  • S-Video: Yes

Power Description

  • Operating Power Consumption: 60 W
  • Standby Power Consumption: 3 W
  • Input Voltage:
    • 110 V AC
    • 220 V AC

Video

  • Standard Refresh Rate: 75 Hz
  • Brightness: 550 Nit
  • Maximum Resolution: 1024 x 768
  • Contrast Ratio: 500:1

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS

Warranty

  • Limited Warranty: 1 Year
