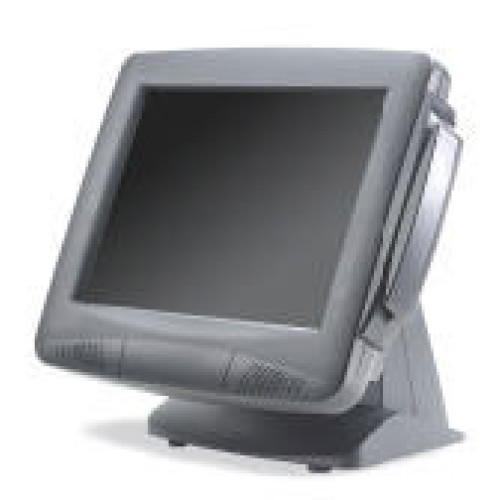

Pioneer AIO-XV POS Touch Terminal
Part #: M550X0R30L | SKU: 21189

PIONEERPOS touch system is a state-of-the-art all-in-one touchscreen system: a perfect fit for space-constrained applications such as restaurant hospitality information service medical and the likes. Beneath its elegant design PIONEERPOS touch system is powered by PC technology with industry leading flat LCD display and touch sensor.

Pioneer AIO-XV POS Touch Terminal

Part Details: AIO-XV, TouchComputer with Intel Pentium III 1GHz processor, 512MB RAM, 20GB, 15 Resistive Active Matrix LCD and Windows XP Professional. Color: Dark gray. Order base separately, see accessories.

Need a different version of the Pioneer AIO-XV POS Touch Terminal? View all 24 configurations

Additional Information

Manufacturer	No
Model Name	AIO-XV
Product Condition	No

AIO-XV Specs (pdf)

Technical Information

Processor: Intel Pentium III 1GHz
Memory: 512MB
Display Type: 15" Active Matrix LCD
Touch Screen Type: Resistive
Video Memory: 4MB
Operating System: Windows XP Professional
Operating System Supported: Linux Windows 9x Windows 2000 Windows CE.NET
Interfaces:
- 2 x 9-pin - Male - DB-9 RS-232
- 1 x RJ-45 RS232/485/422
- 1 x Parallel
- 2 x USB
- 1 x Network
- 1 x PS/2 Keyboard
- Audio Port Output
- Microphone Input
PC Card Slots: 1
PCI Slots: 1
Power Supply: External Power Adapter
Input Voltage Range: 100 to 240 V AC
Peripheral Options:
- Magnetic Stripe Reader
- Speakers
- Internal Modem
- Wireless (RF) Network Adapter

General Information

Manufacturer:
- PioneerPOS
- Pioneer POS, Inc
Product Name: AIO-XV POS Terminal

Physical Characteristics

Dimensions:
- 13.9" (353.06mm) x 15.8" (401.32mm) x 4.6" (117mm)
- 13.9" (353.06mm) x 15.8" (401.32mm) x x 4.6" (117mm)
Weight: 16 lb (7.26 kg) - Approximately

Environmental Conditions

Temperature: 32Â°F (0Â°C) to 104Â°F (40Â°C) Operating
Humidity: 10 to 95% Non-condensing

Agency Approvals

Agency Approvals: FCC EMI CE Marked UL

Extended Details

Recommended Accessories for Model: Pioneer AIO-XV POS Touch Terminal

Pioneer AIO-XV POS Touch Terminal
Part #: 15-101 | SKU: 21210

Wall Mount for 15 AIO-XV
Pioneer AIO-XV POS Touch Terminal
Part #: 45-B15 | SKU: 21211

15 AIO-XV All-in-one Touchscreen Base Stand - required for AIO-XV installation
Pioneer AIO-XV Customer Display
Part #: 45-R0RJ-ADX0A | SKU: 61684

Rear Mount 2 x 20 Display (Pole Display Modified to Fit Older AIO)
