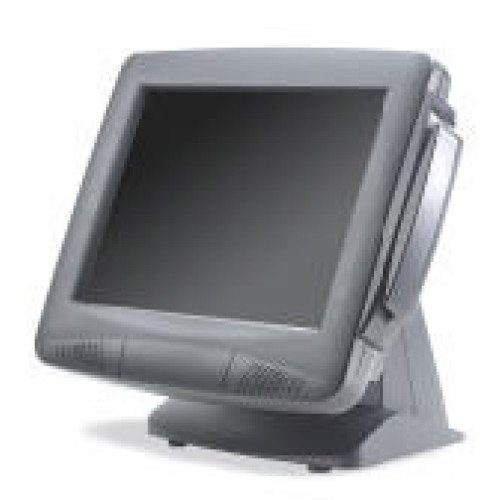

Pioneer AIO-XV POS Touch Terminal
Part #: K58C20R3SL | SKU: 21200

PIONEERPOS touch system is a state-of-the-art all-in-one touchscreen system: a perfect fit for space-constrained applications such as restaurant hospitality information service medical and the likes. Beneath its elegant design PIONEERPOS touch system is powered by PC technology with industry leading flat LCD display and touch sensor.

Pioneer AIO-XV POS Touch Terminal

Part Details: AIO-XV, TouchComputer with Intel Celeron 1GHz processor, 128MB RAM, 20GB, 15 Resistive Active Matrix LCD and Windows 2000. Color: Dark gray. Order base separately, see accessories.

Need a different version of the Pioneer AIO-XV POS Touch Terminal? View all 24 configurations

Additional Information

Manufacturer	No
Model Name	AIO-XV
Product Condition	No

AIO-XV Specs (pdf)

Technical Information

Processor: Intel Celeron 1GHz
Memory: 128MB SDRAM
Hard Drive: 20GB
Display Type: 15" Transflective TFT LCD
Touch Screen Type: 5 Wire Resistive
Video Memory: 4MB
Operating System: Windows 2000
Operating System Supported:
- Windows9x
- Win2000
- XP Prof
- CE.NET
- Linux
Interfaces:
- 2 x DB-9 RS-232 Serial
- 1 x RJ-45 RS232/485/422 Serial
- 1 x Parallel
- 2 x USB
- 1 x Network
- 1 x PS/2 PS/2 Keyboard
- 1 x Audio Mic In
- 1 x Line Out
- 1 x PS/2 Keyboard
PCI Slots: 1
Power Supply: External
Input Voltage Range: 100 to 240 V DC
Peripheral Options:
- Credit Card Reader (2 or 3 Tracks)
- 2 Watts Multimedia Speaker
- Internal Modem
- Wireless (RF) Network Adapter

General Information

Manufacturer:
- PioneerPOS
- Pioneer POS, Inc
Product Name: AIO-XV POS Terminal

Physical Characteristics

Dimensions:
- 13.9" (353.06mm) x 15.8" (401.32mm) x 4.6" (117mm)
- 13.9" (353.06mm) x 15.8" (401.32mm) x x 4.6" (117mm)
Weight: 16 lb (7.26 kg)

Agency Approvals

Agency Approvals:
- FCC
- EMI
- CE Marked
- UL

Other

Additional Information:
- 1 socket for Flash Disk
- Digital I/O (8 output, 4 input channels)
- Intel 82559 Pro 10/100BaseT

Environmental Conditions

Temperature: 32Â°F (0Â°C) to 104Â°F (40Â°C) Operating
Humidity: 10 to 95% Non-condensing

Extended Details

Recommended Accessories for Model: Pioneer AIO-XV POS Touch Terminal

Pioneer AIO-XV POS Touch Terminal
Part #: 15-101 | SKU: 21210

Wall Mount for 15 AIO-XV
Pioneer AIO-XV POS Touch Terminal
Part #: 45-B15 | SKU: 21211

15 AIO-XV All-in-one Touchscreen Base Stand - required for AIO-XV installation
Pioneer AIO-XV Customer Display
Part #: 45-R0RJ-ADX0A | SKU: 61684

Rear Mount 2 x 20 Display (Pole Display Modified to Fit Older AIO)

View All Options
