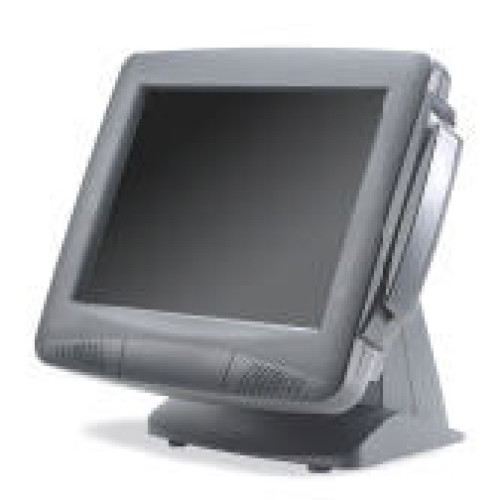

Pioneer AIO-XV POS Touch Terminal
Part #: K56CXAR30P | SKU: 21195

PIONEERPOS touch system is a state-of-the-art all-in-one touchscreen system: a perfect fit for space-constrained applications such as restaurant hospitality information service medical and the likes. Beneath its elegant design PIONEERPOS touch system is powered by PC technology with industry leading flat LCD display and touch sensor.

Pioneer AIO-XV POS Touch Terminal

Part Details: AIO-XV, TouchComputer with Intel Celeron 1GHz processor, 256MB RAM, 20GB, 15 Resistive Active Matrix LCD, 802.11b wireless and Windows XP. Color: Dark gray. Order base separately, see accessories.

Need a different version of the Pioneer AIO-XV POS Touch Terminal? View all 24 configurations

Additional Information

Manufacturer	No
Model Name	AIO-XV
Product Condition	No

AIO-XV Specs (pdf)

Technical Information

Processor: Intel Celeron 1GHz
Memory: 256MB SDRAM
Hard Drive: 1 x 20GB
Display Type: 15" Touch Screen LCD
Video Memory: Shared
Operating System: Windows XP Professional
Operating System Supported:
- Windows 9x
- Windows 2000
- Windows CE.NET
- Linux
Interfaces:
- 2 x DB-9 Male RS-232 Serial
- 1 x RJ-45 RS232/485/422 Serial
- 1 x Parallel
- 2 x USB
- 1 x Network
- 1 x PS/2 PS/2 Keyboard
- 1 x Line Out
- 1 x Audio Mic In
- 1 x PS/2 Keyboard
Power Supply: External
Input Voltage Range: 100 to 240 V AC
Peripheral Options:
- Credit Card Reader (2 or 3 Tracks)
- 2 Watts Multimedia Speaker
- Internal Modem
- Wireless (RF) Network Adapter

General Information

Manufacturer:
- PioneerPOS
- Pioneer POS, Inc
Product Name: AIO-XV POS Terminal

Physical Characteristics

Dimensions:
- 13.9" (353.06mm) x 15.8" (401.32mm) x 4.6" (117mm)
- 13.9" (353.06mm) x 15.8" (401.32mm) x x 4.6" (117mm)
Weight: 16 lb (7.26 kg)

Other

Additional Information:
- VGA: 4MB upto 32MB
- Audio: SoundBlaster Compatible
- Network: Intel 82559 Pro 10/100BaseT
- Phoenix
- Award
- 1 PCI slot
- 1 Socket for Flash Disk
- Digital I/O (8 Output, 4 Input Channels)
- RF IEEE 802.11b
- 11 Mbps

Agency Approvals

Agency Approvals:
- FCC
- EMI
- CE Marked
- UL

Environmental Conditions

Temperature: 32Â°F (0Â°C) to 104Â°F (40Â°C) Operating
Humidity: 10 to 95% Non-condensing

Extended Details

Recommended Accessories for Model: Pioneer AIO-XV POS Touch Terminal

Pioneer AIO-XV POS Touch Terminal
Part #: 15-101 | SKU: 21210

Wall Mount for 15 AIO-XV
Pioneer AIO-XV POS Touch Terminal
Part #: 45-B15 | SKU: 21211

15 AIO-XV All-in-one Touchscreen Base Stand - required for AIO-XV installation
Pioneer AIO-XV Customer Display
Part #: 45-R0RJ-ADX0A | SKU: 61684

Rear Mount 2 x 20 Display (Pole Display Modified to Fit Older AIO)
