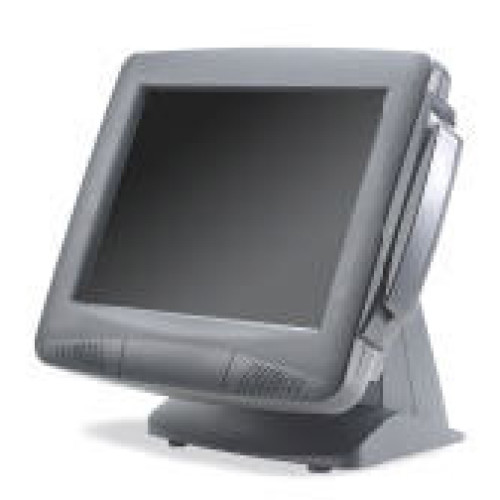

Pioneer AIO-XV POS Touch Terminal
Part #: G58CXAR30P | SKU: 21207

PIONEERPOS touch system is a state-of-the-art all-in-one touchscreen system: a perfect fit for space-constrained applications such as restaurant hospitality information service medical and the likes. Beneath its elegant design PIONEERPOS touch system is powered by PC technology with industry leading flat LCD display and touch sensor.

Pioneer AIO-XV POS Touch Terminal

Part Details: AIO-XV, TouchComputer with Intel Celeron 500 MHz processor, 128MB RAM, 20GB, 15 TFT Active Matrix LCD and Windows XP Professional. Color: Dark gray. Order base separately, see accessories.

Need a different version of the Pioneer AIO-XV POS Touch Terminal? View all 24 configurations

Additional Information

Manufacturer	No
Model Name	AIO-XV
Product Condition	No

AIO-XV Specs (pdf)

Technical Information

Processor: Intel Celeron 500MHz
Memory: 128MB
Hard Drive: 1 x 20GB
Display Type: 15" TFT Active Matrix LCD
Touch Screen Type: Resistive
Operating System: Windows XP Professional
Interfaces:
- 2 x DB-9 RS-232 Serial
- 1 x RJ-45 RS232/485/422 Serial
- 1 x Parallel
- 2 x USB
- 1 x Network
- 1 x PS/2 PS/2 Keyboard
- 1 x Speaker Out
- 1 x Audio Mic In
- 1 x PS/2 Keyboard
PCI Slots: 1
Power Supply: External
Input Voltage Range: 100 to 240 V AC

General Information

Manufacturer:
- PioneerPOS
- Pioneer POS, Inc
Product Name: AIO-XV Touchscreen POS System

Physical Characteristics

Dimensions:
- 13.9" (353.06mm) x 15.8" (401.32mm) x 4.6" (117mm)
- 13.9" (353.06mm) x 15.8" (401.32mm) x x 4.6" (117mm)
Weight: 16 lb (7.26 kg)

Included Features

Included Features: WLAN 802.11b

Agency Approvals

Agency Approvals:
- FCC
- EMI
- CE Marked
- UL

Other

Additional Information:
- 1 socket for Flash Disk
- Digital I/O (8 output, 4 input channels)

Environmental Conditions

Temperature: 32Â°F (0Â°C) to 104Â°F (40Â°C) Operating
Humidity: 10 to 95% Non-condensing

Extended Details
