NEC X-Series Digital Signage Display
Part #: X431BT | SKU: 262774

The NEC X-Series shines a new light of performance on outdoor digital signage, drive-thru menu boards and video walls that are placed in heavily-lit environments.

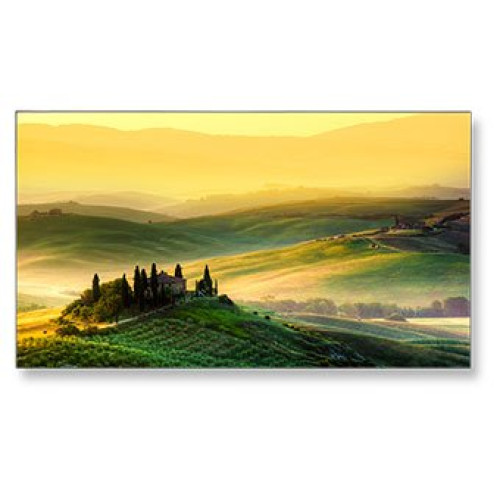

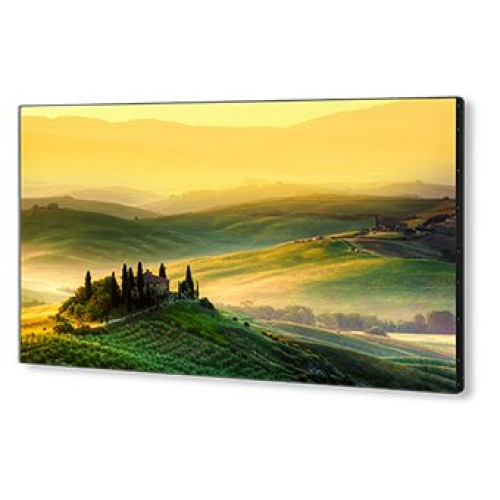

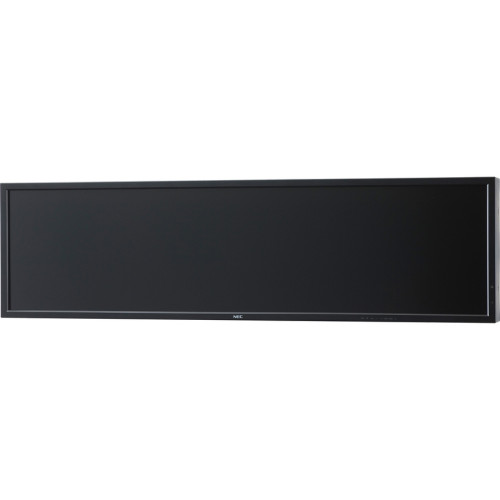

NEC X-Series Digital Signage Display

Part Details: X431BT 43" HALF HEIGHT LCD PUBLIC DISPLAY MONITOR 1920 X 480, 700CD/M2 MAX, BLACK WITH FULL AV, THIN BEZEL, 3 YEAR WARRANTY, CONTENT MANAGEMENT SOFTWARE

Need a different version of the NEC X-Series Digital Signage Display? View all 25 configurations

Additional Information

Manufacturer	No
Model Name	X-Series
Product Condition	No

X-Series Specs (pdf)

General Information

Product Type: Digital Signage Display
Product Series: X
Brand Name: NEC Display
Manufacturer: NEC Display Solutions
Product Model: X431BT
Product Name: MultiSync X431BT Digital Signage Display
Product Line: MultiSync

Physical Characteristics

Height: 11.8"
Width: 43.1"
Depth: 7.5"
Weight (Approximate): 44.09 lb

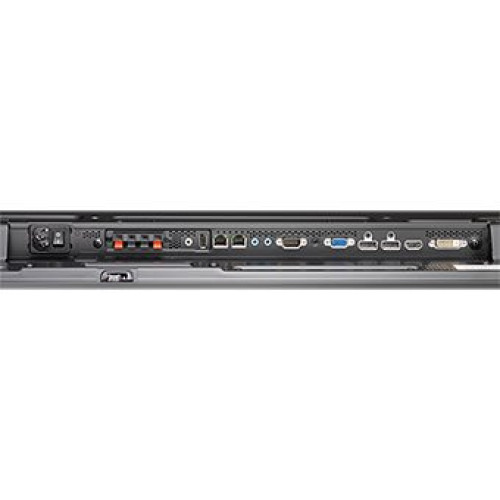

Interfaces/Ports

HDMI: Yes
DVI: Yes
VGA: Yes
S-Video: Yes
Composite Video: Yes
Component Video: Yes
Network (RJ-45): Yes
Audio Line In: Yes
Audio Line Out: Yes
DisplayPort: Yes
Serial: Yes

Other

Green Compliant: Yes
Green Compliance Certificate/Authority:
- RoHS
- ENERGY STAR
Package Contents:
- MultiSync X431BT Digital Signage Display
- Setup Manual
- Power Cord
- Video Signal Cable
- Remote Control
- AA Battery
- CD-ROM (user manual)
- Cable Cover
- MultiSync X431BT Digital Signage Display
- Setup Manual
- Power Cord
- Video Signal Cable
- Remote Control
- AA Battery
- CD-ROM (user manual)
- Cable Cover
Additional Information:
- LCD Module:
- Panel Technology:SPVA
- Pixel Pitch:0.55mm
- Brightness (typical/max):500 cd/m2 / 700 cd/m2
- Contrast Ratio (typical):3000:1
- Aspect Ratio:16:4
- Active Screen Area (W X H):41.7 x 10.4 in. (1059.8 x 265mm)
- Features:

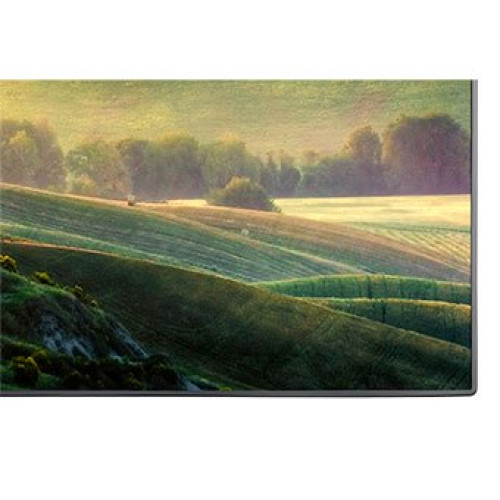

- Thin Bezel
- Advanced thermal capabilities
- Sealed professional panel
- Expansion slot
- Ethernet Control and Communication
- CableComp+
- TileMatrix (10x10)
- TileComp
- Programmable lookup tables
- Plug and Play (DDC/CI, DDC2B)
- PIP (remote)
- POP
- 6-axis color adjustment
- Multi-level programmable zoom
- Scheduler (w/ RTC)
- Sharpness/softness
- Off-timer (countdown)
- Screen saver
- Vacation switch
- 10-bit gamma
- AutoBright (signal input)
- Windows Vista-certified
- IR
- Portrait-capable
- Metal rear cabinet
- Ambient light sensor
- Carbon footprint meter
- Color temperature adjustment (2600-10,000K)
- LCD Module:
- Panel Technology:SPVA
- Pixel Pitch:0.55mm
- Brightness (typical/max):500 cd/m2 / 700 cd/m2
- Contrast Ratio (typical):3000:1
- Aspect Ratio:16:4
- Active Screen Area (W X H):41.7 x 10.4 in. (1059.8 x 265mm)
- Features:
- Thin Bezel
- Advanced thermal capabilities
- Sealed professional panel
- Expansion slot
- Ethernet Control and Communication
- CableComp+
- TileMatrix (10x10)
- TileComp
- Programmable lookup tables
- Plug and Play (DDC/CI, DDC2B)
- PIP (remote)
- POP
- 6-axis color adjustment
- Multi-level programmable zoom
- Scheduler (w/ RTC)
- Sharpness/softness
- Off-timer (countdown)
- Screen saver
- Vacation switch
- 10-bit gamma
- AutoBright (signal input)
- Windows Vista-certified
- IR
- Portrait-capable
- Metal rear cabinet
- Ambient light sensor
- Carbon footprint meter
- Color temperature adjustment (2600-10,000K)
Certifications & Standards:
- CE
- TÜV GS
- C-tick
- FCC Class B
- UL/C-UL or CSA
- CCC
- PSB
- VCCI
- TAA-compliant

Display & Graphics

Display Screen Type: LCD
Screen Size: 43"
Display Resolution: 1920 x 480

Power Description

Input Voltage:
- 110 V AC
- 220 V AC

Warranty

Limited Warranty: 3 Year
