NEC Products
Part #: NP-UM330W-WK | SKU: 262681

Products and parts from NEC.

NEC Products

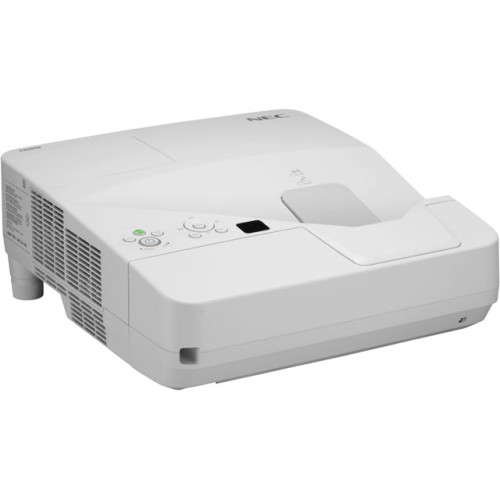

Part Details: WXGA, LCD, 3300 LUMEN ULTRA SHORT THROW PROJECTOR with 16W SPEAKER, CLOSED CAPTIONING AND RJ45, 47.8 POUNDS, INCLUDES NP04WK1 WALL MOUNT

Need a different version of the NEC Accessory? View all 1030 configurations

Additional Information

Manufacturer	No
Model Name	Parts
Product Condition	No

Technical Information

Projection Method:
- Rear
- Front
- Ceiling
Platform Supported:
- PC
- Mac

General Information

Product Type: LCD Projector
Brand Name: NEC
Manufacturer: Nec Corporation
Product Model: UM330W
Product Name: 3300-Lumen Widescreen Ultra Short Throw Projector w/ Wall Mount

Physical Characteristics

Height: 4.4"
Width: 16.9"
Depth: 23.3"
Weight (Approximate): 12.57 lb
Form Factor:
- Ceiling Mountable
- Wall Mountable
- Desktop

Interfaces/Ports

USB: Yes
HDMI: Yes
Number of HDMI Ports: 2
S-Video: Yes
Composite Video: Yes
Network (RJ-45): Yes
Audio Line In: Yes
Audio Line Out: Yes
VGA In: Yes
VGA Out: Yes

Other

Certifications & Standards:
- USA UL 60950-1 FCC Class B
- C-UL CSA 60950-1 ICES-003 Class B
- USA UL 60950-1 FCC Class B
- C-UL CSA 60950-1 ICES-003 Class B
Package Contents:
- UM330W LCD Projector
- Remote Control
- Batteries
- RGB Cable
- User's Manual
- Product Registration Card
- NP04WK Wall Mount
- UM330W LCD Projector
- Remote Control
- Batteries
- RGB Cable
- User's Manual
- Product Registration Card
- NP04WK Wall Mount


Native Resolution: 1280 x 800
Standard Mode Brightness: 3300 lm
Graphic Mode: WXGA
Maximum Projection Distance: 33.60"
Native Aspect Ratio: 16:10
Vertical Keystone Correction: -10°/+10°
Maximum Resolution: 1600 x 1200
Contrast Ratio: 3,000:1
Diagonal Image Size: 58" to 110"
Throw Ratio: 0.36 to 1
Minimum Projection Distance: 17.64"
Maximum Vertical Sync: 120 Hz
Maximum Horizontal Sync: 100 kHz

Video

Video Signal Standard: HDTV
Video Signal Format:
- SECAM
- NTSC
- PAL
Input Scan Format: 1080p
Output Scan Format: 720p

Lamp

Number of Lamps: 1
Normal Mode Lamp Life: 3000 Hour
Economy Mode Lamp Life: 6000 Hour
Lamp Power: 265 W
Lamp Type: AC

Power Description

Operating Power Consumption: 344 W
Standby Power Consumption: 200 mW
Input Voltage:
- 110 V AC
- 220 V AC

Lens

Maximum Lens Aperture: F/1.8
Digital Zoom Factor: 1.4x
Zoom Type: Digital Zoom

Audio

Number of Speakers: 1
Speaker Output Power: 16 W
Speaker Output Mode: Mono

Warranty

Limited Warranty: 2 Year
Parts Warranty/Labor: 1 Year - Lamp

Network & Communication

Ethernet Technology: Ethernet

Extended Details

Barcode Discount

NEC Products Part #: NP-UM330W-WK | SKU: 262681
