NEC Products
Part #: NP-P501X | SKU: 262665

Products and parts from NEC.

NEC Products

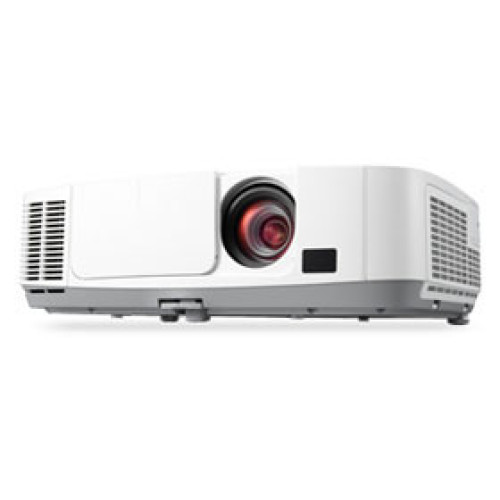

Part Details: PROJECTOR, WXGA, LCD, 5000 LUMEN ENTRY LEVEL INSTALL PROJECTOR, 16W SPEAKER, DUAL HDMI, USB INPUT, USB VIEWER CAPABILITY (JPEG), CLOSED CAPTIONING, WIRED/WIRELESS, WIRELESS LAN MODULE OPTIONAL

Need a different version of the NEC Accessory? View all 1030 configurations

Additional Information

Manufacturer	No
Model Name	Parts
Product Condition	No

Technical Information

Projection Method:
- Front
- Rear
- Ceiling
Platform Supported:
- PC
- Mac

General Information

Product Type: LCD Projector
Brand Name: NEC
Manufacturer: Nec Corporation
Product Model: NP-P501X
Product Name: 5000-lumen Entry-Level Professional Installation Projector

Physical Characteristics

Height: 4.5"
Width: 15.7"
Depth: 11.1"
Color: White
Weight (Approximate): 9.04 lb
Form Factor:
- Ceiling Mountable
- Desktop

Interfaces/Ports

USB: Yes
HDMI: Yes
Number of HDMI Ports: 2
S-Video: Yes
Composite Video: Yes
Network (RJ-45): Yes
Audio Line In: Yes
Audio Line Out: Yes
VGA In: Yes
VGA Out: Yes

Other

Certifications & Standards:
- UL60950-1
- CSA60950-1
- FCC Part 15 Class B
- ICES-03 Class B
- NOM-001-SCFI-1993
- UL60950-1
- CSA60950-1
- FCC Part 15 Class B
- ICES-03 Class B
- NOM-001-SCFI-1993
Package Contents:
- 5000-lumen Entry-Level Professional Installation Projector
- Remote Control
- Batteries
- Power Cord
- RGB Signal Cable
- Built-in Lens Cover
- User Manual
- Quick Start Guide
- Product Registration Card
- CD-ROM
- Security Sticker
- 5000-lumen Entry-Level Professional Installation Projector
- Remote Control
- Batteries
- Power Cord
- RGB Signal Cable
- Built-in Lens Cover
- User Manual
- Quick Start Guide
- Product Registration Card
- CD-ROM
- Security Sticker


Native Resolution: 1024 x 768
Standard Mode Brightness: 5000 lm
Graphic Mode: XGA
Maximum Projection Distance: 45.28 ft
Maximum Resolution: 1600 x 1200
Contrast Ratio: 4,000:1
Diagonal Image Size: 25" to 300"
Throw Ratio: 1.3 to 2.2
Low Mode Brightness: 3000 lm
Minimum Projection Distance: 23.62"
Maximum Vertical Sync: 120 Hz
Maximum Horizontal Sync: 100 kHz

Video

Video Signal Standard: HDTV
Video Signal Format:
- SECAM
- NTSC
- PAL
Input Scan Format: 1080p
Output Scan Format: 720p

Lamp

Number of Lamps: 1
Normal Mode Lamp Life: 3500 Hour
Economy Mode Lamp Life: 6000 Hour
Lamp Power: 270 W
Lamp Type: AC

Power Description

Operating Power Consumption: 357 W
Standby Power Consumption: 200 mW
Input Voltage:
- 110 V AC
- 220 V AC

Lens

Manual Zoom Factor: 1.7x
Minimum Lens Aperture: F/1.7
Maximum Lens Aperture: F/2.1
Zoom Type: Manual Zoom

Audio

Number of Speakers: 1
Speaker Output Power: 16 W
Speaker Output Mode: Mono

Warranty

Limited Warranty: 3 Year
Parts Warranty/Labor: 1 Year - Lamp

Network & Communication

Ethernet Technology: Ethernet

Extended Details

Barcode Discount

NEC Products Part #: NP-P501X | SKU: 262665
