- Hands-free scanning of 1D barcodes
- SE966 scan engine provides superior scanning performance and the ability to read even damaged or poorly printed barcodes
- Wide working range from near contact to 15 ft
- Accommodates wide range of gloved and ungloved hand sizes
- Die cast zinc scan engine chassis, single board construction, scan engine isolation provides superior impact protection for scan engine
- Separate finger strap assembly
- Swivel feature enables easy switching from right to left hand use
RS419 Ring Specs
Hands-free scanning
Ring scanner design frees operator's hands to move packages,
products or materials, helping to improve efficiency and
productivity.
SE966 scan engine
Provides superior
scanning performance and the ability to read even damaged or poorly
printed barcodes.
Wide working range
Patented Adaptive
Scanning technology enables scanning from near contact to 15 ft./
4.5 m for increased worker productivity.
Superior trigger ergonomics
Accommodates
wide range of gloved and ungloved hand sizes; large accessible
trigger makes it easier to use over long periods.
Die cast zinc scan engine chassis, single board
construction, scan engine isolation
Provides superior
impact protection for scan engine.
Separate finger strap assembly
Improves
hygiene and personalization; easy to replace
Swivel feature
Enables easy switching from
right to left hand use.
Performance Characteristics
Technology
Laser
Light source
650nm LASER 1.7mW (peak power)
Pitch2
± 65° from normal
Roll3
+/-35 degrees from vertical
Yaw4
± 40° from normal
Physical Characteristics
Dimensions (HxWxD)
1.9 x 1.4 x 1.9 in. (4.8 x 3.6 x 4.8 cm) H x W x D
Weight
2.0 oz. (56.7 g)
Corded
Yes
Power
Voltage and current5
3.1 VDC to 3.6 VDC; 92 mA typical/121 mA max (one LED on)
Regulatory Specifications
Electrical safety
CSA C22.2 No. 60950-1, EN 60950-1, IEC 60950-1
EMI/RFI
FCC Part 15 Class B, ICE S-003 Class B, EN 61000-3-2, EN 61000-3-3,
CI SPR 22 Class B, CI SPR 24
Laser safety6
IEC /Class 2/FDA ll in accordance with IEC 60825-1: (Ed 2.0)/EN
60825-1:2007
User Environment
Operating temperature
-22° to 140° F (-30° to 60° C)
Storage temperature
-25° to 160° F (-40° to 70° C)
Environmental sealing
IP54
Drop specification
Multiple 4 ft./1.2 m drops to concrete; from -4° to 122° F/-20° to
50° C; multiple 3 ft./0.9 m drops to concrete at -22° F/-30° C
Ambient lighting tolerance7
Tolerant to typical artificial indoor and natural outdoor (direct
sunlight) lighting conditions. Fluorescent, Incandescent, Mercury
Vapor, Sodium Vapor, LED : 450 Ft Candles (4, 844 Lux) Sunlight:
8000 Ft Candles (86, 111 Lux)
Refine Your Options
Shop By
Shopping Options
-
Scanner Capability
-
Ruggedness
-
Scanner Type
-
Included Cables
-

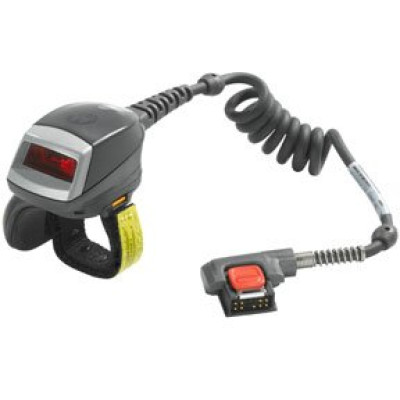

Motorola RS419 Ring Barcode Scanner
Part #: RS419-HP2000FSR | SKU: 185433Barcode Scanners - Motorola RS419 - Ring scanner to cable to arm-worn WT4X90 and WT41N0 - with HP engine and freezer ratingMSRP: $1,051.79 Price: $892.96 -
Motorola RS419 Ring Barcode Scanner
Part #: RS419-HP2000FLR | SKU: 187771Barcode Scanners - Motorola RS419 - Ring scanner to cable to waist-worn WT4X90 and WT41N0 - with HP engine and freezer ratingMSRP: $1,068.48 Price: $913.74
Recommended Accessories for Model: Motorola RS419 Ring Barcode Scanner
-
Motorola RS419 Accessory
Part #: SG-RS419-FGSTP-02R | SKU: 398938RS419 Replacement Finger StrapPrice: $23.42 -
Motorola RS419 Spare Parts
Part #: SG-RS419-TRGAS-01R | SKU: 187772RS419 Ring Scanner, Trigger Assembly For The RS419$32.88 -
Motorola RS419 Spare Parts
Part #: SG-RS419-FGSTP-01R | SKU: 206997RS419 Replacement Finger Strap
