Additional Information
| Color | No |
|---|---|
| Connection | No |
| Connectivity | No |
| Form Factor | No |
| Included Cables | WT4090 Interface Cable |
| Manufacturer | No |
| Model Name | RS507 Ring |
| Product Condition | No |
| Ruggedness | General Purpose |
| Scan Pattern | No |
| Scanner Capability | 2D |
| Scanner Type | No |

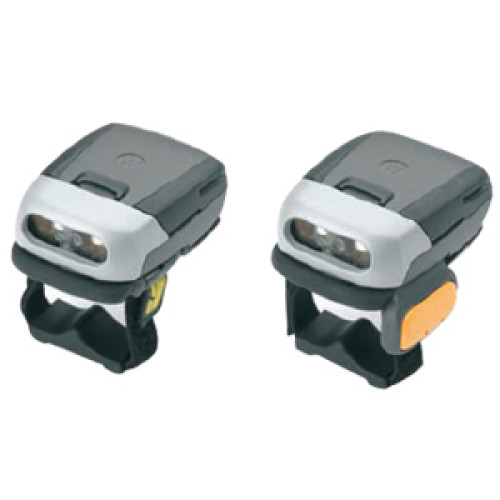

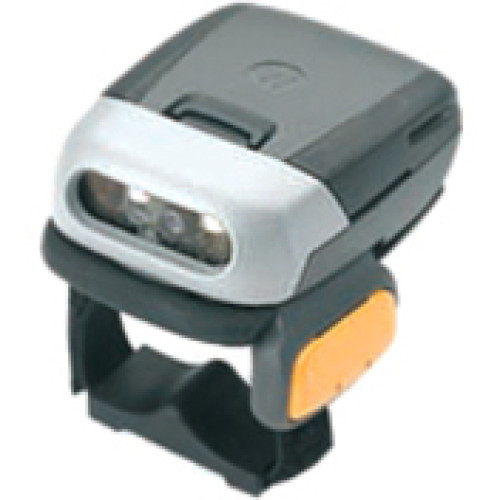

RS507 Ring Specs
Technical Information
- Barcode Dimension:
- 1D
- 2D
- Scan Pattern: Omni-directional
- Connectivity Technology: Wireless
- Scanning Distance: 24"
- Light Source: LED
- Image Sensor: Imager
- Barcode Symbology Supported:
- 1D:
- Codabar
- Code 39
- Code 128
- EAN-13
- EAN-8
- Interleaved 2 of 5
- UPC-A and UPC-E
- Code 11
- Code 32 Pharmaceutical (PARAF)
- Code 93
- MSI
- Reduced Space Symbology (RSS-14, RSS Limited, RSS Expanded)
- Straight 2 of 5 IATA (Two-Bar Start/Stop)
- Straight 2 of 5 Industrial (Three-Bar Start/Stop)
- Trioptic
- UPC-E1
- 2D:
- 4-CB (4-State Customer Barcode)
- Aztec
- MicroPDF417
- PDF417
- MaxiCode Australian Post
- British Post (4 State Code And Infomail)
- Data Matrix
- Japanese Post
- KIX (Netherlands) Post
- Planet Code
- Postnet
- QR Code
- EAN/UCC Composite
- TCIF Linked Code 39 (TLC39)
- 1D:
- Codabar
- Code 39
- Code 128
- EAN-13
- EAN-8
- Interleaved 2 of 5
- UPC-A and UPC-E
- Code 11
- Code 32 Pharmaceutical (PARAF)
- Code 93
- MSI
- Reduced Space Symbology (RSS-14, RSS Limited, RSS Expanded)
- Straight 2 of 5 IATA (Two-Bar Start/Stop)
- Straight 2 of 5 Industrial (Three-Bar Start/Stop)
- Trioptic
- UPC-E1
- 2D:
- 4-CB (4-State Customer Barcode)
- Aztec
- MicroPDF417
- PDF417
- MaxiCode Australian Post
- British Post (4 State Code And Infomail)
- Data Matrix
- Japanese Post
- KIX (Netherlands) Post
- Planet Code
- Postnet
- QR Code
- EAN/UCC Composite
- TCIF Linked Code 39 (TLC39)
General Information
- Product Type: Wearable Barcode Scanner
- Brand Name: Motorola
- Manufacturer: Motorola, Inc
- Product Model: RS507
- Product Name: RS507 Wearable Barcode Reader
Physical Characteristics
- Height: 1.2"
- Width: 2.1"
- Depth: 2.9"
- Weight (Approximate): 4.80 oz
Other
- Green Compliant: Yes
- Green Compliance Certificate/Authority: RoHS
Network & Communication
- Bluetooth: Yes
Battery Information
- Battery Chemistry: Lithium Ion (Li-Ion)
