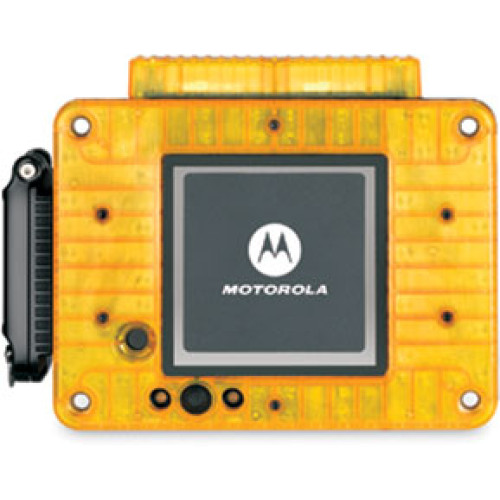

Motorola RD5000 RFID Reader
Part #: RD5041-20511010-US | SKU: 23786

The Motorola RD5000 facilitates implementation of RFID read points in new areas of the enterprise, expands visibility of product movement and enables new productivity-saving applications. The integrated 802.11a/b/g WLAN radios provide flexible, reliable connection with wireless LAN for real-time inventory visibility, features unique to Motorola that deliver superior and reliable wireless connectivity. The integrated Bluetooth enables wireless communication between RD5000 and an on-board vehicle computer for a completely cable-free solution, which ensures constant connection to the onboard computer - even in areas wherethere is no reliable WLAN connection. The RD5000 also includes an integrated rugged antenna that eliminates the need for separate antennas, cables, mounting brackets and connectors to further simplify installation and reduce maintenance.

Motorola RD5000 RFID Reader

Part Details: Zebra RD5000 RFID Reader - 10 ft Read Distance

Need a different version of the Motorola RD5000 RFID Reader? View all 2 configurations

Additional Information

Manufacturer	No
Model Name	RD5000
Product Condition	No
Style	Handheld

RD5000 Specs (pdf)

General Information

Product Type: RFID Reader
Brand Name: Motorola
Manufacturer: Motorola, Inc
Product Model: RD5000
Product Name: RD5000 RFID Reader

Physical Characteristics

Height: 2"
Width: 9"
Depth: 7"
Weight (Approximate): 3 lb

Other

Additional Information:
- Integrated Bluetooth
- Integrated rugged antenna
- Interactive sensing technologies
- Completely sealed against dust and jets of water, ensuring reliable operation in nearly any environment, from the warehouse to the yard and more
- Intel XScale 624 MHz PXA270 processor and enhanced memory architecture enable easy integration into your existing technology environment
- Microsoft Windows CE 5.0: Advanced operating system provides robust application support
- Memory: 64 MB/64 MB
- Charging Temperature: 32° to 104° F (0° to 40° C)
- Humidity 5% to 95% non-condensing
- Nominal Read Range: 10 ft./3.04 m with Motorola RFX6000 4x4 tag optimally oriented
- Output Power: 1W conducted (1.4W EIRP with integrated antenna)
- RFID Frequency Range: USA FCC Part 15.247, 15.205, 15.209: Canada RSS-210
- Data Rate: 802.11a: Up to 54 Mbps; 802.11b: up to 11 Mbps;802.11g: up to 54 Mbps

Warranty

Limited Warranty: 1 Year
