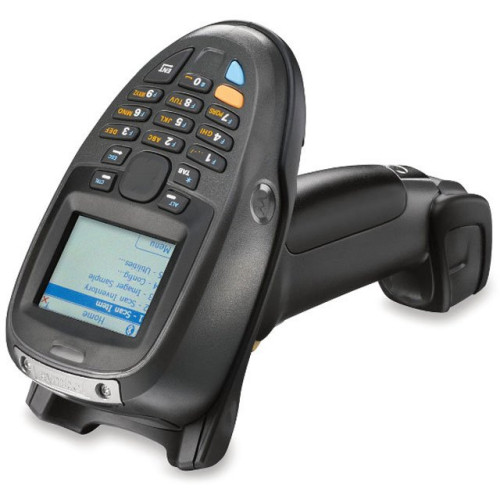

Motorola MT2070 Mobile Computer
Part #: MT2070-DP4D62370WR | SKU: 253390

The Motorola MT2070 represents another industry first from Motorola - the marriage of the simplicity of a scanner with the brainpower of a mobile computer and an ultra-ergonomic gun-style form factor. The result is a handheld mobile terminal, a highly flexible device capable of streamlining many scan-intensive business processes in a wide variety of industries - from the front to back door in manufacturing plants, retail establishments, warehouses, hospitals and more. The easy-to-use affordable mobile terminal offers a unique hybrid design, able to function as both a scanner and a mobile computer throughout the business day. The MT2070 can be utilized right out of the box as a scanner - either tethered to a point of sale (POS), laptop or other computing system capable of enabling inventory and other scan-intensive applications anywhere in the enterprise.

Motorola MT2070 Mobile Computer

Part Details: Bluetooth/Batch terminal with DPM Imager, CE, MCL, 320 x 240 color display, 21 key, twilight black, WW (Use either RS-232 cable CBA-R12-S07PAR or USB cable CBA-U12-S07PAR plus 12v PS PWRS-14000-148R for tethered mode for this configuration)

Additional Information

Manufacturer No
Model Name MT2070
Product Condition No

Technical Information

  • Connectivity Technology: Batch
  • Image Sensor: Imager
  • Electrostatic Discharge (ESD):
    • +/-15 kV DC Air Discharge
    • +/-8 kV DC Direct Discharge
    • +/-8 kV DC Indirect Discharge
  • Drop Specification: 72" To Concrete @ -4°F (-20°C) to 122°F (50°C)
  • Barcode Symbology Supported:
    • 1D:
    • UPC/EAN (UPCA/UPCE/UPCE1/EAN-8/EAN-13/JAN-8/JAN-13 plus supplements)
    • ISBN (Bookland)
    • Code 39 (Standard, Full ASCII, UCC/EAN-128, ISBT-128 Concatenated)
    • Code 93
    • Codabar/NW7
    • MSI Plessey
    • I 2 of 5 (Interleaved 2 of 5 / ITF, Discrete 2 of 5, IATA, Chinese 2 of 5)
    • GS1 DataBar (Omnidirectional, Truncated, Stacked, Stacked Omnidirectional, Limited, Expanded, Expanded Stacked, Inverse)
    • Base 32 (Italian Pharmacode)
    • 2D:
    • TLC-39
    • Aztec (Standard, Inverse)
    • Maxicode
    • DataMatrix/ECC 200 (Standard, Inverse)
    • QR code (Standard, Inverse, Micro)
    • PDF417:
    • PDF417 (Standard, Macro)
    • Composite Codes (CC-A,CC-B,CC-C)
    • Postal:
    • U.S. Postnet and Planet
    • U.K. Post
    • Japan Post
    • Australian Post
    • Netherlands KIX Code
    • Royal Mail 4 State Customer
    • upu fcs 4 State Postal
    • USPS 4CB

General Information

  • Product Type: Handheld Terminal
  • Product Series: MT2000
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: MT2070
  • Product Name: MT2070 Handheld Terminal

Physical Characteristics

  • Height: 7.8"
  • Width: 3.1"
  • Depth: 5"
  • Weight (Approximate): 13.50 oz

Interfaces/Ports

  • USB: Yes
  • Serial: Yes

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Certifications & Standards:
    • IP54
    • FIPS 140-2
    • Electrical Safety:
    • Certified to UL60950-1
    • CSA C22.2 No. 60950-1
    • EN60950-1
    • EMI/RFI:
    • FCC Part 2 (SAR)
    • FCC Part 15 Subpart B - Class B
    • RSS210
    • EN 301-489-1, 489-17
    • Laser Safety:
    • IEC Class 2
    • FDA Class II in Accordance with IEC60825-1
    • EN60825-1

Processor & Chipset

  • Processor Manufacturer: Intel
  • Processor Speed: 312 MHz
  • Processor Type: XScale PXA270

Display & Graphics

  • Screen Mode: QVGA
  • Display Color: Color
  • Screen Resolution: 320 x 240

Keyboard/Keypad

  • Keyboard Type: Numeric
  • Number of Keys: 21

Memory

  • Flash Memory: 64 MB
  • Standard Memory: 64 MB

Battery Information

  • Battery Capacity: 2400 mAh
  • Battery Chemistry: Lithium Ion (Li-Ion)

Network & Communication

  • Bluetooth: Yes

Warranty

  • Limited Warranty: 3 Year

Software

  • Operating System: Windows CE 5.0
Extended Details
