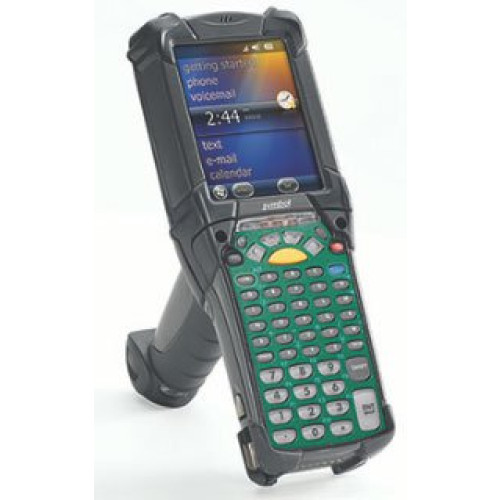

Motorola MC9190-G Mobile Computer
Motorola Barcode Scanner and Mobile Handheld Computer

Motorola MC9190-G Mobile Computer
Part #: MC9190-G90SWHYA6WR | SKU: 156836

When you need to scan bar codes and collect data in the harshest of environments, the MC9190-G is ready for the job. Whether your workers are managing inventory in industrial warehouses, searching for materials in subzero temperatures out in the yard or repairing equipment on a military base in a hot sandy desert, the MC9190-G helps get the job done right and fast.

Motorola MC9190-G Mobile Computer

Part Details: MC9190-G, Wi-Fi (802.11a/b/g), Long Range 2D Imager Windows CE 6.0, 256MB RAM/1GB ROM, 52-3270 keypad, Bluetooth. Interface cables and charging cradle sold separately. Single slot charging cradle kit (Part# CRD9000-110SES). Quad slot charging cradle kit (Part # CRD9101-411CES) requires AC line cord (Part# 23844-00-00R).
Need a different version of the Motorola MC9190-G Mobile Computer? View all 134 configurations

Additional Information

Manufacturer No
Model Name MC9190-G
Product Condition No
Style No
MC9190-G Specs MC9190-G Specs (pdf)

Technical Information

  • Scanner Range: Long Range
  • Connectivity Technology: Wireless
  • Image Sensor: Imager
  • Electrostatic Discharge (ESD):
    • +/-15 kV DC Air Discharge
    • +/-8 kV DC Direct Discharge
    • +/-8 kV DC Indirect Discharge
  • Drop Specification: 72" To Concrete @ -4°F (-20°C) to 122°F (50°C)
  • Barcode Symbology Supported:
    • 1D
    • 2D

General Information

  • Product Type: Handheld Terminal
  • Product Series: MC9000
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: MC9190-G
  • Product Name: MC9190-G Mobile Computer

Physical Characteristics

  • Height: 9.1"
  • Width: 3.6"
  • Depth: 7.6"
  • Weight (Approximate): 1.69 lb

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Package Contents:
    • MC9190-G Mobile Computer
    • Battery
    • MC9190-G Mobile Computer
    • Battery
  • Certifications & Standards:
    • Electrical Safety
    • Certified to UL60950-1
    • CSA C22.2 No. 60950-1
    • EN60950-1/IEC60950-1
    • WLAN and Bluetooth
    • FCC Part 15.247, 15.407
    • RF Exposure
    • FCC Part 2
    • FCC OET Bulletin 65
    • Supplement C
    • EMI/RFI
    • FCC Part 15
    • Laser Safety
    • EN 60825-1
    • IEC 60825-1
    • IEC Class 2/FDA Class II
    • LED Safety
    • IEC/EN60825-1
    • IEC/EN62471

Network & Communication

  • Bluetooth: Yes
  • Wireless LAN: Yes
  • Antenna Form Factor: Internal
  • Wireless LAN Standard: IEEE 802.11a/b/g
  • Wireless Security:
    • WPA2 Enterprise
    • 802.1x
    • EAP-TLS
    • TTLS (CHAP, MS-CHAP, MS-CHAPv2, PAP or MD5)
    • PEAP (TLS, MSCHAPv2, EAP-GTC)
    • LEAP
    • EAP-FAST (TLS, MS-CHAPv2, EAPGTC)
    • WPA2/AES
    • CCX v4
    • FIPS 140-2
    • IPv6

Memory

  • Flash Memory: 1 GB
  • Standard Memory: 256 MB
  • Memory Card Slot: Yes
  • Memory Card Supported:
    • MultiMediaCard (MMC)
    • Secure Digital (SD) Card

Display & Graphics

  • Display Screen Type: LCD
  • Screen Mode: VGA
  • Screen Size: 3.7"
  • Display Color: Color
  • Screen Resolution: 640 x 480

Battery Information

  • Battery Capacity: 2200 mAh
  • Battery Included: Yes
  • Battery Chemistry: Lithium Ion (Li-Ion)

Processor & Chipset

  • Processor Manufacturer: Marvell
  • Processor Speed: 806 MHz
  • Processor Type: PXA320

Software

  • Operating System: Windows CE 6.0

Keyboard/Keypad

  • Number of Keys: 53

Warranty

  • Limited Warranty: 1 Year

Touchscreen Information

  • Touchscreen: Yes
Extended Details
