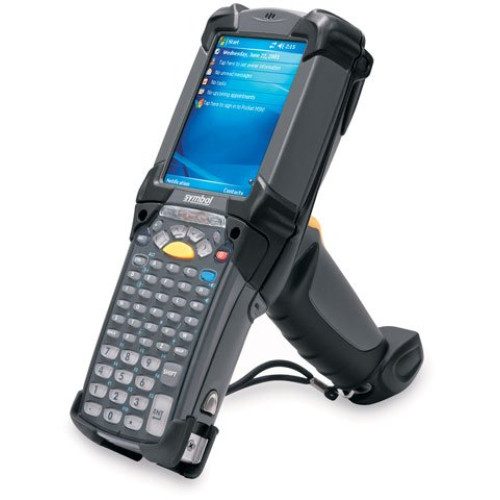

Motorola MC9090-G RFID Reader
Motorola Barcode Scanner and Mobile Handheld Computer

Motorola MC9090-G RFID Reader
Part #: MC9090-GW0HJEFR71S | SKU: 62337

The MC9000-G Series from Symbol Technologies is an elegant, ruggedized mobile computer for use in bar code scanning-intensive applications throughout your enterprise. The MC9000-G gives your organization real-time access to mission-critical information from key points in your supply chain.

Motorola MC9090-G RFID Reader

Part Details: MC9090-Gun RFID Wireless Terminal (802.11a/b/g, DPM, Color, 64MB/128MB, 53 key Keypad, Bluetooth and Windows Mobile 5.0.0)
Need a different version of the Motorola MC9090-G Mobile Computer? View all 173 configurations

Additional Information

Manufacturer No
Model Name MC9090-G
Product Condition No
Style Handheld
MC9090-G Specs MC9090-G Specs (pdf)

General Information

  • Product Type: Handheld Terminal
  • Product Series: MC9000
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: MC9090-G
  • Product Name: MC9090-G Handheld Terminal

Technical Information

  • Connectivity Technology: Wireless
  • Electrostatic Discharge (ESD):
    • +/-15 kV DC Air Discharge
    • +/-8 kV DC Direct Discharge
    • +/-8 kV DC Indirect Discharge
  • Drop Specification: 72" To Concrete

Physical Characteristics

  • Height: 7.6"
  • Width: 3.6"
  • Length: 9.1"
  • Weight (Approximate): 1.56 lb

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Certifications & Standards:
    • CE
    • IP64
    • Electrical Safety:
    • UL60950-1
    • CSA C22.2 No. 60950-1
    • EN60950-1
    • IEC 60950-1
    • EMI/RFI Radio
    • FFC Part2
    • FCC Part15
    • RSS210
    • EN 300 328
    • EN 301 487
    • EN55022
    • EN55024
    • Laser Safety:
    • IEC Class2/FDA Class II in accordance with IEC60825-1/EN60825-1
    • 21CFR1040.10

RFID

  • Maximum Read Distance: 10 ft
  • Maximum Write Distance: 24"
  • Maximum Coverage Angle: 70°
  • Maximum Operating Frequency: 928 MHz
  • Minimum Read Distance: 2.40"
  • Minimum Write Distance: 12"
  • Minimum Operating Frequency: 902 MHz

Memory

  • Flash Memory: 128 MB
  • Standard Memory: 64 MB
  • Memory Card Slot: Yes
  • Memory Card Supported:
    • MultiMediaCard (MMC)
    • Secure Digital (SD) Card

Network & Communication

  • Bluetooth: Yes
  • Wireless LAN: Yes
  • Antenna Form Factor: Internal
  • Wireless LAN Standard: IEEE 802.11a/b/g

Display & Graphics

  • Screen Mode: QVGA
  • Screen Size: 3.7"
  • Display Color: Color

Processor & Chipset

  • Processor Manufacturer: Intel
  • Processor Speed: 624 MHz
  • Processor Type: XScale

Battery Information

  • Battery Capacity: 2200 mAh
  • Battery Chemistry: Lithium Ion (Li-Ion)

Keyboard/Keypad

  • Number of Keys: 53

Touchscreen Information

  • Touchscreen: Yes

Warranty

  • Limited Warranty: 1 Year

Software

  • Operating System: Windows Mobile 5.0
Extended Details
