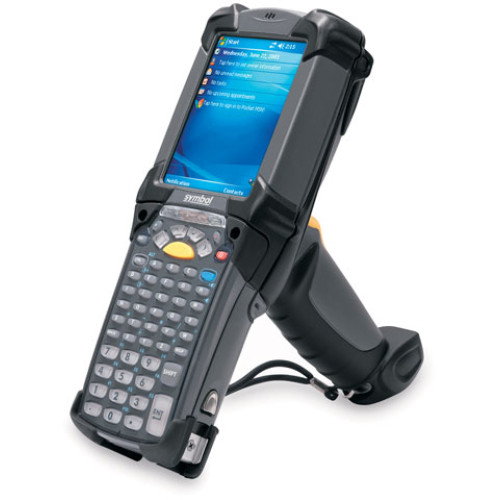

Motorola MC9090-G Mobile Computer
Motorola Barcode Scanner and Mobile Handheld Computer

Motorola MC9090-G Mobile Computer
Part #: MC9090-GK0JBJGA2WR | SKU: 99966

The MC9000-G Series from Symbol Technologies is an elegant, ruggedized mobile computer for use in bar code scanning-intensive applications throughout your enterprise. The MC9000-G gives your organization real-time access to mission-critical information from key points in your supply chain.

Motorola MC9090-G Mobile Computer

Part Details: MC90X0 Wireless Gun Terminal, Term Imager Mono 64m 53-5250 CE 5.0 Bluetooth Term Imager Mono 64m
Need a different version of the Motorola MC9090-G Mobile Computer? View all 173 configurations

Additional Information

Data Collection Type Wireless
Display Resolution No
Drop Rating No
IP Rating No
Keypad 53 Keys
Manufacturer No
Model Name MC9090-G
Network Connectivity 802.11a, 802.11g, Bluetooth
Operating System No
Operating Temperature No
Processor 624 MHz Intel PXA270
Product Condition No
RAM Memory No
Scanner Capability 1D
Scanner Type No
Style No
MC9090-G Specs MC9090-G Specs (pdf)

Technical Information

  • Scanner Range: Standard Range
  • Connectivity Technology: Wireless
  • Image Sensor: Imager
  • Electrostatic Discharge (ESD):
    • +/-15 kV DC Air Discharge
    • +/-8 kV DC Direct Discharge
    • +/-8 kV DC Indirect Discharge
  • Drop Specification: 72" To Concrete @ -4°F (-20°C) to 122°F (50°C)
  • Barcode Symbology Supported:
    • Codabar
    • Code 11
    • Code 39
    • Code 93
    • Code 128
    • Composite AB
    • Composite C
    • Coupon Code
    • Data Matrix
    • Discrete 2 of 5
    • Dutch Kix
    • EAN-8
    • EAN-13
    • Interleaved 2 of 5
    • Macro Micro PDF-417
    • Macro PDF-417
    • Micro PDF-417
    • Maxi Code
    • MSI
    • PDF-417
    • QR Code
    • RSS Expanded
    • RSS Limited
    • RSS-14
    • TLC39
    • Trioptic 39
    • UPC/EAN supplementals
    • UPCA
    • UPCE
    • US Planet
    • US Postnet
    • Webcode
    • Australian 4-state
    • Canadian 4-state
    • Japanese 4-state
    • UK 4-state

General Information

  • Product Type: Handheld Terminal
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: MC9090-G
  • Product Name: MC9090-G Mobile Computer

Physical Characteristics

  • Height: 7.6"
  • Width: 3.6"
  • Length: 9.1"
  • Weight (Approximate): 1.56 lb

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Package Contents:
    • MC9090-G Mobile Computer
    • Battery
    • Hand Strap
    • Stylus
    • BT Explorer
    • Regulatory Guide
    • Quick Start Guide
    • MC9090-G Mobile Computer
    • Battery
    • Hand Strap
    • Stylus
    • BT Explorer
    • Regulatory Guide
    • Quick Start Guide
  • Certifications & Standards:
    • Electrical Safety:
    • Certified to UL60950-1
    • CSA C22.2 No. 60950-1
    • EN60950-1
    • IEC 60950-1
    • EMI/RFI:
    • FFC Part2(SAR)
    • FCC Part 15
    • RSS210
    • EN 300 328
    • EN 301 487
    • EN55022
    • EN55024
    • Laser Safety:
    • IEC Class2/FDA Class II in accordance with IEC60825-1/EN60825-1
  • Additional Information:
    • Region: Worldwide
    • Environmental Sealing: IP64 (electronic enclosure, display and keypad)
    • Tumble: 2,000 one-meter tumbles at room temperature (4,000 drops)
    • Keypad: 5250

Network & Communication

  • Bluetooth: Yes
  • Wireless LAN: Yes
  • Antenna Form Factor: Internal
  • Wireless LAN Standard: IEEE 802.11a/b/g
  • Wireless Security:
    • AES
    • LEAP
    • PEAP (MS-CHAP v2)
    • PEAP-TLS
    • TKIP
    • TLS
    • TTLS (CHAP)
    • TTLS (MS-CHAP)
    • TTLS (MS-CHAP v2)
    • TTLS-MD5
    • TTLS-PAP
    • WEP 40 bit
    • WEP 128 bit

Memory

  • Flash Memory: 64 MB
  • Standard Memory: 64 MB
  • Memory Card Slot: Yes
  • Memory Card Supported:
    • MultiMediaCard (MMC)
    • Secure Digital (SD) Card

Display & Graphics

  • Screen Mode: QVGA
  • Screen Size: 3.8"
  • Display Color: Monochrome
  • Screen Resolution: 320 x 240

Processor & Chipset

  • Processor Manufacturer: Intel
  • Processor Speed: 624 MHz
  • Processor Type: XScale

Battery Information

  • Battery Capacity: 2200 mAh
  • Battery Included: Yes
  • Battery Chemistry: Lithium Ion (Li-Ion)

Software

  • Operating System: Windows CE 5.0

Keyboard/Keypad

  • Number of Keys: 53

Warranty

  • Limited Warranty: 1 Year

Touchscreen Information

  • Touchscreen: Yes
Extended Details
