Additional Information
| Manufacturer | No |
|---|---|

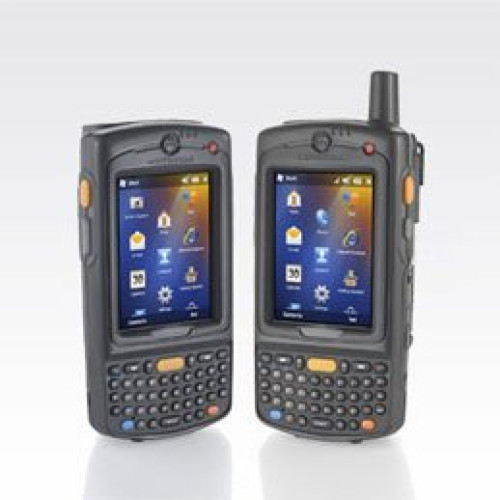

| Model Name | MC75A |
| Product Condition | No |
MC75A Specs
Technical Information
- Connectivity Technology: Wireless
- Image Sensor: Imager
- Electrostatic Discharge (ESD):
- +/-15 kV DC Air Discharge
- +/-8 kV DC Direct Discharge
- Drop Specification:
- 60" To Concrete
- 48" To Concrete @ 14°F (-10°C) to 122°F (50°C)
- Barcode Symbology Supported: 2D
General Information
- Product Type: Handheld Terminal
- Brand Name: Motorola
- Manufacturer: Motorola, Inc
- Product Model: MC75A
- Product Name: MC75A Handheld Terminal
Physical Characteristics
- Width: 3.3"
- Depth: 1.7"
- Length: 7"
- Weight (Approximate): 14.92 oz
Other
- Green Compliant: Yes
- Green Compliance Certificate/Authority: RoHS
- Package Contents:
- MC75A Handheld Terminal
- Lithium Ion Battery
- MC75A Handheld Terminal
- Lithium Ion Battery
- Certifications & Standards:
- Wi-Fi Certified
- FIPS 140-2 Certified
- CCXv4 Certified
- MIL-STD 810G
- Electrical Safety:
- Certified to UL / cUL 60950-1
- IEC / EN60950-1
- WLAN and Bluetooth:
- <div style="margin-left: 2em">USA:
- FCC Part 15.247
- 15.407
- <div style="margin-left: 2em">Canada:
- RSS-210
- <div style="margin-left: 2em">EU:
- EN 300 328
- EN 301 893
- <div style="margin-left: 2em">Japan:
- ARIB STD-T33
- ARIB STD-T66
- ARIB STD-T71
- <div style="margin-left: 2em">Australia:
- AS/NZS 4268
- <p>RF Exposure:
- <div style="margin-left: 2em">USA:
- FCC Part 2
- FCC OET Bulletin 65 Supplement C
- <div style="margin-left: 2em">Canada:
- RSS-102
- <div style="margin-left: 2em">EU:
- EN 50360
- <div style="margin-left: 2em">Australia:
- Radiocommunications Standard 2003
- <p>EMI/RFI:
- <div style="margin-left: 2em">North America:
- FCC Part 15
- Class B
- <div style="margin-left: 2em">Canada:
- ICES 003 Class B
- <div style="margin-left: 2em">EU:
- EN55022 Class B
- EN 301 489-1
- EN 301 489-3
- EN 301 489-7
- EN 301 489-17
- EN 301 489-24
- EN 60601-1-2
- <div style="margin-left: 2em">Australia:
- AS/NZS CISPRA-22
Network & Communication
- Bluetooth: Yes
- Wireless LAN: Yes
- Antenna Form Factor: External
- Infrared: Yes
- Cellular Network Supported: CDMA
- Wireless LAN Standard: IEEE 802.11a/b/g
- GPS: Yes
- Cellular Data Connectivity Technology: EVDO
- Wireless Security:
- WPA2
- WEP (40 or 128 bit)
- TKIP
- TLS
- TTLS (MS-CHAP)
- TTLS (MS-CHAP v2)
- TTLS (CHAP)
- TTLS-MD5
- TTLS-PAP
- PEAP-TLS
- PEAP (MS-CHAP v2)
- AES
- LEAP
Memory
- Flash Memory: 1 GB
- Standard Memory: 256 MB
- Memory Card Slot: Yes
- Memory Card Supported:
- Secure Digital High Capacity (SDHC)
- Secure Digital (SD) Card
Display & Graphics
- Display Screen Type: LCD
- Screen Mode: QVGA
- Screen Size: 3.5"
- Display Color: Color
- Screen Resolution: 640 x 480
Processor & Chipset
- Processor Manufacturer: Intel
- Processor Speed: 806 MHz
- Processor Type: XScale
Battery Information
- Battery Capacity: 3600 mAh
- Battery Included: Yes
- Battery Chemistry: Lithium Ion (Li-Ion)
Touchscreen Information
- Touchscreen: Yes
Warranty
- Limited Warranty: 1 Year
Software
- Operating System: Windows Mobile 6.5
Keyboard/Keypad
- Keyboard Layout: QWERTY
