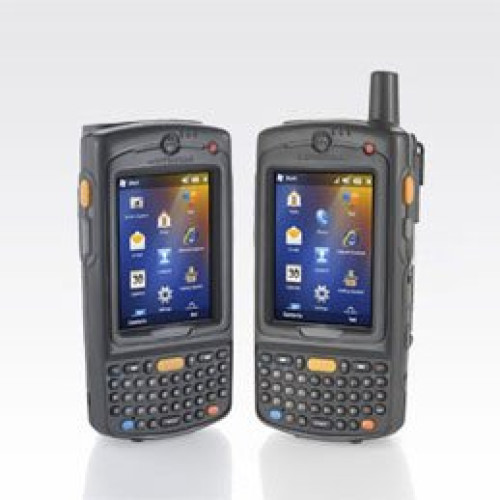

Motorola MC75A Mobile Computer
Motorola Barcode Scanner and Mobile Handheld Computer

Motorola MC75A Mobile Computer
Part #: MC75A0-P30SWQQA0GR | SKU: 116432

The 3.5G Motorola MC75A, one of the world's premium EDAs, offers more features and functionality, in a field-proven rugged form factor, than any other device in its class. The turbocharged MC75A addresses business critical mobility needs by maximizing processing power, rugged design, application flexibility, data capture capabilities, connectivity options, security and manageability - all in one device. Two options (3.5G WWAN/WLAN and WLAN only) enable enterprises to standardize on a single EDA to support workers inside and outside the four walls. Add a field-proven ergonomic design that is easy-to-carry and easy to use, and you have maximum value in a minimum footprint, all at the right price.

Motorola MC75A Mobile Computer

Part Details: Mobile Computer - Wi-Fi (802.11a/b/g) - 2D Imager Scanner - Windows Mobile 6.5 - 256MB RAM - 1GB ROM - QWERTY Keypad - Bluetooth - Does not include required battery (Part# BTRY-KT-1R5X-MC7XR) - Cables and Charging Cradle Not Included
Need a different version of the Motorola MC75A Mobile Computer? View all 98 configurations

Additional Information

Data Collection Type Wireless
Display Resolution No
Drop Rating No
IP Rating No
Manufacturer No
Model Name MC75A
Network Connectivity 802.11a, 802.11g, Bluetooth
Operating System No
Operating Temperature No
Processor No
Product Condition No
RAM Memory No
Scanner Capability 2D
Scanner Type No
Style No
MC75A Specs MC75A Specs (pdf)

Technical Information

  • Connectivity Technology: Wireless
  • Image Sensor: Imager
  • Electrostatic Discharge (ESD):
    • +/-15 kV DC Air Discharge
    • +/-8 kV DC Direct Discharge
  • Drop Specification:
    • 48" To Concrete
    • 60" To Concrete
  • Barcode Symbology Supported: 2D

General Information

  • Product Type: Handheld Terminal
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: MC75A
  • Product Name: MC75A Handheld Terminal

Physical Characteristics

  • Height: 3.3"
  • Width: 1.7"
  • Depth: 6"
  • Weight (Approximate): 14.90 oz

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Certifications & Standards:
    • Environmental sealing:IP54
    • EMI/RFI:
    • FCC Part 15 Class B
    • ICES 003 Class B
    • EN55022 Class B
    • EN301 489-1
    • EN301 489-3
    • EN301 489-7
    • EN301 489-17
    • EN301 489-24
    • EN6060
    • AS/NZS CISPRA 2.2
    • Electrical Safety:
    • EN 60950-1
    • IEC 60950-1
    • Certified to UL / cUL 60950-1
    • Laser Safety:
    • EN 60825-1
    • IEC 60825-1
    • IEC Class2/FDA Class II
    • RF Exposure:
    • FCC Part 2
    • FCC OET Bulletin 65
    • Supplement C
    • RSS-102
    • EN 50380
    • Radio Communications Standard 2003

Network & Communication

  • Bluetooth: Yes
  • Wireless LAN: Yes
  • Antenna Form Factor: Internal
  • Wireless LAN Standard: IEEE 802.11a/b/g
  • Wireless Security:
    • WPA2
    • WEP (40 or 128 bit)
    • TKIP
    • TLS
    • TTLS (MS-CHAP)
    • TTLS (MS-CHAP v2)
    • TTLS (CHAP)
    • TTLS-MD5
    • TTLS-PAP
    • PEAP-TLS
    • PEAP (MS-CHAP v2)
    • AES
    • LEAP
    • CCX v4 Certified
    • FIPS 140-2 Certified

Display & Graphics

  • Display Screen Type: LCD
  • Screen Mode: VGA
  • Screen Size: 3.5"
  • Display Color: Color
  • Screen Resolution: 640 x 480

Memory

  • Flash Memory: 1 GB
  • Standard Memory: 256 MB
  • Memory Card Slot: Yes
  • Memory Card Supported: microSD High Capacity (microSDHC)

Processor & Chipset

  • Processor Manufacturer: Marvell
  • Processor Speed: 806 MHz
  • Processor Type: XScale

Battery Information

  • Battery Capacity: 3600 mAh
  • Battery Chemistry: Lithium Ion (Li-Ion)

Touchscreen Information

  • Touchscreen: Yes

Warranty

  • Limited Warranty: 1 Year

Software

  • Operating System: Windows Mobile 6.5

Keyboard/Keypad

  • Keyboard Layout: QWERTY
Extended Details

Recommended Accessories for Model: Motorola MC75A Mobile Computer

View All Options

Recommended Warranties for Model: Motorola MC75A Mobile Computer

  • Symbol MC75A Service Contract
    Part #: Z1BE-DCR7XX-1000 | SKU: 463550

    1 Year Zebra OneCare Service Center Essential. Does not include Comprehensive Coverage. For Part # DCR7X00-100R only
    MSRP: $70.17 Price: $67.03

  • Symbol MC75A Service Contract
    Part #: Z1BE-MC7FRP-1000 | SKU: 463620

    Zebra OneCare for Enterprise Essential - 1 Year Extended Service - Service - Carry-in - Maintenance - Parts & Labor - Physical, Electronic Service
    MSRP: $62.44 Price: $59.64

  • Symbol MC75A Service Contract
    Part #: Z1BS-DCR7X2-1C03 | SKU: 463738

    1 Year Zebra OneCare Service Center Select. Includes Comprehensive Coverage. For Part # DCR7X00-2XXR only
    MSRP: $116.56 Price: $111.34

  • Symbol MC75A Service Contract
    Part #: Z1BS-DCR7XX-1003 | SKU: 463739

    Zebra OneCare for Enterprise Select - 1 Year Extended Service - Service - Service Depot - Exchange - Physical, Electronic Service
    MSRP: $88.01 Price: $84.07

  • Symbol MC75A Service Contract
    Part #: Z1RE-MC7FRP-2C00 | SKU: 464012

    Zebra OneCare for Enterprise Essential with Comprehensive coverage - 2 Year Extended Service (Renewal) - Service - Carry-in - Maintenance - Parts & Labor - Physical, Electronic Service
    MSRP: $97.41 Price: $93.06
