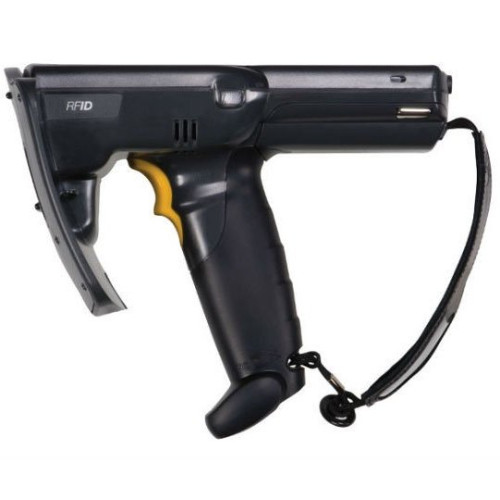

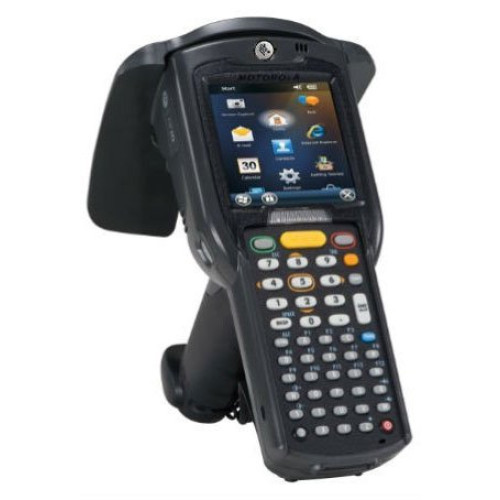

Motorola MC3190-Z RFID Reader
Part #: MC319Z-GL4H24E0W | SKU: 103352

The Motorola MC3190-Z is a new class of RFID reader bringing the benefits of RFID from industrial environments to the carpeted space. The MC3190-Z features the ergonomics required for all day comfort and ease of use.

Motorola MC3190-Z RFID Reader

Part Details: UHF RFID Reader - Wi-Fi (802.11a/b/g) - Bluetooth - 1D Laser - Windows Mobile 6.5 - 48 key Alpanumeric Keypad - 256MB RAM/1GB Flash - High Capacity Battery - Cables and Charging Cradle Not Included

Additional Information

Frequency No
Keypad Alphanumeric
Manufacturer No
Model Name MC3190-Z
Operating System No
Product Condition No
RAM Memory No
Scanner Type Laser
Style Handheld

Technical Information

  • Connectivity Technology: Wireless
  • Light Source: Laser
  • Electrostatic Discharge (ESD):
    • +/-15 kV DC Air Discharge
    • +/-8 kV DC Direct Discharge
    • +/-8 kV DC Indirect Discharge
  • Drop Specification: 48" To Concrete @ 14°F (-10°C) to 122°F (50°C)
  • Barcode Symbology Supported: 1D

General Information

  • Product Type: Handheld Terminal
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: MC3190-Z
  • Product Name: MC3190-Z Handheld Terminal

Physical Characteristics

  • Height: 7.6"
  • Width: 4.7"
  • Depth: 6.4"
  • Weight (Approximate): 1.43 lb

Other

  • Certifications & Standards:
    • CCXv4 Certified
    • FIPS140-2 Certified
    • WiFi Certified
    • IP54
    • MIL-STD 810F
    • EMI/EMC:
    • FCC Part 15 Class B
    • ICES 003 Class B
    • IEC 60601-1-2
    • EN 301 489-1
    • EN 301 489-17
    • EN 301 489-3
    • Electrical Safety:
    • UL 60950-1
    • CSA C22.2 No. 60950-1
    • IEC 60950-1
    • RF Exposure:
    • FCC Part 2
    • FCC OET Bulletin 65
    • Supplement C
    • RSS-102
    • WLAN, Bluetooth and RFID:
    • FCC Part 15.247
    • FCC Part 15.407
    • RSS-210
    • Laser Safety:
    • A21CFR1040.10
    • IEC/EN 60825-1

Network & Communication

  • Bluetooth: Yes
  • Wireless LAN: Yes
  • Wireless LAN Standard: IEEE 802.11a/b/g
  • Wireless Security:
    • WPA2
    • 802.1x
    • EAPTLS
    • TTLS
    • PEAP
    • LEAP
    • EAP-FAST
    • Support for IPv6

Display & Graphics

  • Screen Mode: QVGA
  • Screen Size: 3"
  • Display Color: Color
  • Screen Resolution: 320 x 320

Processor & Chipset

  • Processor Manufacturer: Marvell
  • Processor Speed: 624 MHz
  • Processor Type: XScale

Memory

  • Flash Memory: 1 GB
  • Standard Memory: 256 MB

Battery Information

  • Battery Capacity: 4400 mAh
  • Battery Chemistry: Lithium Ion (Li-Ion)

Keyboard/Keypad

  • Keyboard Type: Alphanumeric
  • Number of Keys: 48

RFID

  • Maximum Operating Frequency: 928 MHz
  • Minimum Operating Frequency: 902 MHz

Warranty

  • Limited Warranty: 1 Year

Touchscreen Information

  • Touchscreen: Yes

Software

  • Operating System: Windows Embedded Handheld 6.5.3
