Motorola Barcode Scanner and Mobile Handheld Computer

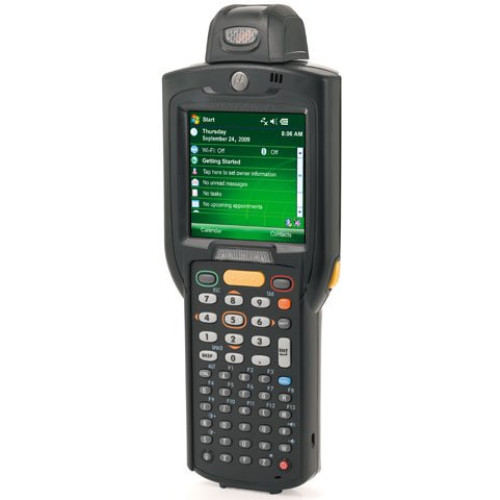

Motorola MC3190 Mobile Computer
Part #: MC3190-RLMH04E2A | SKU: 92612

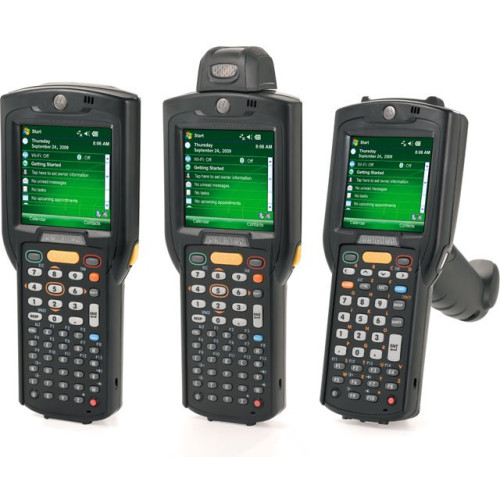

Building on the successful MC3000, the Motorola MC3100 Series brings cost-effective mobility and user comfort to key-based applications within the four walls. The rugged and ergonomic MC3100 offers advanced computing power and data capture capabilities, enhanced security and enterprise class motion sensing capabilities.

Motorola MC3190 Mobile Computer

Part Details: MC3190-R, MC3100 Wireless Mobile Computer (Wlan, Bluetooth, Rot, 1D, 20 key, 2x, Ce6, 256/1g, Rd - Not For Us)

Need a different version of the Motorola MC3190 Mobile Computer? View all 125 configurations

Additional Information

Data Collection Type	Wireless
Display Resolution	No
Drop Rating	No
IP Rating	No
Manufacturer	No
Model Name	MC3190
Network Connectivity	802.11a, 802.11g, Bluetooth
Processor	No
Product Condition	No
RAM Memory	No
Scanner Capability	1D
Scanner Type	Laser
Style	No

MC3190 Specs (pdf)

Technical Information

Connectivity Technology: Wireless
Light Source: Laser
Electrostatic Discharge (ESD):
- +/-15 kV DC Air Discharge
- +/-8 kV DC Direct Discharge
- +/-8 kV DC Indirect Discharge
Drop Specification:
- 47.24" To Concrete @ -4°F (-20°C) to 122°F (50°C)
- 59.06" To Concrete73.4°F (23°C)
Barcode Symbology Supported: 1D

General Information

Product Type: Handheld Terminal
Product Series: MC3100
Brand Name: Motorola
Manufacturer: Motorola, Inc
Product Model: MC3190
Product Name: MC3100 Series Rugged Mobile Computer

Physical Characteristics

Width: 3.3"
Depth: 1.8"
Length: 7.5"
Weight (Approximate): 14.95 oz

Other

Green Compliant: Yes
Green Compliance Certificate/Authority: RoHS
Package Contents:
- MC3100 Series Rugged Mobile Computer
- Battery
- MC3100 Series Rugged Mobile Computer
- Battery
Certifications & Standards:
- MIL-STD 810G
- IEC 68-2-32
- IP54
- EN 60529
- Electrical Safety:
- Certified to UL60950-1
- CSA C22.2No. 60950-1
- EN60950-1
- IEC 60950-1
- WLAN and Bluetooth:
- FCC Part 15.247, 15.407
- RSS-210
- EN 300 328
- EN 301 893
- ARIB STD-T33, T66, T70, T71
- AS/NZS 4268
- RF Exposure:
- FCC Part 2
- FCC OET Bulletin 65 Supplement C
- RSS-102
- EN 62311
- Radiocommunications Standard 2003
- EMI/RFI Radio Versions:
- FCC Part 15
- RSS210 Class B
- EN 301 489-1, 489-17
- Laser Safety:
- IEC Class2
- FDA Class II in Accordance with IEC60825-1
- EN60825-1

Network & Communication

Bluetooth: Yes
Wireless LAN: Yes
Antenna Form Factor: Internal
Wireless LAN Standard: IEEE 802.11a/b/g
Wireless Security:
- WPA2 (Personal or Enterprise)
- 802.1x
- EAP-TLS
- TTLS (CHAP, MS-CHAP, MS-CHAPv2, PAP or MD5)
- PEAP (TLS, MSCHAPv2, EAP-GTC)
- LEAP
- EAP-FAST (TLS, MS-CHAPv2, EAP-GTC)
- CCXv4 Certified
- Support for IPv6
- FIPS140-2 Certified

Memory

Flash Memory: 1 GB
Standard Memory: 256 MB
Memory Card Slot: Yes
Memory Card Supported:
- MultiMediaCard (MMC)
- Secure Digital (SD) Card

Display & Graphics

Display Screen Type: LCD
Screen Size: 3"
Display Color: Color
Screen Resolution: 320 x 320

Battery Information

Battery Capacity: 4800 mAh
Battery Included: Yes
Battery Chemistry: Lithium Ion (Li-Ion)

Processor & Chipset

Processor Manufacturer: Marvell
Processor Speed: 624 MHz
Processor Type: PXA320

Touchscreen Information

Touchscreen: Yes

Keyboard/Keypad

Number of Keys: 20

Warranty

Limited Warranty: 1 Year

Software

Operating System: Windows CE 6.0

Extended Details
