Motorola Barcode Scanner and Mobile Handheld Computer

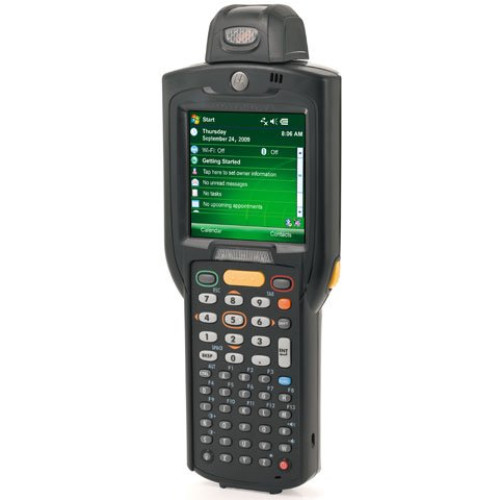

Motorola MC3190 Mobile Computer
Part #: MC3190-RL3S04E0A | SKU: MOT90309

Building on the successful MC3000, the Motorola MC3100 Series brings cost-effective mobility and user comfort to key-based applications within the four walls. The rugged and ergonomic MC3100 offers advanced computing power and data capture capabilities, enhanced security and enterprise class motion sensing capabilities.

Motorola MC3190 Mobile Computer

Part Details: 802.11a/b/g, Bluetooth, Full Audio, Rotating Head, 1D Laser SE950, Color-touch display, 38 key, Standard Capacity Battery, CE 6.0 Pro, 256MB RAM/1GB ROM, English, World Wide

Need a different version of the Motorola MC3190 Mobile Computer? View all 125 configurations

Additional Information

Data Collection Type	Wireless
Display Resolution	No
Drop Rating	No
IP Rating	No
Manufacturer	Motorola
Model Name	MC3190
Network Connectivity	Bluetooth, Wi-Fi 3: 802.11g, Wi-Fi 2: 802.11a
Operating System	Windows CE 6.0
Operating Temperature	No
Processor	No
Product Condition	No
RAM Memory	No
Scanner Capability	1D
Scanner Type	Laser
Style	Full-size

Motorola MC3190 Specs (pdf)

Technical Information

Connectivity Technology: Wireless
Light Source: Laser
Electrostatic Discharge (ESD):
- +/-15 kV DC Air Discharge
- +/-8 kV DC Direct Discharge
- +/-8 kV DC Indirect Discharge
Drop Specification:
- 48" To Concrete
- 60" To Concrete73.4°F (23°C)

General Information

Product Type: Handheld Terminal
Brand Name: Motorola
Manufacturer: Motorola, Inc
Product Model: MC3100
Product Name: MC3190 Handheld Terminal

Physical Characteristics

Height: 8.6"
Width: 3.3"
Depth: 1.6"
Weight (Approximate): 1.15 lb

Other

Green Compliant: Yes
Green Compliance Certificate/Authority: RoHS
Package Contents:
- MC3190 Handheld Terminal
- Lithium-Ion Battery
- MC3190 Handheld Terminal
- Lithium-Ion Battery
Certifications & Standards:
- IP54
- Laser Safety:
- IEC Class2/FDA Class II in accordance with IEC60825-1/EN60825-1
- EMI/RFI Radio Versions:
- FCC Part 15
- RSS210 Class B
- EN 301 489-1
- 489-17
- Electrical Safety:
- Certified to UL60950-1
- CSA C22.2No. 60950-1
- EN60950-1/IEC 60950-1
- WLAN and Bluetooth:
- FCC Part 15.247
- 15.407
- RSS-210
- EN 300 328
- EN 301 893
- ARIB STD-T33
- T66
- T70
- T71
- AS/NZS 4268s

Network & Communication

Bluetooth: Yes
Wireless LAN: Yes
Antenna Form Factor: Internal
Wireless LAN Standard: IEEE 802.11a/b/g
Wireless Security:
- WPA2 (Personal or Enterprise)
- 802.1x
- EAP-TLS
- TTLS (CHAP , MS-CHAP, MS-CHAPv2, PAP or MD5)
- PEAP (TLS, MSCHAPv2, EAP-GTC)
- LEAP
- EAP-FAST (TLS, MS-CHAPv2, EAP-GTC)
- CCXv4 certifed
- Support for IPv6
- FIPS140-2 Certifed

Memory

Flash Memory: 1 GB
Standard Memory: 256 MB
Memory Card Slot: Yes
Memory Card Supported: Secure Digital (SD) Card

Display & Graphics

Display Screen Type: LCD
Screen Size: 3"
Display Color: Color
Screen Resolution: 320 x 320

Battery Information

Battery Capacity: 2740 mAh
Battery Included: Yes
Battery Chemistry: Lithium Ion (Li-Ion)

Processor & Chipset

Processor Manufacturer: Intel
Processor Speed: 624 MHz
Processor Type: XScale

Keyboard/Keypad

Keyboard Type: Alpha
Number of Keys: 38

Software

Operating System: Windows CE 6.0 Professional

Warranty

Limited Warranty: 1 Year

Touchscreen Information

Touchscreen: Yes

Extended Details
