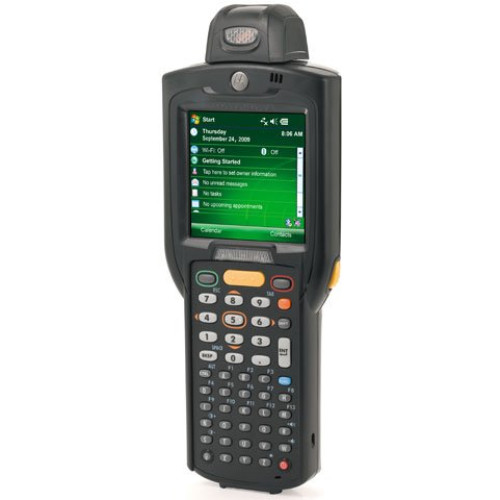

Motorola MC3190 Mobile Computer
Part #: MC3190-RL2H04E0A | SKU: MOT206979

Building on the successful MC3000, the Motorola MC3100 Series brings cost-effective mobility and user comfort to key-based applications within the four walls. The rugged and ergonomic MC3100 offers advanced computing power and data capture capabilities, enhanced security and enterprise class motion sensing capabilities.

Motorola MC3190 Mobile Computer

Part Details: 802.11a/b/g, Bluetooth, Full Audio, Rotating Head, 1D Laser SE950, Color-touch display, 28 key, High Capacity Battery, CE 6.0 Pro, 256MB RAM/1GB ROM, English, World Wide - Download Local Language

Need a different version of the Motorola MC3190 Mobile Computer? View all 125 configurations

Additional Information

Manufacturer	Motorola
Model Name	MC3190
Product Condition	No

Motorola MC3190 Specs (pdf)

Technical Information

Connectivity Technology: Wireless
Light Source: Laser
Electrostatic Discharge (ESD):
- +/-15 kV DC Air Discharge
- +/-8 kV DC Direct Discharge
- +/-8 kV DC Indirect Discharge
Drop Specification: 48" To Concrete
Barcode Symbology Supported: 1D

General Information

Product Type: Handheld Terminal
Product Series: MC3100
Brand Name: Motorola
Manufacturer: Motorola, Inc
Product Model: MC3190
Product Name: MC3190 Handheld Terminal

Physical Characteristics

Height: 7.5"
Width: 3.3"
Depth: 1.8"
Weight (Approximate): 14.96 oz

Other

Green Compliant: Yes
Green Compliance Certificate/Authority: RoHS
Package Contents:
- MC3190 Handheld Terminal
- High Capacity Battery
- Stylus
- Strap
- MC3190 Handheld Terminal
- High Capacity Battery
- Stylus
- Strap
Certifications & Standards:
- CCXv4 Certified
- IP54
- Electrical Safety:
- Certified to UL60950-1
- CSA C22.2No. 60950-1
- EN60950-1/IEC 60950-1
- WLAN and Bluetooth:
- USA: FCC Part 15.247, 15.407
- Canada: RSS-210
- EMI/RFI Radio Versions:
- USA: FCC Part 15
- Canada: RSS210 Class B

Network & Communication

Bluetooth: Yes
Wireless LAN: Yes
Antenna Form Factor: Internal
Wireless LAN Standard: IEEE 802.11a/b/g
Wireless Security:
- WPA2
- 802.1x
- EAP-TLS
- TTLS
- PEAP
- LEAP
- EAP-FAST
- Support for IPv6
- FIPS140-2 Certified

Memory

Flash Memory: 1 GB
Standard Memory: 256 MB
Memory Card Slot: Yes
Memory Card Supported:
- MultiMediaCard (MMC)
- Secure Digital (SD) Card

Processor & Chipset

Processor Manufacturer: Marvell
Processor Speed: 624 MHz
Processor Type: XScale

Display & Graphics

Screen Size: 3"
Display Color: Color
Screen Resolution: 320 x 320

Battery Information

Battery Capacity: 4800 mAh
Battery Included: Yes
Battery Chemistry: Lithium Ion (Li-Ion)

Keyboard/Keypad

Keyboard Type: Numeric
Number of Keys: 28

Touchscreen Information

Touchscreen: Yes

Warranty

Limited Warranty: 1 Year

Software

Operating System: Windows CE 6.0
