Motorola Barcode Scanner and Mobile Handheld Computer

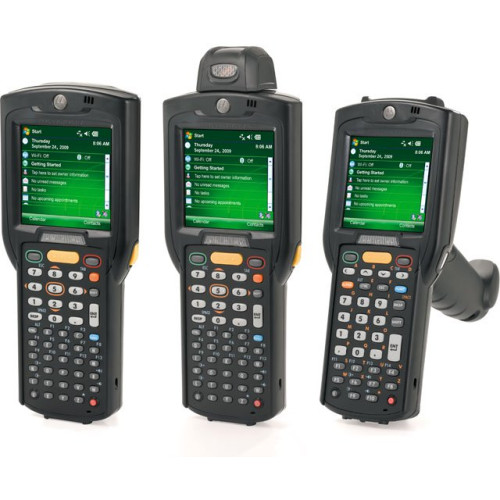

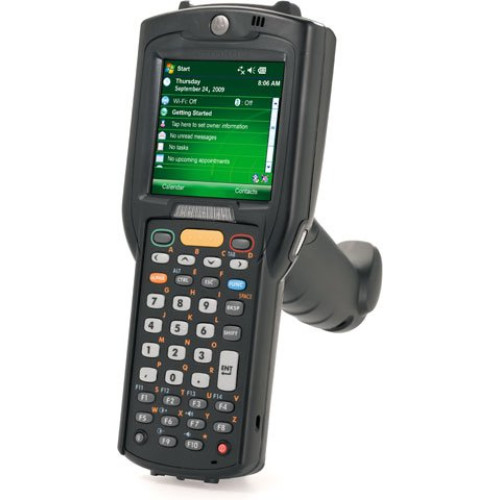

Motorola MC3190 Mobile Computer
Part #: MC3190-GL4H04EAA | SKU: 177854

Building on the successful MC3000, the Motorola MC3100 Series brings cost-effective mobility and user comfort to key-based applications within the four walls. The rugged and ergonomic MC3100 offers advanced computing power and data capture capabilities, enhanced security and enterprise class motion sensing capabilities.

Motorola MC3190 Mobile Computer

Part Details: MC3190-G, Gun-Grip, Wi-Fi (802.11a/b/g), Bluetooth, Laser Scanner, Windows CE 6.0 Pro, 256MB/1GB Rom, 48 key, High Capacity Battery. Cables and Charging Cradle Not Included.

Need a different version of the Motorola MC3190 Mobile Computer? View all 125 configurations

Additional Information

Manufacturer	No
Model Name	MC3190
Product Condition	No
Style	No

MC3190 Specs (pdf)

Technical Information

Connectivity Technology: Wireless
Light Source: Laser
Electrostatic Discharge (ESD):
- +/-15 kV DC Air Discharge
- +/-8 kV DC Direct Discharge
- +/-8 kV DC Indirect Discharge
Drop Specification: 48" To Concrete
Barcode Symbology Supported: 1D

General Information

Product Type: Handheld Terminal
Product Series: MC3100
Brand Name: Motorola
Manufacturer: Motorola, Inc
Product Model: MC3190-G
Product Name: MC3190-G Handheld Terminal

Physical Characteristics

Height: 7.5"
Width: 3.2"
Depth: 6.5"
Weight (Approximate): 1.15 lb

Other

Green Compliant: Yes
Green Compliance Certificate/Authority: RoHS
Package Contents:
- MC3190-G Handheld Terminal
- Battery
- Stylus
- Strap
- MC3190-G Handheld Terminal
- Battery
- Stylus
- Strap
Certifications & Standards:
- Electrical Safety:
- Certified to UL60950-1
- CSA C22.2No. 60950-1
- EN60950-1/IEC 60950-1
- WLAN and Bluetooth:
- USA: FCC Part 15.247 15.407
- Canada: RSS-210
- RF Exposure:
- USA: FCC Part 2 FCC OET Bulletin 65 Supplement C
- Canada: RSS-102
- EMI/RFI Radio Versions:
- USA: FCC Part 15
- Canada: RSS210 Class B
- EMI/RFI Batch Versions:
- USA: FCC Part 15
- Canada: ICES 003 Class B
- Laser Safety:
- IEC Class2/FDA Class II in accordance with IEC60825-1/EN60825-1

Network & Communication

Bluetooth: Yes
Wireless LAN: Yes
Antenna Form Factor: Internal
Wireless LAN Standard: IEEE 802.11a/b/g
Wireless Security:
- WPA2
- 802.1x
- EAP-TLS
- TTLS
- PEAP
- LEAP
- EAP-FAST
- CCXv4 certified
- Support for IPv6
- FIPS140-2 Certified

Memory

Flash Memory: 1 GB
Standard Memory: 256 MB
Memory Card Slot: Yes
Memory Card Supported: Secure Digital (SD) Card

Display & Graphics

Display Screen Type: LCD
Screen Size: 3"
Display Color: Color
Screen Resolution: 320 x 320

Battery Information

Battery Capacity: 4800 mAh
Battery Included: Yes
Battery Chemistry: Lithium Ion (Li-Ion)

Processor & Chipset

Processor Manufacturer: Marvell
Processor Speed: 624 MHz
Processor Type: PXA320

Touchscreen Information

Touchscreen: Yes

Keyboard/Keypad

Number of Keys: 48

Warranty

Limited Warranty: 1 Year

Software

Operating System: Windows CE 6.0 Professional
