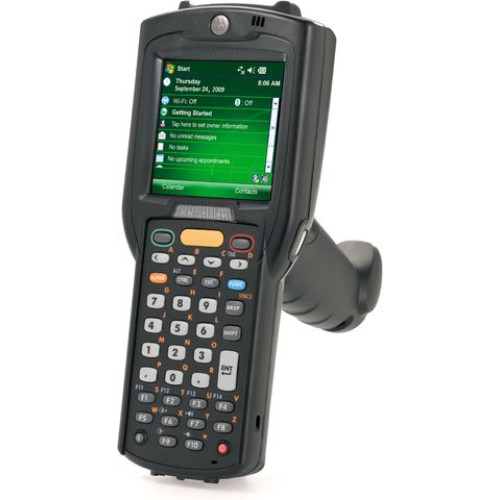

Motorola MC3190 Mobile Computer
Part #: MC3190-GL2H24E0A | SKU: 129675

Building on the successful MC3000, the Motorola MC3100 Series brings cost-effective mobility and user comfort to key-based applications within the four walls. The rugged and ergonomic MC3100 offers advanced computing power and data capture capabilities, enhanced security and enterprise class motion sensing capabilities.

Motorola MC3190 Mobile Computer

Part Details: 802.11a/b/g, Bluetooth, Full Audio, Gun, 1D SE950, Color-touch display, 28 key, High Capacity Battery, Windows Mobile 6.5 Classic, 256MB RAM/1GB ROM, English, World Wide

Need a different version of the Motorola MC3190 Mobile Computer? View all 125 configurations

Additional Information

Data Collection Type	Wireless
Display Resolution	No
Drop Rating	No
IP Rating	No
Manufacturer	No
Model Name	MC3190
Network Connectivity	Bluetooth, Wi-Fi 3: 802.11g
Operating System	No
Operating Temperature	No
Processor	No
Product Condition	No
RAM Memory	No
Scanner Capability	1D
Scanner Type	Laser
Style	No

MC3190 Specs (pdf)

Technical Information

Connectivity Technology: Wireless
Light Source: Laser
Electrostatic Discharge (ESD):
- +/-15 kV DC Air Discharge
- +/-8 kV DC Direct Discharge
- +/-8 kV DC Indirect Discharge
Drop Specification:
- 48" To Concrete @ -4°F (-20°C) to 122°F (50°C)
- 60" To Concrete73.4°F (23°C)

General Information

Product Type: Handheld Terminal
Product Series: MC3100
Brand Name: Motorola
Manufacturer: Motorola, Inc
Product Model: MC3190
Product Name: MC3190 Handheld Terminal

Physical Characteristics

Height: 7.5"
Width: 3.2"
Depth: 6.5"
Weight (Approximate): 1.15 lb

Network & Communication

Bluetooth: Yes
Wireless LAN: Yes
Antenna Form Factor: Internal
Wireless LAN Standard: IEEE 802.11a/b/g
Wireless Security:
- WPA2
- 802.1x
- EAP-TLS
- TTLS
- LEAP
- PEAP
- EAP-FAST

Memory

Flash Memory: 1 GB
Standard Memory: 256 MB
Memory Card Slot: Yes
Memory Card Supported:
- Secure Digital (SD) Card
- MultiMediaCard (MMC)

Display & Graphics

Display Screen Type: LCD
Screen Size: 3"
Display Color: Color
Screen Resolution: 320 x 320

Processor & Chipset

Processor Manufacturer: Intel
Processor Speed: 624 MHz
Processor Type: XScale

Battery Information

Battery Capacity: 4800 mAh
Battery Included: Yes
Battery Chemistry: Lithium Ion (Li-Ion)

Other

Green Compliant: Yes
Green Compliance Certificate/Authority: RoHS

Touchscreen Information

Touchscreen: Yes

Software

Operating System: Windows Mobile 6.5 Classic

Warranty

Limited Warranty: 1 Year

Keyboard/Keypad

Keyboard Type: Numeric
