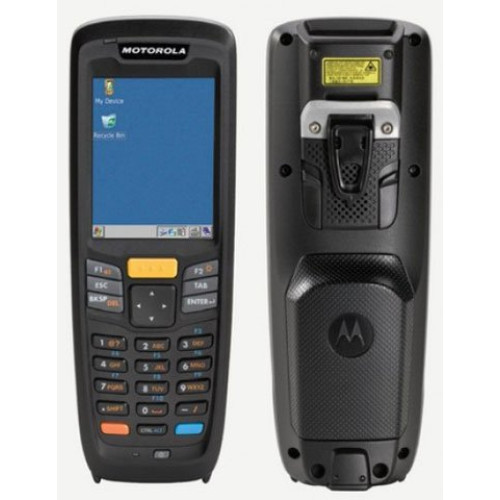

Motorola MC2180 Mobile Computer
Motorola Barcode Scanner and Mobile Handheld Computer

Motorola MC2180 Mobile Computer
Part #: MC2180-AS01E0A | SKU: MOT156393

With the value-priced MC2100, you get the features you need to get the job done. You can count on plenty of processing power, rugged design, superior ergonomics, flexible data capture options, enterprise-grade push-to-talk (PTT), plus centralized management.

Motorola MC2180 Mobile Computer

Part Details: MC2180, 2D Imager, 27-Key Keypad, Bluetooth/WiFi (80211 a/b/g/n) interfaces, Color Touch QVGA Screen, Windows CE 60 Core, 128MB Rom/256MB RAM, 2400 MAH Battery . Interface Cables And Charging Cradle Sold Separately.
Need a different version of the Motorola MC2180 Mobile Computer? View all 7 configurations

Additional Information

Manufacturer Motorola
Model Name MC2180
Product Condition No
Motorola MC2180 Specs Motorola MC2180 Specs (pdf)

Technical Information

  • Connectivity Technology: Wireless
  • Image Sensor: Imager
  • Electrostatic Discharge (ESD):
    • +/-15 kV DC Air Discharge
    • +/-8 kV DC Contact Discharge
  • Drop Specification:
    • 48" To Concrete @ 98.6°F (37°C)
    • 48" To Concrete
    • 36" To Concrete @ 14°F (-10°C) to 122°F (50°C)
  • Barcode Symbology Supported:
    • 1D
    • 2D

General Information

  • Product Type: Handheld Terminal
  • Product Series: MC2100
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: MC2180
  • Product Name: MC2180 Handheld Terminal

Physical Characteristics

  • Height: 6.8"
  • Width: 2.4"
  • Depth: 1.3"
  • Weight (Approximate): 8.32 oz

Network & Communication

  • Bluetooth: Yes
  • Wireless LAN: Yes
  • Antenna Form Factor: Internal
  • Wireless LAN Standard: IEEE 802.11b/g/n
  • Wireless Security:
    • WPA
    • WPA2
    • EAP-TTLS/MSCHAPv2
    • EAPFAST (Cisco)
    • PEAPv0/EAP-MSCHAPv2
    • PEAPv1/EAP-GTC
    • EAP-TLS

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: China RoHS
  • Package Contents:
    • MC2180 Handheld Terminal
    • Battery
    • MC2180 Handheld Terminal
    • Battery
  • Certifications & Standards:
    • IP54
    • MIL STD 810G

Memory

  • Flash Memory: 256 MB
  • Standard Memory: 128 MB
  • Memory Card Slot: Yes
  • Memory Card Supported:
    • microSD Card
    • microSD High Capacity (microSDHC)

Display & Graphics

  • Display Screen Type: LCD
  • Screen Mode: QVGA
  • Screen Size: 2.8"
  • Display Color: Color

Processor & Chipset

  • Processor Manufacturer: Marvell
  • Processor Speed: 624 MHz
  • Processor Type: XScale

Battery Information

  • Battery Capacity: 2400 mAh
  • Battery Included: Yes
  • Battery Chemistry: Lithium Ion (Li-Ion)

Keyboard/Keypad

  • Keyboard Type: Numeric
  • Number of Keys: 27

Software

  • Operating System: Windows Embedded CE 6.0

Warranty

  • Limited Warranty: 1 Year

Touchscreen Information

  • Touchscreen: Yes
