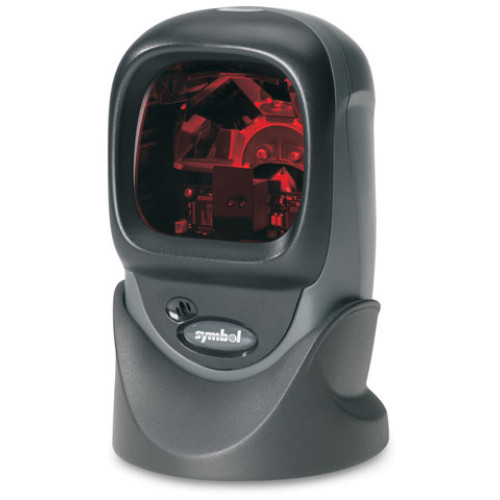

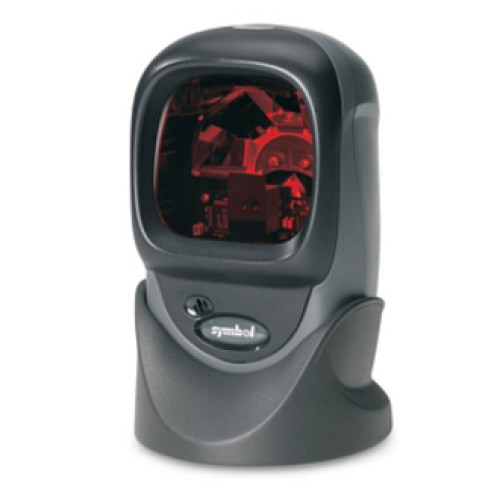

Motorola LS9203 Barcode Scanner
Part #: LS9203-7NNR0100D | SKU: 16289

Easy to use, deploy and maintain, Symbol's LS9203 omni-directional presentation scanner gives you a high-value choice for seamlessly integrating advanced data capture into your point-of-sale (POS) environment at an affordable price. Designed to speed the checkout process for customers while improving sales tracking and inventory management LS9203's high-performance handheld and presentation scanning capability enables your POS employees to work faster and more accurately. And durable construction protects it from the shocks of heavy use, extending the life of your investment. The LS9203 helps you lower costs by eliminating the errors inherent with manual, paper-based sales and inventory tracking. You increase profitability by reducing pricing mistakes, minimizing shrinkage and providing better visibility into fundamental business processes. Because the LS9203 is both a handheld and a presentation scanner, your employees are able to quickly switch between hands-free and handheld mode to scan bar codes easily, maximizing their productivity. You also help reduce injuries, because your employees and customers don't need to lift or maneuver heavy items for scanning. And the durable construction of the LS9203 means you'll avoid downtime resulting from equipment failure.

Motorola LS9203 Barcode Scanner

Part Details: LS 9203, RS-232 kit: Scanner, stand, 110V US Power supply, 6 ft. RS-232 cable and product CD. Color: Twilight Black.

Need a different version of the Motorola LS9203 Barcode Scanner? View all 13 configurations

Additional Information

Included Cables	USB
Manufacturer	No
Model Name	LS9203
Product Condition	No
Specialty Encoding	None

LS9203 Specs (pdf)

Technical Information

Form Factor:
- Handheld Scanner
- Presentation Scanner
Resolution: 5 mil(s)
Symbologies Supported:
- UPC/EAN/JAN
- UPC/EAN with Supplementals
- UCC/EAN 128
- Code 128
- ISBT 128
- Code 39
- Trioptic Code 39
- Interleaved 2 of 5
- Discrete 2 of 5
- Chinese 2 of 5
- Code 93
- Code 11
- Codabar
- MSI
- RSS-14
- RSS-Limited
- RSS-Expanded
Scanner Type: Laser
Scan Rate: 1500 Scans/sec
Interface Options:
- USB
- RS-232
- Keyboard Wedge
- Wand
Interface Connectivity: Corded
Scan Pattern: Omnidirectional
Input Voltage: 5 V DC
Depth of Field: 0 - 8.5"@13mils - 100% UPC/EAN

General Information

Manufacturer: Symbol
Product Name: LS9203 Barcode Scanner

Physical Characteristics

Dimensions: 6.13" (155.7mm) x 3.93" (99.82mm) x 3.93" (99.82mm) - With stand
Weight: 12.2 oz - With stand
Color: Black

Agency Approvals

Agency Approvals:
- UL 1950
- CSA C22.2 No. 950
- CDRH Class IIa
- IEC 60825 Class 1
- CISPR B
- FCC B
- EN60825

Other

Package Contents:
- LS9203 Barcode Scanner
- Stand (LS9203-SR10007NSWW)
- 100V Power Supply (50-14000-008)
- 7ft Straight RS232 Cable (CBA-R01-S07PA)
- Product CD (SW-72099-01)
Cables Included: RS-232

Environmental Conditions

Temperature:
- 0Â°C (32Â°F) to 40Â°C (104Â°F) Operating
- -40Â°C (-40Â°F) to 70Â°C (158Â°F) Storage
Humidity: 5 to 95% Non-condensing

Warranty

Manufacturer Warranty: 2 Year(s)
