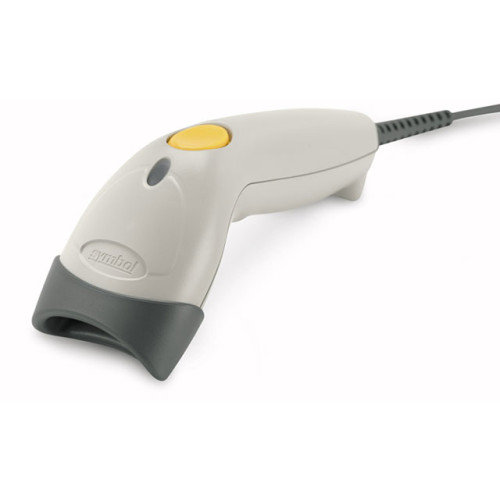

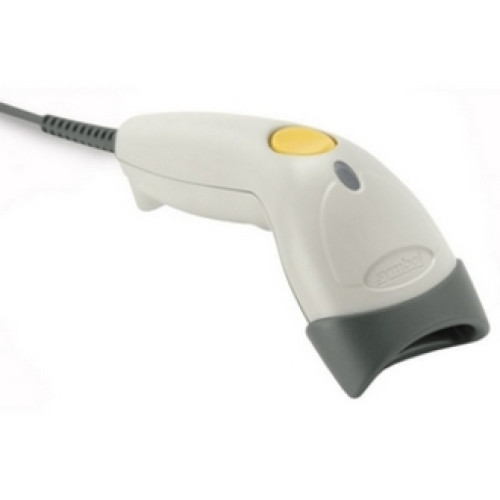

Motorola LS1203 Barcode Scanner
Part #: LS1203-1AZK0100SR | SKU: 141900

The LS1203 handheld scanner from Symbol Technologies is designed to meet the needs of small retailers, delivering high quality laser scanning, user-friendly ergonomics and durability at an affordable price. From gift shops, boutiques, video and sporting goods stores to jewelers, florists and more, the LS1203 delivers the features, functionality and reliability needed to improve operational efficiencies from the checkout line to the back room - day in and day out. Manual keying is minimized, customers are charged the correct amount and paper-based inventory processes are automated. The result is faster checkout, increased customer satisfaction, increased employee productivity - and a rapid return on investment.

Motorola LS1203 Barcode Scanner

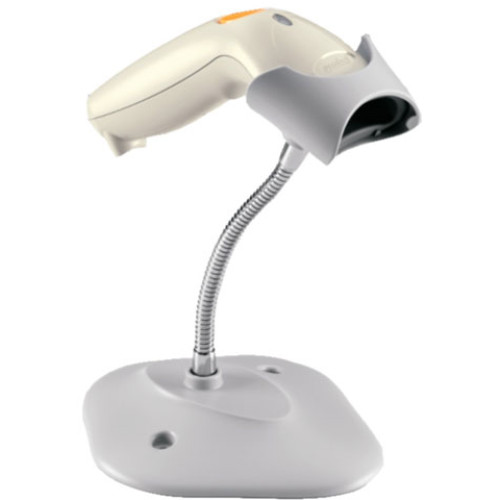

Part Details: LS1203, PS/2 kit, 1D Laser. Includes PS/2 cable and stand. Color: White.

Additional Information

Manufacturer No
Model Name LS1203
Product Condition No
Scanner Capability 1D
Scanner Type Laser

Technical Information

  • Barcode Dimension: 1D
  • Scan Pattern: Bi-directional
  • Scan Rate: 100 scan/s
  • Connectivity Technology: Cable
  • Light Source: Laser
  • Image Sensor: Linear
  • Barcode Symbology Supported:
    • UPC/EAN
    • UPC/EAN Supplementals
    • UCC/EAN 128
    • Code 39
    • Code 39 Full ASCII
    • Code 39 TriOptic
    • Code 128
    • Code 128 Full ASCII
    • Codabar
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • Code 93
    • MSI
    • Code 11
    • IATA
    • RSS Variants
    • Chinese 2 of 5
    • UPC/EAN
    • UPC/EAN Supplementals
    • UCC/EAN 128
    • Code 39
    • Code 39 Full ASCII
    • Code 39 TriOptic
    • Code 128
    • Code 128 Full ASCII
    • Codabar
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • Code 93
    • MSI
    • Code 11
    • IATA
    • RSS Variants
    • Chinese 2 of 5
  • Depth of Field:
    • 0.25" - 5"@5 mil - Code 39
    • 0 mil - 7.75"@7.50 mil - Code 39
    • 0 mil - 8.50"@10 mil - Code 39
    • 0 mil - 8.50"@13 mil - 100% UPC
    • 0 mil - 10.25"@26 mil - 200% UPC

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: LS1203
  • Product Name: Symbol LS1203 Handheld BarCode Scanner
  • Product Line: Symbol

Physical Characteristics

  • Height: 2.4"
  • Width: 2.4"
  • Depth: 7.1"
  • Color: White
  • Weight (Approximate): 4.30 oz

Interfaces/Ports

  • Host Interface: Multi-interface

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Package Contents:
    • Symbol LS1203 Barcode Reader
    • Keyboard Wedge Cable
    • Stand
    • Software CD
    • Symbol LS1203 Barcode Reader
    • Keyboard Wedge Cable
    • Stand
    • Software CD
  • Certifications & Standards:
    • Electrical Safety:
    • UL1950
    • CSA C22.2 No. 950
    • EN60950/IEC950
    • EMI/RFI:
    • FCC Part 15 Class B
    • ICES-003 Class B
    • European Union EMC Directive
    • Australian SMA
    • Taiwan EMC
    • Japan VCCI/MITI/Dentori
    • Laser Safety:
    • IEC Class 1
    • RoHS Compliance
  • Additional Information:
    • Supported Interfaces:
    • SerialUSBKeyboard Wedge

Warranty

  • Limited Warranty: 3 Year

Power Description

  • Input Voltage: 5 V DC
Extended Details
