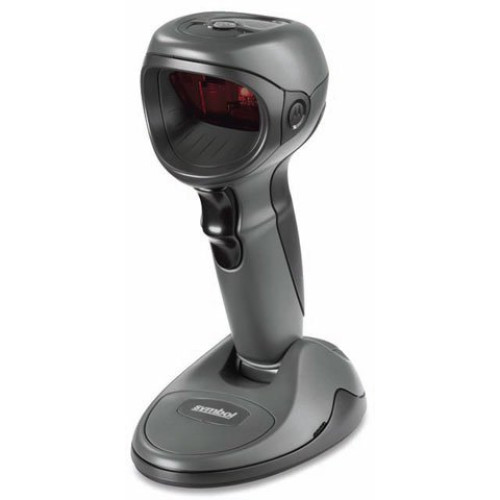

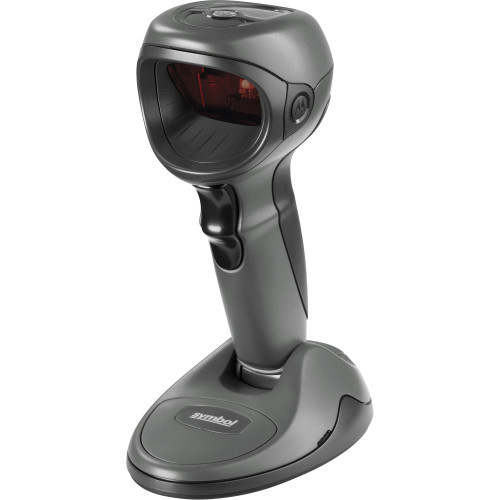

Motorola DS9808 Barcode Scanner
Part #: DS9808-SR7NNU03ZR | SKU: 69760

With the flexible Motorola DS9808, there is no need to purchase multiple devices to enable different types of data capture in your enterprise - no matter what applications you need now or in the future, the powerful comprehensive feature set will meet your needs.

Motorola DS9808 Barcode Scanner

Part Details: Symbol DS9808, IBM USB Kit, 2D Imager, Standard Focus. Includes Power+ IBM USB cable. Not a standard USB configuraion.

Additional Information

Manufacturer No
Model Name DS9808
Product Condition No

Technical Information

  • Barcode Dimension:
    • 1D
    • 2D
  • Scan Pattern: Omni-directional
  • Connectivity Technology: Cable
  • Scanning Distance: 10.50"
  • Light Source: Laser
  • Image Sensor: Imager
  • Barcode Symbology Supported:
    • 1D:
    • UPC/EAN (UPCA/UPCE/UPCE1/EAN-8/EAN-13/JAN-8/JAN-13) plus supplementals
    • ISBN (Bookland)
    • ISSN
    • Coupon Code
    • Code 39 (Standard, Full ASCII, Trioptic)
    • Code 128 (Standard, Full ASCII, UCC/EAN-128, ISBT-128 Concatenated)
    • Code 93
    • Codabar/NW7
    • Code 11 (Standard, Matrix 2 of 5)
    • MSI Plessey
    • I 2 of 5 (Interleaved 2 of 5 / ITF, Discrete 2 of 5, IATA, Chinese 2 of 5)
    • GS1 DataBar (Omnidirectional, Truncated, Stacked, Stacked Omnidirectional, Limited, Expanded, Expanded Stacked, Inverse)
    • Base 32 (Italian Pharmacode)
    • PDF417:
    • PDF417 (Standard, Macro)
    • MicroPDF417 (Standard, Macro)
    • Composite Codes (CC-A, CC-B, CC-C)
    • 2D:
    • TLC-39
    • Aztec (Standard, Inverse)
    • MaxiCode
    • DataMatrix/ECC 200 (Standard, Inverse)
    • QR Code (Standard, Inverse, Micro)
    • Postal:
    • U.S. Postnet and Planet
    • U.K. Post
    • Japan Post
    • Australian Post
    • Netherlands KIX Code
    • Royal Mail 4 State Customer
    • UPU FICS 4 State Postal USPS 4CB
    • 1D:
    • UPC/EAN (UPCA/UPCE/UPCE1/EAN-8/EAN-13/JAN-8/JAN-13) plus supplementals
    • ISBN (Bookland)
    • ISSN
    • Coupon Code
    • Code 39 (Standard, Full ASCII, Trioptic)
    • Code 128 (Standard, Full ASCII, UCC/EAN-128, ISBT-128 Concatenated)
    • Code 93
    • Codabar/NW7
    • Code 11 (Standard, Matrix 2 of 5)
    • MSI Plessey
    • I 2 of 5 (Interleaved 2 of 5 / ITF, Discrete 2 of 5, IATA, Chinese 2 of 5)
    • GS1 DataBar (Omnidirectional, Truncated, Stacked, Stacked Omnidirectional, Limited, Expanded, Expanded Stacked, Inverse)
    • Base 32 (Italian Pharmacode)
    • PDF417:
    • PDF417 (Standard, Macro)
    • MicroPDF417 (Standard, Macro)
    • Composite Codes (CC-A, CC-B, CC-C)
    • 2D:
    • TLC-39
    • Aztec (Standard, Inverse)
    • MaxiCode
    • DataMatrix/ECC 200 (Standard, Inverse)
    • QR Code (Standard, Inverse, Micro)
    • Postal:
    • U.S. Postnet and Planet
    • U.K. Post
    • Japan Post
    • Australian Post
    • Netherlands KIX Code
    • Royal Mail 4 State Customer
    • UPU FICS 4 State Postal USPS 4CB
  • Maximum Scan Resolution: 7.80 mil
  • Depth of Field:
    • 0 mil - 4.50"@5 mil - Code 39
    • 0 mil - 8.50"@10 mil - UPC/EAN
    • 0 mil - 10.50"@13 mil - UPC/EAN
    • 0 mil - 5"@6.60 mil - PDF417
    • 0 mil - 6"@10 mil - Datamatrix

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: DS9808
  • Product Name: Symbol DS9808 Handheld Barcode Scanner
  • Product Line: Symbol

Physical Characteristics

  • Height: 8"
  • Width: 3.4"
  • Depth: 5.4"
  • Color: Twilight Black
  • Weight (Approximate): 12 oz

Interfaces/Ports

  • Host Interface: Powered USB

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
