Motorola DS9808 Barcode Scanner Motorola DS9808 Barcode Scanner Motorola DS9808 Barcode Scanner Motorola DS9808 Barcode Scanner
Motorola Barcode Scanner and Mobile Handheld Computer

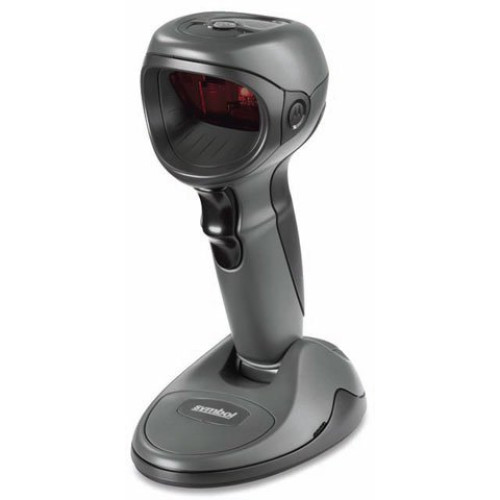

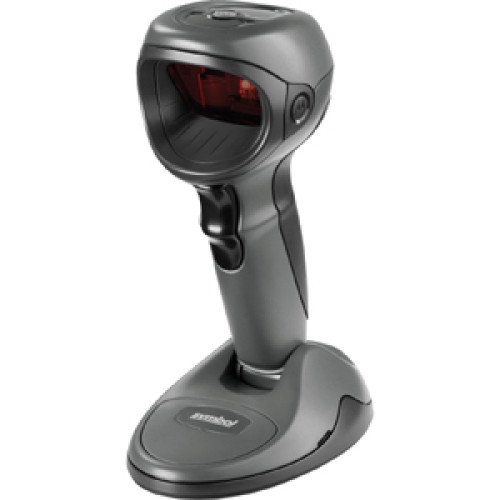

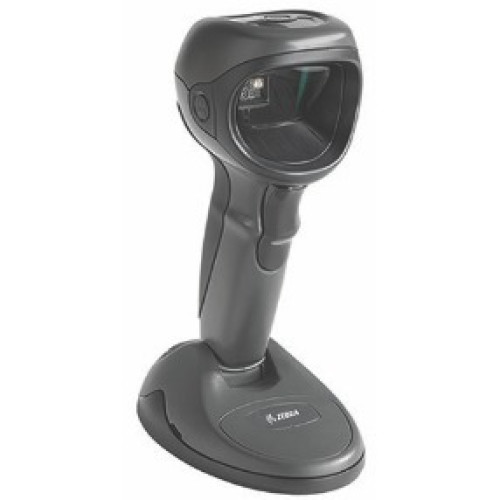

Motorola DS9808 Barcode Scanner
Part #: DS9808-SR00007NNWR | SKU: 69756

With the flexible Motorola DS9808, there is no need to purchase multiple devices to enable different types of data capture in your enterprise - no matter what applications you need now or in the future, the powerful comprehensive feature set will meet your needs.

Motorola DS9808 Barcode Scanner

Part Details: Symbol DS9808, SCANNER ONLY, 2D Imager, Standard Range, No EAS. Color: Black. Cables sold separately. See accessories. For the full kit purchase (Part# DS9808-SR7NNU01ZR).
Need a different version of the Motorola DS9808 Barcode Scanner? View all 30 configurations

Additional Information

Color No
Connectivity No
Form Factor No
Included Cables No
Manufacturer No
Model Name DS9808
Product Condition No
Ruggedness General Purpose
Scan Pattern No
Scanner Capability 2D
Scanner Type No
DS9808 Specs DS9808 Specs (pdf)

Technical Information

  • Barcode Dimension: 2D
  • Scan Pattern: Omni-directional
  • Connectivity Technology: Cable
  • Scanning Distance: 18"
  • Light Source: LED
  • Image Sensor: Imager
  • Barcode Symbology Supported:
    • 1-D / LINEarcodeS:
    • UPC/EAN (UPCA/UPCE/UPCE1/EAN-8/EAN-13/ JAN-8/JAN-13 plus supplementals)
    • ISBN (Bookland)
    • ISSN
    • Coupon Code
    • Code 39 (Standard, Full ASCII, Trioptic)
    • Code 128 (Standard, Full ASCII, UCC/EAN-128, ISBT-128 Concatenated)
    • Code 93
    • Codabar/NW7
    • Code 11 (Standard, Matrix 2 of 5)
    • MSI Plessey
    • I 2 of 5 (Interleaved 2 of 5 / ITF, Discrete 2 of 5, IATA, Chinese 2 of 5)
    • GS1 DataBar (Omnidirectional, Truncated, Stacked, Stacked Omnidirectional, Limited, Expanded, Expanded Stacked, Inverse)
    • Base 32 (Italian Pharmacode)
    • PDF417 (and variants):
    • PDF417 (Standard, Macro)
    • MicroPDF417 (Standard, Macro)
    • Composite Codes (CC-A, CC-B, CC-C)
    • 2-D:
    • TLC-39
    • Aztec (Standard, Inverse)
    • MaxiCode, DataMatrix/ECC 200 (Standard, Inverse)
    • QR Code (Standard, Inverse, Micro)
    • Postal:
    • U.S. Postnet and Planet
    • U.K. Post
    • Japan Post
    • Australian Post
    • Netherlands KIX Code
    • Royal Mail 4 State Customer
    • UPU FICS 4 State Postal
    • USPS 4CB
    • 1-D / LINEarcodeS:
    • UPC/EAN (UPCA/UPCE/UPCE1/EAN-8/EAN-13/ JAN-8/JAN-13 plus supplementals)
    • ISBN (Bookland)
    • ISSN
    • Coupon Code
    • Code 39 (Standard, Full ASCII, Trioptic)
    • Code 128 (Standard, Full ASCII, UCC/EAN-128, ISBT-128 Concatenated)
    • Code 93
    • Codabar/NW7
    • Code 11 (Standard, Matrix 2 of 5)
    • MSI Plessey
    • I 2 of 5 (Interleaved 2 of 5 / ITF, Discrete 2 of 5, IATA, Chinese 2 of 5)
    • GS1 DataBar (Omnidirectional, Truncated, Stacked, Stacked Omnidirectional, Limited, Expanded, Expanded Stacked, Inverse)
    • Base 32 (Italian Pharmacode)
    • PDF417 (and variants):
    • PDF417 (Standard, Macro)
    • MicroPDF417 (Standard, Macro)
    • Composite Codes (CC-A, CC-B, CC-C)
    • 2-D:
    • TLC-39
    • Aztec (Standard, Inverse)
    • MaxiCode, DataMatrix/ECC 200 (Standard, Inverse)
    • QR Code (Standard, Inverse, Micro)
    • Postal:
    • U.S. Postnet and Planet
    • U.K. Post
    • Japan Post
    • Australian Post
    • Netherlands KIX Code
    • Royal Mail 4 State Customer
    • UPU FICS 4 State Postal
    • USPS 4CB
  • Maximum Scan Resolution: 7.80 mil
  • Depth of Field:
    • 0 mil - 4.49"@5 mil - Code 39
    • 0 mil - 8.50"@10 mil - UPC/EAN
    • 0 mil - 10.51"@13 mil - UPC/EAN
    • 0 mil - 5"@6.60 mil - PDF417
    • 0 mil - 5.98"@10 mil - Datamatrix

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Name: Symbol DS9808SR Barcode Reader
  • Product Line: Symbol

Physical Characteristics

  • Height: 8"
  • Width: 5.4"
  • Depth: 3.4"
  • Color: Twilight Black
  • Weight (Approximate): 11.99 oz

Interfaces/Ports

  • Host Interface: Multi-interface

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Additional Information:
    • Supported Interface:
    • USB
    • RS-232
    • RS-485 (IBM 46xx Protocols)
    • KBW interface
Extended Details
