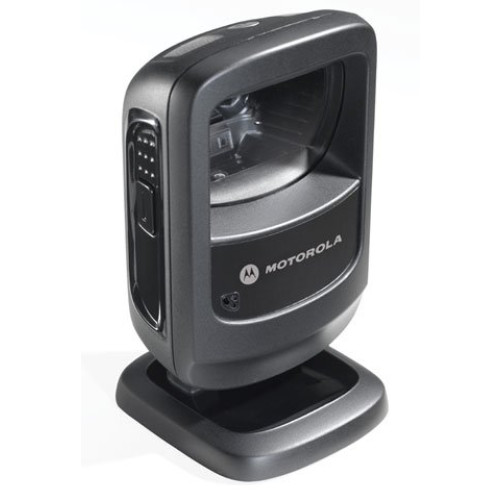

Motorola Barcode Scanner
Part #: DS9208-SR4NNM04Z | SKU: 141883

Whether you need a bar code scanner that can be used on paper labels or mobile bar codes on the screen of a mobile phone, with the Motorola DS9208, youll be ready. You get the versatility to scan any 1D or 2D bar code - from the printed labels in retail that identify product and pricing at the register to mobile coupons, mobile gift and loyalty cards, boarding passes and even theater tickets.

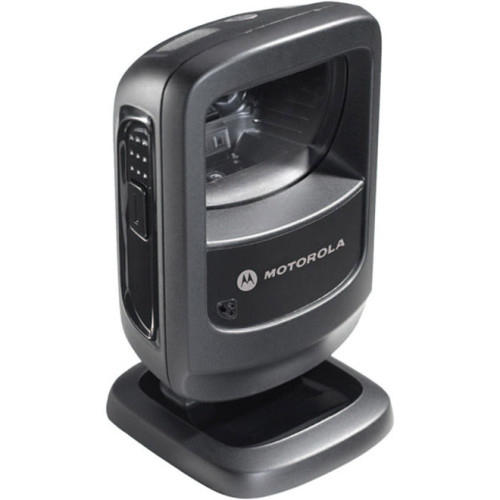

Motorola Barcode Scanner

Part Details: Standard range Black Ibm 468x/9x Port 5b 7 ft.Straight Cable

Need a different version of the Zebra DS9208 Barcode Scanner? View all 16 configurations

Additional Information

Connection	No
Connectivity	No
Form Factor	Presentation
Included Cables	IBM 468x/9x Port 5B
Manufacturer	No
Model Name	DS9208
Product Condition	No
Ruggedness	General Purpose
Scan Pattern	No
Scanner Capability	2D
Scanner Type	No
Specialty Encoding	None

DS9208 Specs (pdf)

Technical Information

Barcode Dimension:
- 1D
- 2D
Scan Pattern: Omni-directional
Connectivity Technology: Cable
Light Source: LED
Image Sensor: Imager
Barcode Symbology Supported:
- 1D:
- UPC/EAN (UPCA/UPCE/UPCE1/EAN-8/EAN-13/JAN-8/JAN-13 plus Supplementals
- ISBN (Bookland)
- ISSN (Coupon Code)
- Code 39 (Standard, Full ASCII, Trioptic)
- Code 32 (Italian Pharmacode)
- Code 128 (Standard, Full ASCII, UCC/EAN-128, ISBT-128 Concatenated)
- Code 93
- Codabar/NW7
- 2 of 5 (Interleaved 2 of 5, Discrete 2 of 5, IATA , Chinese 2 of 5, Matrix 2 of 5, Code 11)
- MSI Plessey
- GS1 DataBar (Omnidirectional, Truncated, Stacked, Stacked Omnidirectional, Limited, Expanded, Expanded Stacked)
- PDF417 (and variants):
- PDF417 (Standard, Macro)
- MicroPDF417 (Standard, Macro)
- Composite Codes (CC-A, CC-B, CC-C)
- 2D:
- TL C-39
- Aztec (Standard, Inverse)
- MaxiCode
- DataMatrix/ECC 200 (Standard, Inverse)
- QR Code (Standard, Inverse, Micro)
- Postal:
- U.S. Postnet and Planet
- U.K. Post
- Japan Post
- Australian Post
- Netherlands KIX Code
- Royal Mail 4 State Customer
- UPU FICS 4 State Postal
- USPS 4CB
- 1D:
- UPC/EAN (UPCA/UPCE/UPCE1/EAN-8/EAN-13/JAN-8/JAN-13 plus Supplementals
- ISBN (Bookland)
- ISSN (Coupon Code)
- Code 39 (Standard, Full ASCII, Trioptic)
- Code 32 (Italian Pharmacode)
- Code 128 (Standard, Full ASCII, UCC/EAN-128, ISBT-128 Concatenated)
- Code 93
- Codabar/NW7
- 2 of 5 (Interleaved 2 of 5, Discrete 2 of 5, IATA , Chinese 2 of 5, Matrix 2 of 5, Code 11)
- MSI Plessey
- GS1 DataBar (Omnidirectional, Truncated, Stacked, Stacked Omnidirectional, Limited, Expanded, Expanded Stacked)
- PDF417 (and variants):
- PDF417 (Standard, Macro)
- MicroPDF417 (Standard, Macro)
- Composite Codes (CC-A, CC-B, CC-C)
- 2D:
- TL C-39
- Aztec (Standard, Inverse)
- MaxiCode
- DataMatrix/ECC 200 (Standard, Inverse)
- QR Code (Standard, Inverse, Micro)
- Postal:
- U.S. Postnet and Planet
- U.K. Post
- Japan Post
- Australian Post
- Netherlands KIX Code
- Royal Mail 4 State Customer
- UPU FICS 4 State Postal
- USPS 4CB
Depth of Field:
- 0 mil - 4.50"@5 mil - Code 39
- 0 mil - 8.50"@10 mil - UPC/EAN
- 0 mil - 10.50"@13 mil - UPC/EAN
- 0 mil - 3.80"@6.60 mil - PDF417
- 0 mil - 4.70"@10 mil - Datamatrix

General Information

Product Type: Desktop Barcode Scanner
Brand Name: Motorola
Manufacturer: Motorola, Inc
Product Model: DS9208
Product Name: DS9208 Desktop Barcode Reader

Physical Characteristics

Height: 5.5"
Width: 3.2"
Depth: 3.2"
Color: Black
Weight (Approximate): 10 oz

Interfaces/Ports

Host Interface: IBM 46XX

Other

Green Compliant: Yes
Green Compliance Certificate/Authority: RoHS

Warranty

Limited Warranty: 3 Year

Extended Details
