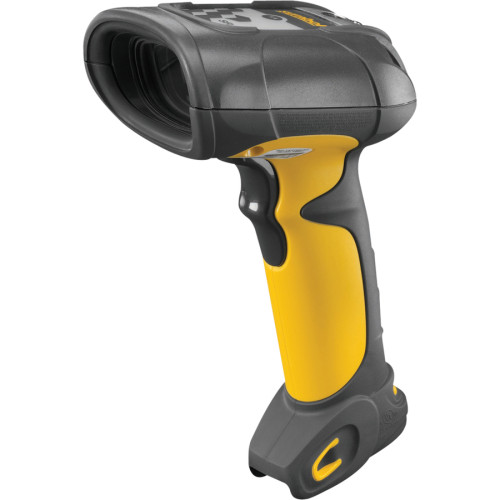

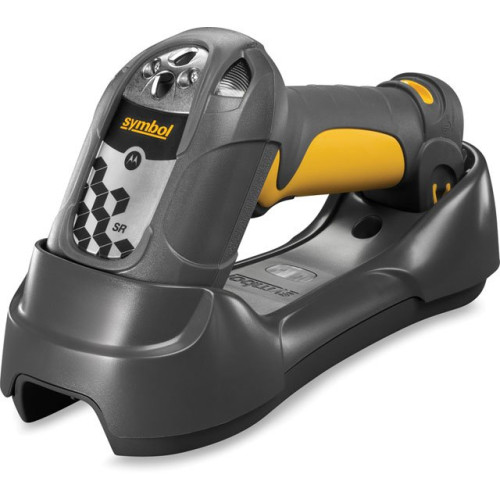

Motorola DS3578 Barcode Scanner Motorola DS3578 Barcode Scanner Motorola DS3578 Barcode Scanner
Motorola Barcode Scanner and Mobile Handheld Computer

Motorola DS3578 Barcode Scanner
Part #: DS3578-SRFU0100UR | SKU: MOT147419

The Motorola DS3578 Series of rugged, omnidirectional digital scanners bring comprehensive, high-performance data capture to harsh industrial environments, plus integrated Bluetooth provides cordless freedom, improving productivity.

Motorola DS3578 Barcode Scanner

Part Details: USB Kit - Cordless - 2D Imager -FIPS Security Encryption - Charging and Communication cradle - USB cable - Power supply - AC line cord
Need a different version of the Motorola DS3578 Barcode Scanner? View all 20 configurations

Additional Information

Color Yellow/Black
Communication Range No
Communication Type No
Connection USB
Connectivity No
Form Factor No
Included Cables USB
Manufacturer Motorola
Model Name DS3578
Product Condition No
Scan Pattern No
Scanner Capability 2D
Scanner Type Imager
Motorola DS3578 Specs Motorola DS3578 Specs (pdf)

Technical Information

  • Barcode Dimension:
    • 1D
    • 2D
  • Scan Pattern: Omni-directional
  • Connectivity Technology: Wireless
  • Light Source: LED
  • Image Sensor: CMOS
  • Barcode Symbology Supported:
    • 1D Symbologies:
    • UPC/EAN And With Supplementals
    • Code 39
    • Code 39 Full ASCII
    • Tri-optic Code 39
    • GS1 DataBar Variants
    • GS1-128
    • Code 128
    • Code 128 Full ASCII
    • Code 93
    • Codabar (NW1)
    • Interleaved 2 of 5
    • Discrete 2 of 5 MSI
    • Codell
    • IATA
    • Bookland EAN
    • Code 32
    • TLC-39
    • Aztec (Standard, Inverse)
    • MaxiCode
    • DataMatrix/ECC 200 (Standard, Inverse)
    • QR Code (Standard, Inverse, Micro)
    • 2D Symbologies:
    • TLC-39
    • Aztec (Standard, Inverse)
    • MaxiCode
    • DataMatrix/ECC 200 (Standard, Inverse)
    • QR Code (Standard, Inverse, Micro)
    • 1D Symbologies:
    • UPC/EAN And With Supplementals
    • Code 39
    • Code 39 Full ASCII
    • Tri-optic Code 39
    • GS1 DataBar Variants
    • GS1-128
    • Code 128
    • Code 128 Full ASCII
    • Code 93
    • Codabar (NW1)
    • Interleaved 2 of 5
    • Discrete 2 of 5 MSI
    • Codell
    • IATA
    • Bookland EAN
    • Code 32
    • TLC-39
    • Aztec (Standard, Inverse)
    • MaxiCode
    • DataMatrix/ECC 200 (Standard, Inverse)
    • QR Code (Standard, Inverse, Micro)
    • 2D Symbologies:
    • TLC-39
    • Aztec (Standard, Inverse)
    • MaxiCode
    • DataMatrix/ECC 200 (Standard, Inverse)
    • QR Code (Standard, Inverse, Micro)
  • Depth of Field:
    • 2.60" - 4.50"@4 mil - Code 39
    • 1" - 6.30"@5 mil - Code 39
    • 10.10"@7.50 mil - Code 39
    • 1" - 20.90"@20 mil - Code 39
    • 0.90" - 15.10"@13 mil - 100% UPC
    • 2.70" - 6.10"@6.67 mil - PDF417
    • 0.40" - 9.30"@10 mil - PDF417
    • 3.30" - 14.80"@15 mil - PDF417
    • 2.10" - 5.50"@7.50 mil - Data Matrix
    • 1.10" - 7.10"@10 mil - Data Matrix
    • 1.50" - 6.10"@10 mil - Qr Code

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: DS3578-SR
  • Product Name: DS3578-SR Handheld Barcode Scanner

Physical Characteristics

  • Height: 7.3"
  • Width: 4.8"
  • Depth: 2.9"
  • Color:
    • Twilight Black
    • Yellow
  • Weight (Approximate): 14.60 oz

Interfaces/Ports

  • Host Interface: USB

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Certifications & Standards:
    • UL 60950-1
    • CSA C22.2 nº 60950-1
    • EN60950-1/IEC 60950-1
    • EN60825-1
    • IEC 60825-1
    • 21CFR1040.10 CDRH Classe II
    • IEC Classe 2
    • Interférences FCC Partie 15 Classe B
    • ICES-003 Classe B
    • EN55022
    • EN55024
    • AS/NZS 4268:2008
    • Japan VCCI

Network & Communication

  • Bluetooth: Yes

Warranty

  • Limited Warranty: 3 Year

Battery Information

  • Battery Chemistry: Lithium Ion (Li-Ion)
Extended Details
