Additional Information
| Color | Yellow/Black |
|---|---|
| Communication Range | No |
| Communication Type | No |
| Connection | USB |
| Connectivity | No |
| Form Factor | No |
| Included Cables | No |
| Manufacturer | Motorola |
| Model Name | DS3578 |
| Product Condition | No |
| Ruggedness | No |
| Scan Pattern | No |
| Scanner Capability | 2D |
| Scanner Type | Imager |

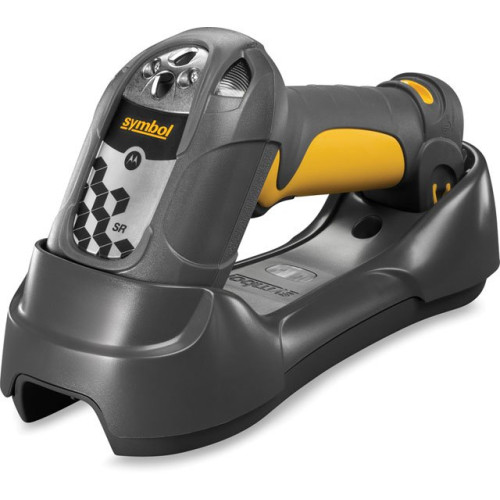

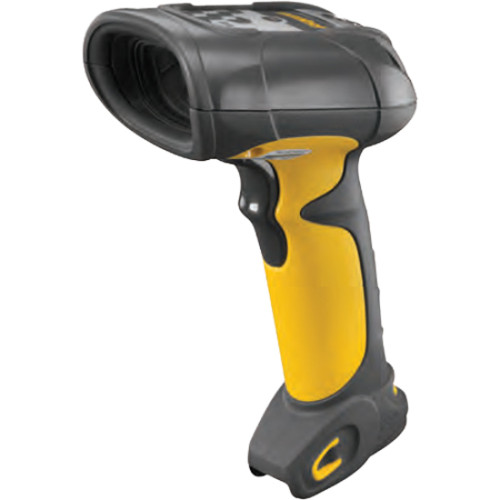

Motorola DS3578 Specs
Technical Information
- Barcode Dimension:
- 1D
- 2D
- Scan Pattern: Omni-directional
- Connectivity Technology: Wireless
- Image Sensor:
- Imager
- CMOS
- Barcode Symbology Supported:
- 1D Codes:
- UPC/EAN (UPCA/UPCE/UPCE1/EAN-8/EAN-13/ JAN-8/JAN-13 plus Supplementals, ISBN (Bookland), ISSN, Coupon Code)
- Code 39 (Standard, Full ASCII, Trioptic)
- Code 128 (Standard, Full ASCII, UCC/EAN-128, ISBT-128 Concatenated)
- Code 93
- Codabar/NW7
- Code 11 (Standard, Matrix 2 of 5)
- MSI Plessey
- I 2 of 5 (Interleaved 2 of 5 / ITF, Discrete 2 of 5, IATA, Chinese 2 of 5)
- GS1 DataBar (Omnidirectional, Truncated, Stacked, Stacked Omnidirectional, Limited, Expanded, Expanded Stacked, Inverse)
- Base 32 (Italian Pharmacode)
- PDF417 (And Variants):
- PDF417 (Standard, Macro)
- MicroPDF417 (Standard, Macro)
- Composite Codes (CC-A, CC-B, CC-C)
- 2D Codes:
- TLC-39
- Aztec (Standard, Inverse)
- MaxiCode
- DataMatrix/ECC 200 (Standard, Inverse)
- QR Code (Standard, Inverse, Micro)
- Postal Codes:
- U.S. Postnet
- U.S. Planet
- U.K. Postal
- Japan
- Postal
- Australian Postal
- Dutch Postal
- 4State Postal
- 1D Codes:
- UPC/EAN (UPCA/UPCE/UPCE1/EAN-8/EAN-13/ JAN-8/JAN-13 plus Supplementals, ISBN (Bookland), ISSN, Coupon Code)
- Code 39 (Standard, Full ASCII, Trioptic)
- Code 128 (Standard, Full ASCII, UCC/EAN-128, ISBT-128 Concatenated)
- Code 93
- Codabar/NW7
- Code 11 (Standard, Matrix 2 of 5)
- MSI Plessey
- I 2 of 5 (Interleaved 2 of 5 / ITF, Discrete 2 of 5, IATA, Chinese 2 of 5)
- GS1 DataBar (Omnidirectional, Truncated, Stacked, Stacked Omnidirectional, Limited, Expanded, Expanded Stacked, Inverse)
- Base 32 (Italian Pharmacode)
- PDF417 (And Variants):
- PDF417 (Standard, Macro)
- MicroPDF417 (Standard, Macro)
- Composite Codes (CC-A, CC-B, CC-C)
- 2D Codes:
- TLC-39
- Aztec (Standard, Inverse)
- MaxiCode
- DataMatrix/ECC 200 (Standard, Inverse)
- QR Code (Standard, Inverse, Micro)
- Postal Codes:
- U.S. Postnet
- U.S. Planet
- U.K. Postal
- Japan
- Postal
- Australian Postal
- Dutch Postal
- 4State Postal
- Depth of Field:
- 1.10" - 1.60"@3 mil - Code 39
- 3.50"@4 mil - Code 39
- 4.20"@5 mil - Code 39
- 5.40"@7.50 mil - Code 39
- 1.10" - 9.20"@20 mil - Code 39
- 0.80" - 6.20"@13 mil - 100% UPC
- 3.70"@6.67 mil - PDF417
- 4.50"@10 mil - PDF417
- 3.20" - 5.60"@15 mil - PDF417
- 1" - 2.10"@4 mil - Data Matrix
- 0.40" - 2.70"@5 mil - Data Matrix
- 3.50"@7.50 mil - Data Matrix
- 4.40"@10 mil - Data Matrix
- 1.10" - 1.40"@4 mil - QR Code
- 0.50" - 2.20"@5 mil - QR Code
- 3.30"@7.50 mil - QR Code
- 4"@10 mil - QR Code
General Information
- Product Type: Handheld Barcode Scanner
- Brand Name: Motorola
- Manufacturer: Motorola, Inc
- Product Model: DS3578
- Product Name: DS3578-HD Handheld Barcode Reader
Physical Characteristics
- Height: 7.3"
- Width: 4.8"
- Depth: 2.9"
- Color:
- Twilight Black
- Yellow
- Weight (Approximate): 13.79 oz
Interfaces/Ports
- Host Interface: Multi-interface
Network & Communication
- Bluetooth: Yes
Battery Information
- Battery Chemistry: Lithium Ion (Li-Ion)
