Replacement Part is Available

Wireless Access Points - Motorola AP 8163 - Outdoor Wireless Access Point - Wi-Fi Band - Requires Mounting and Power - Includes Radio Sensor

MSRP: $2,295.00 Price: $2,247.84

Product was successfully added to your shopping cart.

Continue Shopping

Motorola Barcode Scanner and Mobile Handheld Computer

Motorola AP 7161 Access Point
Part #: AP-7161-66S40-US | SKU: 147636

Perfect for extending network coverage to outside areas, the AP 7161 brings the latest 802.11n 3x3 MIMO tri-radio design together with the rugged outdoor performance. True perimeter security is provided using either a dedicated dual-band sensor or software mode for both 2.4GHz and 5GHz bands to deliver 24x7 rogue detection and termination. The AP 7161 is optimized with WiNG 5 intelligence at the edge extending QoS, security, and mobility services to the access point so you get better capacity and performance. The AP 7161 is ideal for industrial, enterprise campus, video surveillance, public safety, and smartgrid utility deployments to extend to the outdoors.

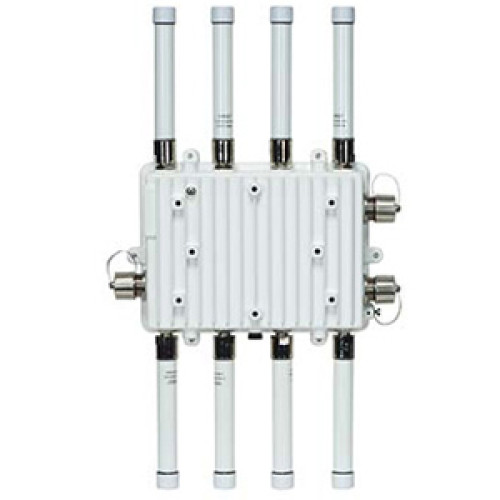

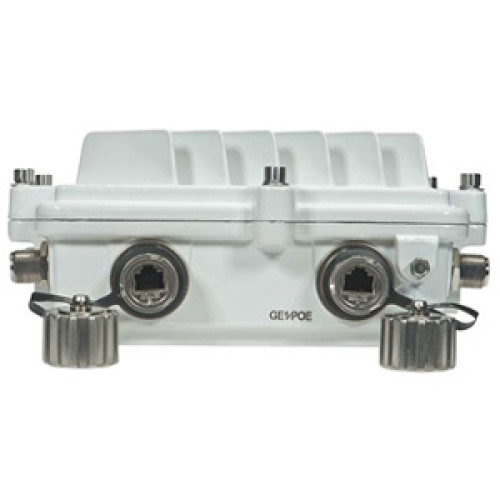

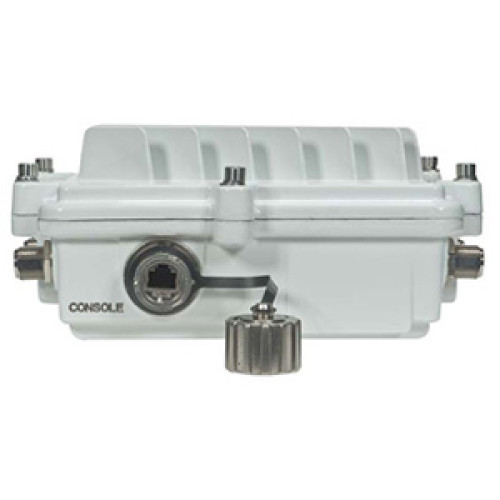

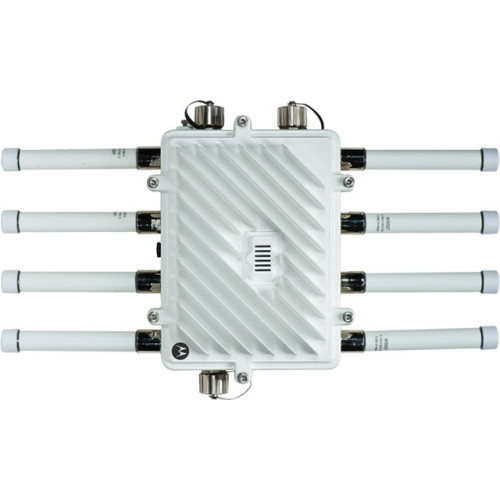

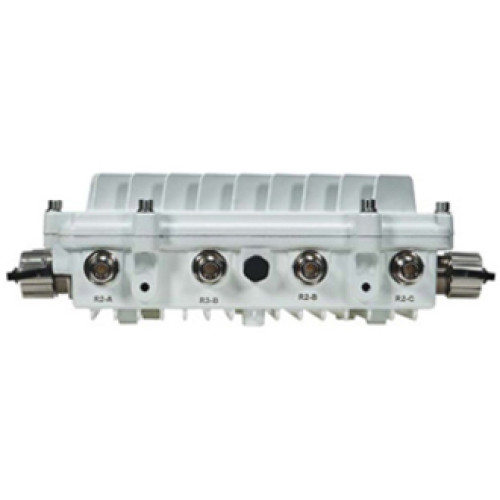

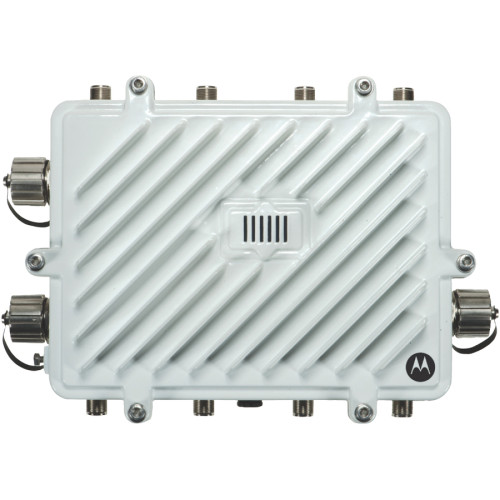

Motorola AP 7161 Access Point

Part Details: Zebra AP7161 IEEE 802.11n 300 Mbit/s Wireless Access Point - 1 x Network (RJ-45) - Ethernet, Fast Ethernet, Gigabit Ethernet - PoE Ports - Pole-mountable, Wall Mountable

Need a different version of the Motorola AP 7161 Access Point? View all 5 configurations

Additional Information

Antenna	No
Data Transfer Rate	No
Environment	No
MIMO	No
Manufacturer	No
Mesh	Yes
Model Name	AP 7161
Power	No
Product Condition	No
Radio Count	Dual
Wi-Fi Band	5GHz
Wireless Type	802.11a/b/g/n

AP 7161 Specs (pdf)

Technical Information

Wireless LAN Standard: IEEE 802.11n
ISM Band: Yes
UNII Band: Yes
ISM Minimum Frequency: 2.40 GHz
UNII Minimum Frequency: 4.94 GHz
Wireless Transmission Speed: 300 Mbps
ISM Maximum Frequency: 2.48 GHz
UNII Maximum Frequency: 5.83 GHz
Antenna Connector: N-Type
Features:
- MIMO Technology
- Quality of Service (QoS)
Wireless Security:
- WPA
- WPA2
- Stateful Firewall
- IP Filtering
- NAT
- IEEE 802.1x
- IEEE 802.11i

General Information

Product Type: Wireless Access Point
Brand Name: Motorola
Manufacturer: Motorola, Inc
Product Model: AP7161
Product Name: AP7161 Outdoor Mesh Access Point

Physical Characteristics

Height: 8.9"
Width: 12.6"
Depth: 3.9"
Form Factor:
- Pole-mountable
- Wall Mountable
Weight (Approximate): 6.40 lb

Interfaces/Ports

Ethernet Port: Yes
Fast Ethernet Port: Yes
Gigabit Ethernet Port: Yes
10Gigabit Ethernet Port: No
Number of Network (RJ-45) Ports: 1
PoE (RJ-45) Port: Yes
USB: No
VGA: No
Serial Port: No
Network (RJ-11): No
Powerline: No
Management Port: Yes

Other

Green Compliant: Yes
Green Compliance Certificate/Authority:
- RoHS
- WEEE
Certifications & Standards:
- IEEE 802.11a
- IEEE 802.11b
- IEEE 802.11g
- IEEE 802.11n
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3ab
- IEEE 802.3at
- IEEE 802.11i
- IEEE 802.1x
- IEEE 802.11e
- IEEE 802.1p
- FCC Title 47, part 15, part 90
- EN 301 489-17
- EN 301 893 v1.5.1 DFS
- EN 302 502 DFS
- EN 300 328
- IC
- UL 60950-1, -22
- CSA C22.2 No.60950-1-07, -22
- CB-IEC 60950 -1, 22
- EN 60950-1:2006+ A11:2009
- CE

Power Description

Input Voltage: 48 V DC
Power Source: AC Adapter

Management & Protocols

Management: DHCP

Warranty

Limited Warranty: 1 Year

Extended Details

Recommended Accessories for Model: Motorola AP 7161 Access Point

Motorola AP 7161 Access Point
Part #: AP-PSBIAS-7161-WW | SKU: 223493

Universal Wireless Accessories, POE Outdoor IP66 802.3AT 100-240 VAC INTL

MSRP: $249.00 Price: $246.35
Motorola AP 7161 Products
Part #: KT-158767-01 | SKU: 253328

VEHICULAR MOUNTING KIT FOR AP7161 VMM
Motorola AP 7161 Accessory
Part #: KT-147407-01 | SKU: 147637

Mounting Hardware Kit For AP 7161.
