Motorola AP 7131 Access Point Motorola AP 7131 Access Point
Motorola Barcode Scanner and Mobile Handheld Computer

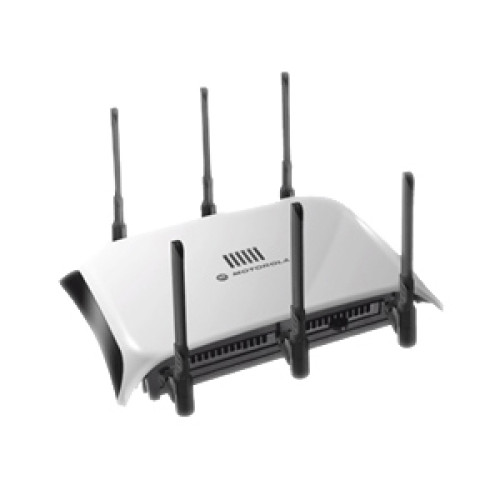

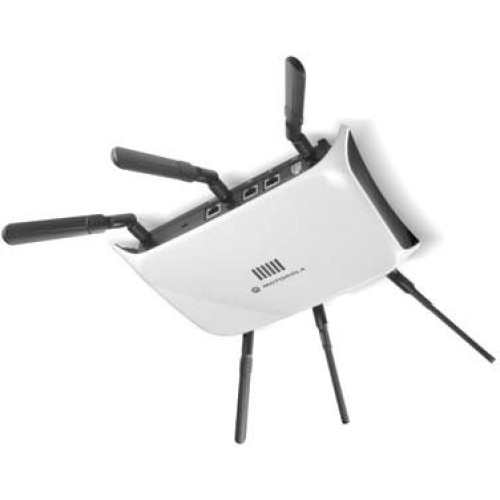

Motorola AP 7131 Access Point
Part #: AP-7131N-66E48-US | SKU: 80667

As a standalone access point, AP-7131 provides small and medium-sized businesses with a consolidated wired and wireless networking infrastructure, all in single device. The integrated router, gateway, firewall, DHCP and AAA Radius servers, VPN, hot-spot gateway, Power-over-Ethernet (PoE) simplify and reduce the costs associated with networking by eliminating the need to purchase and manage multiple pieces of equipment.

Motorola AP 7131 Access Point

Part Details: Zebra AP-7131 IEEE 802.11n 300 Mbit/s Wireless Access Point - 2 x Network (RJ-45) - Gigabit Ethernet - PoE Ports
Need a different version of the Motorola AP 7131 Access Point? View all 24 configurations

Additional Information

Antenna No
Antenna Gain No
Data Transfer Rate No
Environment No
MIMO No
Manufacturer No
Mesh Yes
Model Name AP 7131
Power No
Product Condition No
Radio Count Dual
Wi-Fi Band 5GHz
Wireless Type 802.11a/b/g/n
AP 7131 Specs AP 7131 Specs (pdf)

Technical Information

  • Wireless LAN Standard: IEEE 802.11n
  • ISM Band: Yes
  • UNII Band: Yes
  • ISM Minimum Frequency: 2.41 GHz
  • UNII Minimum Frequency: 5.15 GHz
  • Total Number of Antennas: 3
  • Wireless Transmission Speed: 300 Mbps
  • ISM Maximum Frequency: 2.46 GHz
  • UNII Maximum Frequency: 5.85 GHz
  • Antenna Connector: RP-SMA Connector
  • Wireless Security:
    • Intrusion Prevention System
    • AAA
    • IPSec
    • Stateful firewall
    • IP filtering
    • NAT
    • WPA2
    • WPA

General Information

  • Product Type: Wireless Access Point
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: AP-7131
  • Product Name: AP-7131 Wireless Access Point

Physical Characteristics

  • Height: 1.5"
  • Depth: 5.5"
  • Weight (Approximate): 2.67 lb

Interfaces/Ports

  • Gigabit Ethernet Port: Yes
  • Number of Network (RJ-45) Ports: 2
  • PoE (RJ-45) Port: Yes
  • Management Port: Yes

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Package Contents:
    • AP-7131 Wireless Access Point
    • 6 Element Facade Antenna Module
    • AP-7131 Wireless Access Point
    • 6 Element Facade Antenna Module
  • Additional Information:
    • 3X3 MIMO with 2 Spatial Streams
    • Reduced Interframe Spacing

Management & Protocols

  • Management:
    • DHCP
    • IEEE 802.1Q VLAN
    • IEEE 802.1p QoS
    • SNMPv3
    • Command line interface

Power Description

  • Power Source: AC Adapter
Extended Details
