Motorola AP 7131 Access Point Motorola AP 7131 Access Point
Motorola Barcode Scanner and Mobile Handheld Computer

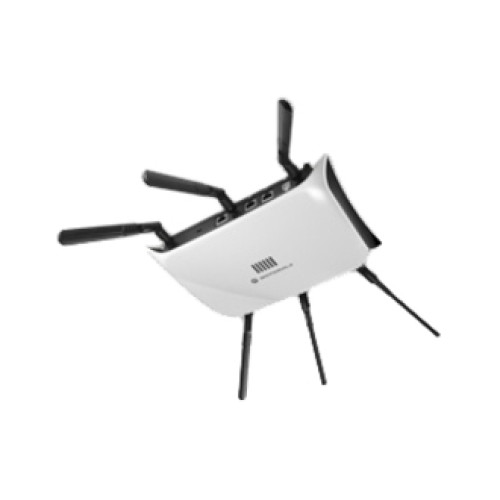

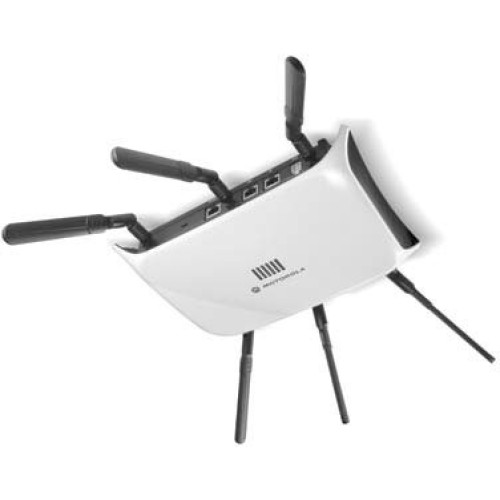

Motorola AP 7131 Access Point
Part #: AP-7131-60028-WR | SKU: 61862

As a standalone access point, AP-7131 provides small and medium-sized businesses with a consolidated wired and wireless networking infrastructure, all in single device. The integrated router, gateway, firewall, DHCP and AAA Radius servers, VPN, hot-spot gateway, Power-over-Ethernet (PoE) simplify and reduce the costs associated with networking by eliminating the need to purchase and manage multiple pieces of equipment.

Motorola AP 7131 Access Point

Part Details: Zebra AP-7131 Wireless Access Point - IEEE 802.11n (draft) 300Mbps - 2 x 10/100/1000Base-T
Need a different version of the Motorola AP 7131 Access Point? View all 24 configurations

Additional Information

Antenna No
Antenna Gain No
Data Transfer Rate No
Environment No
MIMO No
Manufacturer No
Mesh No
Model Name AP 7131
Power No
Product Condition No
Radio Count Single
Wi-Fi Band 5GHz
Wireless Type 802.11a/b/g/n
AP 7131 Specs AP 7131 Specs (pdf)

Technical Information

  • Wireless LAN Standard: IEEE 802.11n
  • ISM Band: Yes
  • UNII Band: Yes
  • ISM Minimum Frequency: 2.41 GHz
  • UNII Minimum Frequency: 5.15 GHz
  • Total Number of Antennas: 6
  • Wireless Transmission Speed: 300 Mbps
  • ISM Maximum Frequency: 2.47 GHz
  • UNII Maximum Frequency: 5.72 GHz
  • Antenna Connector: RP-SMA Connector
  • Wireless Security:
    • WPA
    • WPA2
    • 802.11i

General Information

  • Product Type: Wireless Access Point
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: AP-7131
  • Product Name: AP-7131 Wireless Access Point
  • Packaged Quantity: 1

Physical Characteristics

  • Height: 1.1"
  • Depth: 5.5"
  • Form Factor:
    • Ceiling Mountable
    • Wall Mountable
  • Weight (Approximate): 2.23 lb

Interfaces/Ports

  • Gigabit Ethernet Port: Yes
  • Number of Network (RJ-45) Ports: 2
  • PoE (RJ-45) Port: Yes
  • Management Port: Yes

Management & Protocols

  • Management:
    • Java web-based graphical user interface
    • CLI
    • VLAN
    • SNMP v3
    • DHCP
    • QoS

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Additional Information: Metal, plenum-rated housing (UL2043)

Power Description

  • Power Source: Power Supply
Extended Details
