Motorola AP 6521 Access Point Motorola AP 6521 Access Point Motorola AP 6521 Access Point Motorola AP 6521 Access Point Motorola AP 6521 Access Point
Motorola Barcode Scanner and Mobile Handheld Computer

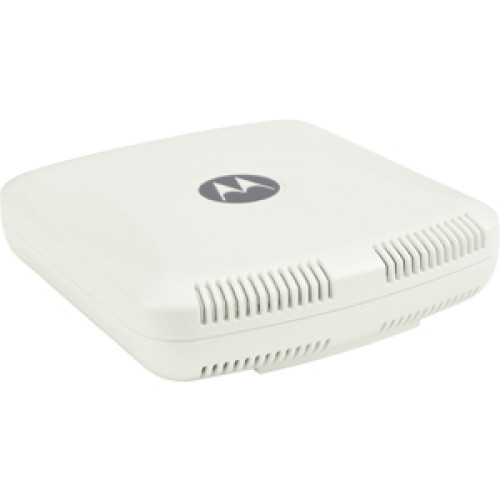

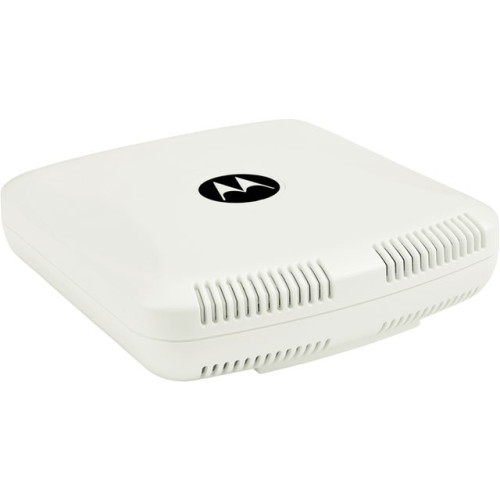

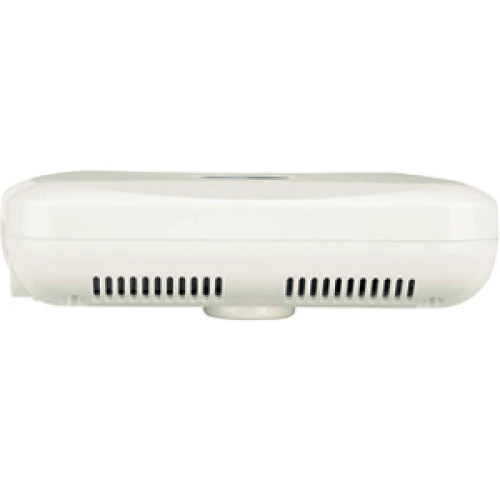

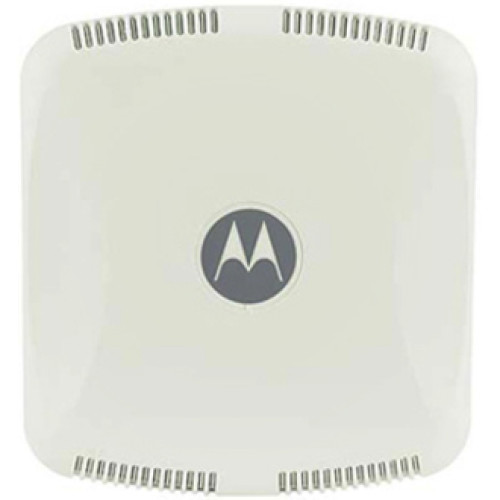

Motorola AP 6521 Access Point
Part #: AP-6521-60010-US | SKU: 148357

  • The SMART RF feature automatically optimizes power and channel selection so each user gets always-on high-quality access and mobility
  • Optimizes network availability through its central and pre-emptive intelligenc
  • Includes layer 2-7 stateful packet filtering firewall, AAA RADIUS services, Wireless IPS-lite, VPN gateway, and location-based access control
  • Requires no configuration or manual firmware maintenance
  • Device and network acceleration
  • Each AP 6521 access point can be virtualized into four unique VLANs, which can be customized to direct broadcast traffic to the intended recipient
  • Full 802.11n performance with standard 802.3af
  • Power-over-Ethernet (PoE) capable
  • Supports fast, secure roaming.
  • Executes and enforces the IDS/IPS security policies configured in the Motorola wireless switch, and can also be utilized as a 24x7 dedicated sensor with Wireless IPS

Motorola AP 6521 Access Point

Part Details: Wireless Access Points - Motorola AP 6521 - Indoor - Internal Antenna - 2.4GHz Wi-Fi Band - Must Order Power Supply Separately - For PoE Order AP-PSBIAS-2P2-AFR and 23844-00-00R or Direct to Wall Power Order PWRS-147376-01R
Need a different version of the Motorola AP 6521 Access Point? View all 9 configurations

Additional Information

Antenna No
Antenna Gain No
Data Transfer Rate No
Environment No
MIMO No
Manufacturer No
Model Name AP 6521
Power PoE
Product Condition No
Radio Count Single
Wi-Fi Band 2.4GHz
AP 6521 Specs AP 6521 Specs (pdf)

Technical Information

  • Wireless LAN Standard: IEEE 802.11n
  • ISM Band: Yes
  • UNII Band: Yes
  • ISM Minimum Frequency: 2.41 GHz
  • UNII Minimum Frequency: 5.18 GHz
  • Antenna Gain:
    • 3 dBi
    • 6 dBi
  • Total Number of Antennas: 3
  • Wireless Transmission Speed: 300 Mbps
  • ISM Maximum Frequency: 2.47 GHz
  • UNII Maximum Frequency: 5.83 GHz
  • Features:
    • MIMO Technology
    • Quality of Service (QoS)
  • Wireless Security:
    • AAA
    • RADIUS
    • Wireless IPS-Lite
    • VPN
    • Location-Based Access Control

General Information

  • Product Type: Wireless Access Point
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: AP 6521
  • Product Name: AP 6521 Wireless Access Point

Physical Characteristics

  • Height: 1.7"
  • Width: 7.5"
  • Depth: 9.5"
  • Form Factor:
    • Ceiling Mountable
    • Wall Mountable
  • Weight (Approximate): 2 lb

Interfaces/Ports

  • Ethernet Port: Yes
  • Fast Ethernet Port: Yes
  • Gigabit Ethernet Port: Yes
  • 10Gigabit Ethernet Port: No
  • Number of Network (RJ-45) Ports: 1
  • PoE (RJ-45) Port: Yes
  • USB: No
  • VGA: No
  • Serial Port: No
  • Network (RJ-11): No
  • Powerline: No
  • Management Port: No

Other

  • Certifications & Standards:
    • IEEE 802.11a
    • IEEE 802.11b
    • IEEE 802.11g
    • IEEE 802.11n
    • IEEE 802.3
    • IEEE 802.3u
    • IEEE 802.3ab
    • IEEE 802.3af
    • IEEE 802.1Q
    • FCC
    • IC
    • CE

Power Description

  • Input Voltage: 57 V DC
  • Power Source: AC Adapter

Management & Protocols

  • Management: VLAN
Extended Details

Recommended Warranties for Model: Motorola AP 6521 Access Point

  • Motorola AP 6521 Service Contract
    Part #: AXB-AP6521E-10 | SKU: 310010

    Service Contract - 1 Year, Advanced Exchange. Includes Comprehensive Coverage. Available only in NA, LACR and APME. Check datasheet for regional availability.

  • Motorola AP 6521 Service Contract
    Part #: SXB-AP6521E-30 | SKU: 310016

    Service Contract - 3 Year, Service from the Start Advanced Exchange. Includes Comprehensive Coverage. Available in NA, LACR and APME only. Check datasheet for regional availability.
