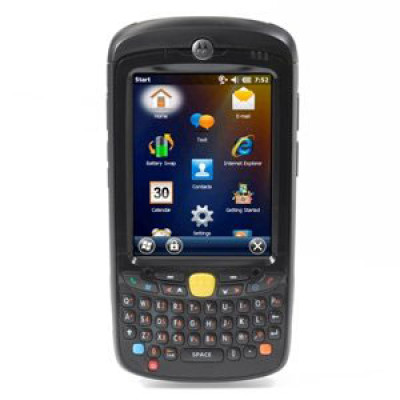

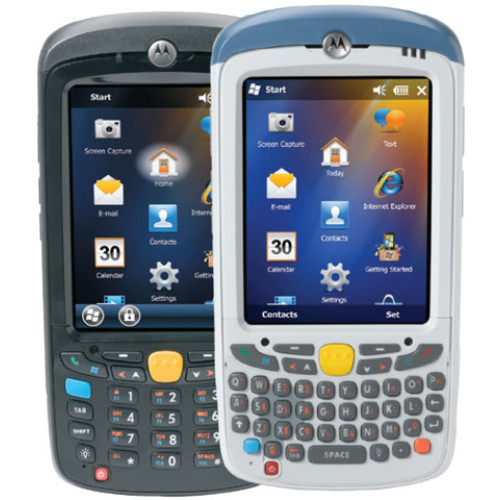

Motorola MC55N0 Mobile Computer

2-D Imager Engine
Illumination element (LED)
625 nm ± 5 nm

Sensor resolution
752 H x 480 V pixels (gray scale)

Roll
360°

Pitch angle
± 60° from normal

Skew tolerance
± 60° from normal

Ambient light immunity
Total darkness to 9,000 ft. candles/96,900 lux

Aiming element (VLD)
655 nm ± 10 nm

Field of View
Horizontal: 40°; Vertical: 25°

Ranges
SR Focus Range, Near/Far:
5 mil Code 39: 2.1 in. (53 mm) / 7.5 in.(191 mm)
100% UPC/EAN: 1.6 in. (41 mm) / 15.5 in. (394 mm)
6.7 mil PDF417: 3.4 in. (86 mm) / 7.1 in.(180 mm)

DL Focus Range, Near/Far:
5 mil Code 39: 1.4 in. (36 mm) / 7.3 in.(185 mm)
100% UPC/EAN: 1.6 in. (41 mm) / 12 in. (305 mm)
5 mil PDF417: 2.8 in.(71 mm) / 4.5 in. (114 mm)

CCD Camera
Lens
Auto-focus

Communications
Network connections
Full-speed USB, host or client

Data Capture Options
Camera resolution
3.2 megapixel

Linear 1-D Scanner
Optical resolution
0.005 in. minimum element width

Roll
± 35° from vertical

Pitch angle
± 65° from normal

Skew tolerance
± 40° from normal

Ambient light
Sunlight: 10,000 ft. candles (107,460 lux)
Artificial Light: 450 ft. candles (4,844 lux)

Scan rate
104 (± 12) scans/sec (bi-directional)

Scan angle
Scan Angle (typical)*
Wide: (Default) 47°; Medium: 35°; Narrow: 10°

Performance Characteristics
Processor (CPU)
Marvell™ PXA 320 @ 806 MHz processor

Operating system (OS)
Microsoft Windows Mobile 6.5 Classic Edition

Memory
256 MB RAM/1 GB Flash

Data capture options
Multiple configurations available:
1-D SE960 laser scanner
2-D SE4500-SR imager
2-D SE4500-DL imager
3.2 megapixel color camera option available

Physical Characteristics
Dimensions (HxWxD)
With rechargeable 2400 mAh Lithium Ion battery: 5.78 in. L x 3.03 in. W x 1.06 in. D (147 mm L x 77 mm W x 27 mm D)

Weight
11.1 oz./315 g (with rechargeable 2400 mAh Lithium Ion battery)

Display type
3.5 in Color VGA, super bright 900 NITS

Touch panel
Glass analog resistive touch

LED backlight
Yes

Expansion slot
Micro SD card slot (supports up to 32GB)

Notification
Vibrator, Audible tone plus multi-color LEDs

Keypad options
Numeric, QWERTY, AZERTY and QWERTZ

Audio options
Microphone, Receiver, Speaker, Bluetooth

Power
Backup battery
Rechargeable NiMH battery, 18mAh 2.4V (not user accessible)

Battery
Rechargeable Lithium Ion 3.7V, 2400 mAh Smart Battery User Profiles: Minimally 8 hours based on 600 scans and WLAN transmits per hour with display on and standard capacity battery

Extended capacity battery
Rechargeable Lithium Ion 3.7V, 3600 mAh Smart Battery

Regulatory Specifications
Radio
Quad-mode IEEE ® 802.11a/b/g/n

User Environment
Operating temperature
14° F to 122° F/-10° C to 50° C

Storage temperature
-40° F to 158° F/-40° C to 70° C

Humidity
95% non-condensing

Drop specification
Multiple 6 ft./1.8 m drops per MIL-STD 810G specifications

Tumble specifications
1000 1.6 ft./0.5 m tumbles (equivalent to 2, 000 hits) per IEC tumble specifications

Environmental sealing
IP64

Electrostatic discharge (ESD)
15KV Air 8KV Touch
