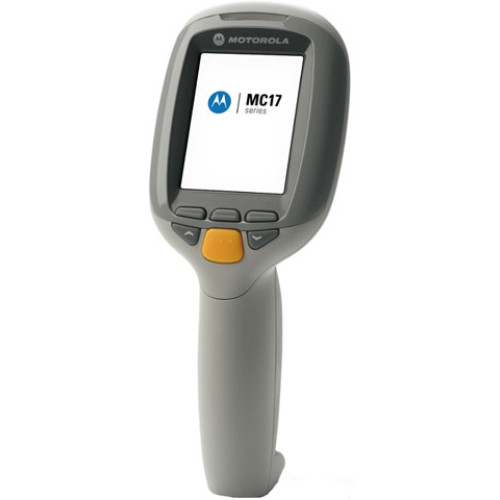

Motorola MC17A Mobile Computer

The updated Motorola MC17A uses 802.11a/b/g Wi-Fi WLAN and a touch screen interface to give retailers a unique opportunity to strengthen the customer relationship, delivering highly effective promotions targeted to each individual's buying habits and preferences. The flexible device doubles as a productivity tool for store associates, supporting a wide variety of applications - from stock and price checks, to mark downs, line busting and more. And based on open standards, the MC17A delivers reduced development costs, rapid deployment, and easy real-time integration with POS systems.

Discontinued - Need Assistance

See all options

Specs & Info
All Options

Motorola MC17A Specs (pdf)

Communications

WLAN
Wi-Fi IEEE 802.11 a/b/g

USB 1.1 client for Microsoft Activesync

Processor (CPU)

MC17A - High performance Intel PXA270; 32 bit; 312 MHz; MC17T - Intel PXA270; 32 bit; 520 MHz

Light source

Memory

64 MB RAM; 64 MB Flash ROM (MC17T only - 1GB SD Storage)

Scan rate

100 scans/sec

Operating system (OS)

Microsoft Windows CE 5.0 Professional Version

Physical Characteristics

Weight
9.52 oz (270 g)
Display type
Color 2.8 inch 320 x 240 QVGA (MC17A:non-touch screen & MC17T:touch screen)
Keyboard
6 fully programmable keys
Dimensions (HxWxD)
2.3 x 8.11 x 3.2 in. (5.9 x 20.6 x 8.1 cm) H x W x D

Power

Battery
Rechargeable 2400 mAh Li-ION battery pack
Larger capacity battery (LCB)
Provides up to eight hours of continuous operation

Regulatory Specifications

Environmental
RoHS Directive 2002/95/EEC

User Environment

Ambient lighting tolerance¹
Tolerant to typical artificial indoor and natural outdoor (direct sunlight) lighting conditions. Fluorescent, Incandescent, Mercury Vapor, Sodium Vapor, LED : 450 Ft Candles (4, 844 Lux) Sunlight: 8000 Ft Candles (86, 111 Lux)

Humidity

90% relative humidity at 50°C, noncondensing

Storage temperature

4° to 140°F (-20° to 60°C)

Drop specification

Multiple 4 ft. (1.2 m) drops to tile over concrete

Operating temperature

32° to 104°F (0° to 40°C)

Extended Details

Refine Your Options

Shop By

Scanner Capability

1D (2)

Network Connectivity

802.11g (2)

Scanner Type

Laser (2)

Data Collection Type

Wireless (2)

Keypad

6 Keys (2)

Motorola MC17A Mobile Computer
Part #: MC17A-00 | SKU: MOT69163

MC17A, 802.11a/B/G Wlan, 64ram/64rom, Windows CE 5.0 Professional
Motorola MC17A Mobile Computer
Part #: MC17A-00-DEVKIT | SKU: 76235

MC17A, MC17 Wireless Self-Scanning Terminal (Kit, MC17a, Cradle, Psu, Lncd, Pcbl, Key, Dev, Non-Touch and USB)
Motorola MC17A Mobile Computer
Part #: MC17A-00-DEVKIT-ES | SKU: 182324

MC17A, MC17 Wireless Self-Scanning Terminal (Kit, MC17a, Cradle, Psu, Lncd, Pcbl, Key, Dev, Non-Touch and USB)

Recommended Accessories for Model: Motorola MC17A Mobile Computer

Symbol MC3000 Accessory
Part #: 25-68596-01R | SKU: 26249

USB Client Communication Cable

Price: $27.46

See Price in Cart (Why?)
Motorola ET1 Enterprise Power Device
Part #: 23844-00-00R | SKU: 26223

US AC Line Cord - 7.5' Length - Compatible with power supplies (Part# KT-14000-148R), (Part# 50-14000-241R), and (Part# PWRS-14000-148R)

Price: $22.21

See Price in Cart (Why?)
Motorola ET1 Enterprise Power Device
Part #: PWR-BGA12V108W0WW | SKU: 458526

AC/DC Power Supply (Brick). AC Input: 100-240V, 2.8A. DC Output: 12V, 9A, 108W. Requires: DC line cord and Country specific grounded AC line cord.

$139.73

See Price in Cart (Why?)
Motorola MC17 Series Power Device
Part #: 50-16000-220R | SKU: 29313

Cord (Power, 18AWG, 6A, 250V, Europe)

Price: $21.77

See Price in Cart (Why?)
Motorola MC17 Series Battery
Part #: BTRY-MC17RAB0E-50 | SKU: 101309

Zebra Handheld Computer Battery - For Handheld Device - Battery Rechargeable - 2400 mAh - Lithium Ion (Li-Ion) - 50
