- Innovative hybrid design for ease of use for both hands-free and handheld scanning
- Comprehensive data capture: 1D, 2D and PDF417 symbologies, image capture, and signature capture
- EAS compatible
- Omnidirectional scanning with a wide working range
- Withstands multiple 5 ft./1.5m drops to concrete
- Swipe speed programmable up to 100 ips
- Flexible working range
- Supports RSM (Remote Scanner Management)
- Multiple on-board interfaces with universal cable compatibility
- Extra loud beeper
- Extra large LED indicator
- Rubberized handle
- Recessed connector in the base to minimize scanner footprint
Motorola DS9808 Specs
PHYSICAL CHARACTERISTICS
| Color | Twilight black |
|
|
|
| Corded | Yes |
|
|
|
| Dimensions | 8 in. (max) H x 5.4 in. L x 3.4 in. W; 20.3 cm (max) H x 13.7 cm L x 8.6 cm W |
|
|
|
| Hands-free | Yes |
|
|
|
| Voltage and current | Nominal (without optional RFID module): 5 ?10%VDC @ 450 mA; Nominal (with optional RFID module): 5 ?10%VDC @ 1.2 A |
|
|
|
| Weight | 12 oz./340 g |
|
|
|
PERFORMANCE CHARACTERISTICS
| Decode capability | 1D/2D/PDF417, See data sheet for full list of supported symbologies |
|
|
|
| Depth of field | See nominal working range charts on spec sheet |
|
|
|
| Interfaces supported | IBM, Keyboard wedge, RS-232, Synapse, USB |
|
|
|
| Minimum resolution | |
|
|
|
| Pitch | +/- 65 deg |
|
|
|
| Roll (Tilt) | 360deg |
|
|
|
| Scan pattern | Omni-directional |
|
|
|
| Skew (Yaw) | +/- 60 deg |
|
|
|
| Technology | Imager |
|
|
|
REGULATORY SPECIFICATIONS
| EMC | EN 55022, FCC Part 15 Class B, ICES 003 Class B, EN 55024, EN 61000-3-2, EN 61000-3-3 |
|
|
|
| Electrical Safety | EN 60950-1, C22.2 No. 60950-1, UL 60950-1, IEC 60950-1 |
|
|
|
| Environmental | RoHS Directive 2002/95/EEC |
|
|
|
| Laser Safety | EN 60825-1, IEC 60825-1, 21CFR1040.10 |
|
|
|
USER ENVIRONMENT
| Ambient light immunity | Incandescent - 150 ft. candles (1,600 Lux), Sunlight - 8,000 ft. candles (86,000 Lux), Fluorescent - 150 ft. candles (1,600 Lux), Mercury Vapor - 150 ft. candles (1,600 Lux), Sodium Vapor - 150 ft. candles (1,600 Lux), Immune to normal or artificial light |
|
|
|
| Drop specifications | Withstands multiple 5 ft./1.5m drops to concrete |
|
|
|
| Operating temperature | 32? to 104? F/0? to 40? C |
|
|
|
| Storage temperature | |
|
|
|
WARRANTY
| Scanner warranty | 36 months from date of shipment. See the complete warranty for details. |
|
|
|
Refine Your Options
Shop By
Shopping Options
-
Form Factor
-
Scanner Capability
-
Ruggedness
-
Included Cables
-

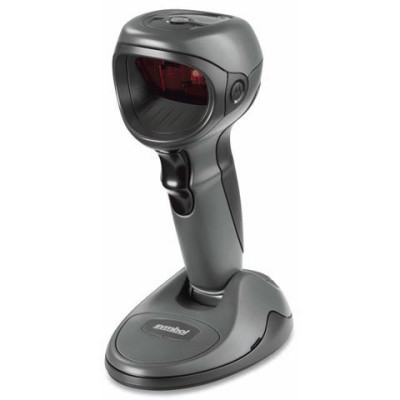

Motorola DS9808 Barcode Scanner
Part #: DS9808-SR7NNR01AR | SKU: 69752Symbol DS9808, Serial Kit, 2D Imager, Standard Focus. Includes RS-232 cable and power supply. -
Motorola DS9808 Barcode Scanner
Part #: DS9808-SR7NNR36ZR | SKU: 90270Symbol DS9808, DS9808 Hybrid Presentation Imager Kit (DS9808 - RS-232 Kit) - Custom Kit For Radiant. -
Motorola DS9808 Barcode Scanner
Part #: DS9808-LL20007CRWR | SKU: 69771Symbol DS9808, DS9808 Lr Eas RFID Dl Parallel -
Motorola DS9808 Barcode Scanner
Part #: DS9808-SR7NNM07ZR | SKU: 69753Symbol DS9808, Kit: Standard Range, Twilight Black, Ibm 468x/9x Port 17 (7 ft. Straight) Cable (Part# Cba-M07-S07zar) -
Motorola DS9808 Barcode Scanner
Part #: DS9808-SR7NNM04ZR | SKU: 69754Symbol DS9808, Kit: Standard Range, Twilight Black, Ibm 468x/9x Port 5b (7 ft. Straight) Cable (Part# Cba-M04-S07zar) -
Motorola DS9808 Barcode Scanner
Part #: DS9808-LR7NNR01AR | SKU: 69762Symbol DS9808, Kit DS9808-Lr Kit - RS-232 -
Motorola DS9808 Barcode Scanner
Part #: DS9808-LR7NNK01AR | SKU: 69763Symbol DS9808, Kit: Long Range, Twilight Black, Keyboard wedge Ps/2 Cable (Part# Cba-K01-S07par), North America/Japan Power Adapter, 100 - 240v Power supply (Part# Pwrs-14000-253r) -
Motorola DS9808 Barcode Scanner
Part #: DS9808-LR7NNM07ZR | SKU: 69764Symbol DS9808, Kit: Long Range, Twilight Black, Ibm 468x/9x Port 17 (7 ft. Straight) Cable (Part# Cba-M07-S07zar) -
Motorola DS9808 Barcode Scanner
Part #: DS9808-LR7NNM04ZR | SKU: 69765Symbol DS9808, Kit: Long Range, Twilight Black, Ibm 468x/9x Port 5b (7 ft. Straight) Cable (Part# Cba-M04-S07zar) -
Motorola DS9808 Barcode Scanner
Part #: DS9808-LR7NNM01ZR | SKU: 69766Symbol DS9808, (DS9808-Lr7nnm01zr) Barcode Reader
Recommended Accessories for Model: Motorola DS9808 Barcode Scanner
-
Symbol Cables Accessory
Part #: CBA-U15-S15ZAR | SKU: 29346Cable, 15' PoweredUSB cable, Straight, Call to purchase.$66.94 -
Symbol Cables Accessory
Part #: CBA-U12-C09ZAR | SKU: 30850(9 feet, USB, Dark gray, MAX, CLD)$43.45 -
Symbol Cables Accessory
Part #: CBA-U03-S07ZAR | SKU: 26307(7 Feet Straight, USB, Power Plus CONN)$49.32 -
Symbol Cables Accessory
Part #: CBA-R28-C09ZAR | SKU: 26298(9 feet, Verifone, Ruby, True, RS-232, CL)$45.80 -
Symbol Cables Accessory
Part #: CBA-R31-C09ZAR | SKU: 37715Cable, 9 feet, RS-232, For Ncr7448$117.43
Recommended Warranties for Model: Motorola DS9808 Barcode Scanner
-
Symbol DS9808 Service Contract
Part #: Z1BE-DS9808-1000 | SKU: 463562Zebra OneCare for Enterprise Essential - 1 Year Extended Service - Service - Maintenance - Parts & Labor - Physical, Electronic Service$66.15 -
Symbol DS9808 Service Contract
Part #: Z1BS-DS9808-1C03 | SKU: 463749Zebra OneCare Select with Comprehensive Coverage - 1 Year Extended Service - Service - Exchange - Physical, Electronic Service$73.50 -
Symbol DS9808 Service Contract
Part #: Z1RS-DS9808-2C03 | SKU: 464171Zebra OneCare Select with Comprehensive Coverage - 2 Year Extended Service (Renewal) - Service - Exchange - Physical, Electronic Service$127.05 -
Symbol DS9808 Service Contract
Part #: Z1AS-DS9808-3C03 | SKU: 464172Zebra OneCare Select with Comprehensive Coverage - 3 Year Extended Service - Service - 24 x 7 Next Business Day - Exchange - Physical, Electronic$59.85 -
Symbol DS9808 Service Contract
Part #: SCE-DS9808-10 | SKU: 370708Service Contract - 1 year, Zebra OneCare Service Center Essential. Does not include Comprehensive Coverage.
