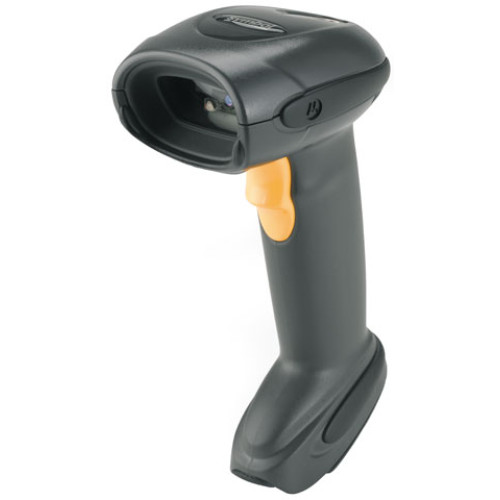

Motorola DS6878-DL Barcode Scanner
Motorola Barcode Scanner and Mobile Handheld Computer

Motorola DS6878-DL Barcode Scanner

Motorola DS6878-DL Barcode Scanner

The Motorola DS6878-DL cordless 2D imager offers the complete data capture functionality required to streamline and error-proof everyday processes. Comfortable and easy-to-use, this single device can capture all common bar codes (1D, 2D and PDF417) on labels as well as on mobile phone displays. The on-board Driver's License parsing agent enables instant decoding of bar coded information on driver's licenses to support a wide variety of value-added applications. The optional hands-free presentation cradle enables additional advanced capabilities: signature, document and photo capture, optical character recognition (OCR) to capture text in documents, and MICR to capture numeric information on the bottom of checks.
Discontinued - Need Assistance
See all options
  • Captures 1-D, 2D and PDF417 barcodes
  • Bluetooth v2.1 with EDR wireless connectivity
  • Rapid and accurate capture of poor quality and damaged barcodes - full omnidirectional scanning
  • Embedded drivers license parsing agent
  • Superior durability
  • Lightweight ergonomic design
  • Flexible horizontal or vertical mounting
  • USB charging
  • RSM (Remote Scanner Management) Ready
Motorola DS6878-DL Specs Motorola DS6878-DL Specs (pdf)

Imaging characteristics

Image resolution (pixels)
120 DPI on a 4 in. x 6 in. (10.2 x 15.2 cm) document @ 6.5 in./16.5 cm

Notices and disclaimers

See footnote1

Performance characteristics

Decode capability
1-D/2-D/PDF417; includes driver license parsing

Interfaces supported
IBM, Keyboard wedge, RS-232, USB, Wand

Pitch2
±60°

Roll (Tilt)3
360°

Skew (Yaw)4
±60°

Depth of field
25.4° V x 39.2° H

Scan pattern
Omnidirectional

Technology
Imager

Physical characteristics

Cordless
Yes

Dimensions
7.3 in. H x 3.85 in. L x 2.7 in. W / 18.5 cm H x 9.7 cm L x 6.9 cm W

Voltage and current5
5 +/-10% VDC; with external power - 700 mA charging/260 mA non-charging 5 +/-10% VDC; with host power through cable - 490 mA charging/260 mA non-charging

Color
Twilight black, Cash register white

Handheld
Yes

Weight
8.4 oz. (238 gm)

Regulatory Specifications

EMI/RFI
IEC 60601-1-2, FCC Part 15 Class B, ICES 003 Class B

Environmental
RoHS Directive 2002/95/EEC

Electrical safety
UL 60950-1, C22.2 No. 60950-1, EN 60950-1, IEC 60950-1

Laser/LED safety
EN 60825-1, IEC 60825-1, 21CFR1040.10

User Environment

Ambient lighting tolerance
Immune to normal artificial indoor and natural outdoor (direct sunlight) lighting.

Operating temperature
32° to 122° F / 0° to 50° C

Drop specifications
Withstands multiple 6 ft. (1.8m) drops to concrete

Storage temperature
-40° to 158° F / -40° to 70° C

Extended Details
Refine Your Options
Shop By
Shopping Options
Scanner Capability
  1. 2D (4)
Ruggedness
  1. General Purpose (1)
Included Cables
  1. USB (1)
  1. Motorola DS6878-DL Barcode Scanner

    Motorola DS6878-DL Barcode Scanner
    Part #: DS6878-DL20001WR | SKU: 92690

    DS6878-DL, SCANNER ONLY. Cordless 2D Imager with Embedded Driver's License Parsing firmware. Requires Radio/Charging Cradle (CR0078-SC10007WR) and USB Cable (CBA-U01-S07ZAR). Power supply Optional. Color: White.
  2. Motorola DS6878-DL Barcode Scanner

    Motorola DS6878-DL Barcode Scanner
    Part #: DS6878-DL20007WR | SKU: 90267

    DS6878-DL, SCANNER ONLY. Cordless 2D Imager with Embedded Driver's License Parsing firmware. Requires Radio/Charging Cradle (CR0078-SC10007WR) and USB Cable (CBA-U01-S07ZAR). Power supply Optional. Color: Black.
  3. Motorola DS6878-DL Barcode Scanner

    Motorola DS6878-DL Barcode Scanner
    Part #: DS6878-HD20007WR | SKU: 92691

    Cordless 2D Imager (Cordless, Bluetooth, Near Focus For Small High Density Barcodes) - Color: Twilight Black
  4. Motorola DS6878-DL Barcode Scanner

    Motorola DS6878-DL Barcode Scanner
    Part #: DS6878-TDBU0100ZWR | SKU: 206310

    USB Kit - Cordless - 2D Imager - Driver's License Parsing - Charging and Communication base - USB cable - Color: Black
