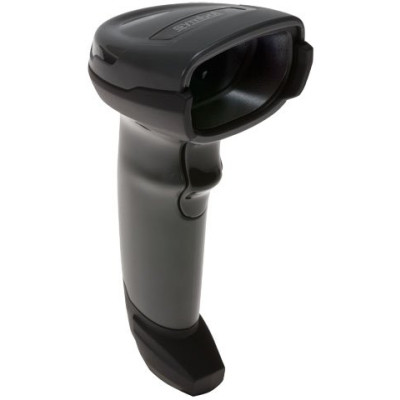

Motorola Symbol DS4308 Barcode Scanner

Motorola Symbol DS4308 Barcode Scanner

The DS4308 is a feature-rich next generation 2D imager that resets the bar for scanning performance, scanning range, versatility and easeof-use. Workers can capture virtually any barcode faster than ever, whether it is displayed on a smartphone, tablet or computer or printed on a label - even if it is scratched, damaged or dirty. Its small and lightweight design offers the ergonomics your workers need for all day comfort in the most scan intensive jobs. A variety of models meet a wide range of business needs - from the Point-of-sale in a retail store to the light industrial manufacturing production line. Regardless of which model you choose, you get one powerful scanner that does the job of two. The standard Range (SR) model offers an extraordinary range, eliminating the need to purchase separate standard and extended range scanners. The High Density (HD) model scans standard barcodes as well as the tiny, dense barcodes commonly found on jewelry tags, consumer electronics and electronic components - eliminating the need to purchase separate standard and high density specialty scanners. And driver's license parsing can be added to either model. The result? An extraordinary feature set and an extraordinary value.
Discontinued - Need Assistance
See all options
  • PRZM Intelligent Imaging technology for next generation performance
  • Scans 1-D, 2D and PDF417 barcodes printed on paper labels or displayed on mobile devices or computer screens
  • Delivers the resolution required for longer distance scanning, clear photos, sharp signatures and more accurate OCR data
  • Largest "sweet spot"

Performance Characteristics

Technology
Imager

Skew (Yaw)1
± 60° or greater

Roll (Tilt)2
0 - 360°

Pitch3
± 65° or greater

Print contrast
20% minimum reflective difference

Interfaces supported
Keyboard wedge, RS-232, USB, SSI, RS485 (IBM46xx)

Decode capability
See data sheet for full list of supported symbologies, 1D/2D

Physical Characteristics

Weight
5.71 oz. / 162 g (w/o cable)

Handheld
Yes

Dimensions
6.48 in. H x 3.86 in. L x 2.64 in. W 16.5 cm H x 9.8 cm L x 6.7 cm W)

Corded
Yes

Regulatory Specifications

EMI/RFI
FCC Part 15 Class B, ICES 003 Class B, EN 55024, EN 55022 Class B

Environmental
Compliant with RoHS directive 2011/65/EU

Electrical Safety
EN 60950-1, CSA C22.2 No. 60950-1 2nd ed., UL60950-1 2nd ed, IEC60950-1 2nd ed

User Environment

Ambient lighting tolerance
Immune to normal indoor lighting up to 1600 Lux; immune to sunlight up to 86, 000 Lux

Storage temperature
-40° F to 158° F/-40° C to 70° C

Operating temperature
32° F to 122° F/0° C to 50° C

Humidity
5% to 95%, non-condensing

Drop specifications
Withstands multiple 6 ft./1.83 m drops to concrete

Extended Details
Refine Your Options
Shop By
Shopping Options
Manufacturer
  1. Zebra (27)
Scanner Capability
  1. 2D (2)
Ruggedness
  1. General Purpose (1)
Included Cables
  1. USB (1)
  1. Motorola Symbol DS4308 Barcode Scanner
    Part #: DS4308-DL00007ZZWW | SKU: MOT306623

    Zebra DS4308 Handheld Scanner - Cable Connectivity - 1D, 2D - Imager - White
  2. Motorola Symbol DS4308 Barcode Scanner
    Part #: DS4308-HD7U2100SGW | SKU: MOT306640

    USB/Stand kit - 2D Imager - High Density - Color: Black - Includes USB interface cable and stand.
  3. Motorola Symbol DS4308 Barcode Scanner
    Part #: DS4308-SR6U2100AZW | SKU: MOT306657

    Zebra DS4308-SR Handheld Barcode Scanner - Cable Connectivity - 1D, 2D - Imager - White
  4. Motorola Barcode Scanner
    Part #: DS4308-HL7R0110SGN | SKU: 306646

    Symbol DS4308, RS-232/Stand kit. 2D Imager, Driver's License Parsing, High Density. Color: Black. Includes RS-232 interface cable, US power supply, and stand.
  5. Motorola Symbol DS4308 Barcode Scanner
    Part #: DS4308-SR7R0110SGN | SKU: MOT306664

    Zebra DS4308 Handheld Scanner - Cable Connectivity - 1D, 2D - Imager - Black
  6. Motorola Symbol DS4308 Barcode Scanner
    Part #: DS4308-SR7U2100AZW | SKU: MOT302661

    USB Kit - 2D Imager - Standard Focus - USB cable - Color: Black
  7. Motorola Symbol DS4308 Barcode Scanner
    Part #: DS4308-DL6U2100SGW | SKU: MOT306627

    Zebra DS4308-DL Handheld Barcode Scanner - Cable Connectivity - 1D, 2D - Imager - White
  8. Motorola Symbol DS4308 Barcode Scanner
    Part #: DS4308-HD7R0110SGN | SKU: MOT306636

    Zebra DS4308 Handheld Scanner - Cable Connectivity - 1D, 2D - Imager - Black
  9. Motorola Symbol DS4308 Barcode Scanner
    Part #: DS4308-SR7U2100SGW | SKU: MOT302673

    USB Stand Kit - 2D Imager - Standard Range - Includes USB cable and stand.
  10. Motorola Symbol DS4308 Barcode Scanner
    Part #: DS4308-HL7R0110ZCN | SKU: MOT306647

    Zebra DS4308 Handheld Scanner - Cable Connectivity - 1D, 2D - Imager - Black
