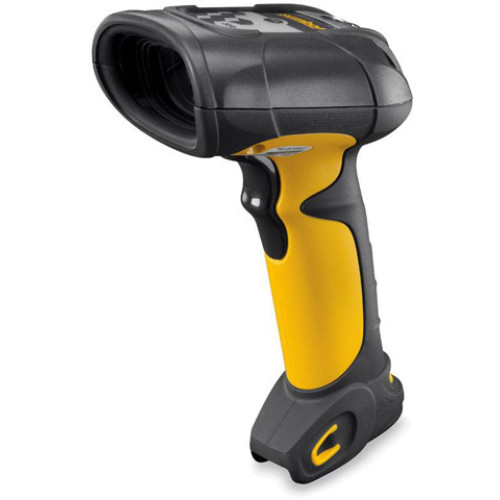

Motorola DS3500-ER Series Barcode Scanner
Motorola Barcode Scanner and Mobile Handheld Computer

Motorola DS3500-ER Series Barcode Scanner

Motorola DS3500-ER Series Barcode Scanner

The Motorola DS3500-ER Serieswas built to cost-effectively enable both 1D and 2D bar code reading in any warehouse. These rugged handheld scanners lets users scan virtually any bar code across the widest range of distances possible. From near contact to as far as 30 ft./9.14 m away. One device handles it all, so your customers no longer need to purchase multiple scanning devices to support different types of bar code and different distances.
Discontinued - Need Assistance
See all options
  • Full range scanner captures from near contact to over 30 ft./9.14 m
  • Scans 1D and 2D barcodes
  • Maximum rugged design
  • IP65 rated
  • Superior motion tolerance
  • FIPS 140-2 validated
  • Omnidirectional reading
  • Superior decode capability
  • Scan in darkness or in bright sunlight
  • Continuous scanning mode
  • Advanced data formatting
Motorola DS3500-ER Series Specs Motorola DS3500-ER Series Specs (pdf)

Performance Characteristics

Scan pattern
Omnidirectional

Skew (Yaw)1
±60°

Roll (Tilt)2
360°

Pitch3
±60°

Interfaces supported
IBM, Keyboard wedge, RS-232, Synapse, USB

Decode capability
1-D/2-D/PDF417, See data sheet for full list of supported symbologies

Battery life
Fully charged (100%) in 4.5 hours

Physical Characteristics

Power source
2200 mAh Li-ion battery, No battery required on some models

Color
Twilight black, Yellow

Dimensions
7.34 in. L x 4.82 in. W x 2.93 in. D
18.65 cm H x 12.25 cm W x 7.43 cm D

Weight
DS3508-ER (without cable): 12.8 oz. (363 grams) DS3578-ER: 13.79 oz. (391 gm)

Handheld
Yes

Cordless
Yes

Corded
Yes

Radio Specifications

Frequency
2.402 to 2.480 GHz adapative frequency hopping and co-existence with 802.11 wireless networks

Radio range
Radio range: Up to 300 ft. (100m) direct line of sight in open air. typical indoor cordless range is 100 ft. (33m), but range will vary depending upon environment

Radio type
Bluetooth Class II, Version 2.1

Regulatory Specifications

Laser/LED Safety
EN 60825-1, IEC 60825-1, 21CFR1040.10, IEC Class 2

Environmental
RoHS Directive 2002/95/EEC

Electrical Safety
UL 60950-1, C22.2 No. 60950-1, EN 60950-1, IEC 60950-1

User Environment

Humidity
5% to 95% relative humidity, non-condensing

Ambient lighting tolerance
Sunlight – 8,000 ft. candles (86,000 LUX); Incandescent;Fluorescent; Mercury Vapor; Sodium Vapor – 150 ft. candles (1,600 LUX); Immune to direct exposure to normal office and factory lighting conditions, as well as direct exposure to sunlight

Storage temperature
-40° F to 140° F/-40° C to 60° C

Operating temperature
-4° F to 122° F/-20° C to 50° C

Environmental sealing
IP65

Drop specifications
Functions normally after repeated 6.5 ft. (2 m) drops to concrete

Extended Details
Refine Your Options
Shop By
Shopping Options
Scanner Capability
  1. 2D (5)
Included Cables
  1. USB (1)
  1. Motorola DS3508-ER Barcode Scanner

    Motorola DS3508-ER Barcode Scanner
    Part #: DS3508-ER20005R | SKU: 156906

    Scanner Only - 2D Long Range Imager Scanner - Corded - Does not include necessary cables - For the full kit purchase (Part# DS3508-ERAU0100ZR)
  2. Motorola DS3508-ER Barcode Scanner

    Motorola DS3508-ER Barcode Scanner
    Part #: DS3508-ERAU0100ZR | SKU: MOT194931

    DS3500 Extended Range, USB Kit, Long Range 2D Imager, Rugged Handheld Corded Scanner. Includes USB cable.
  3. Motorola DS3508-ER Barcode Scanner

    Motorola DS3508-ER Barcode Scanner
    Part #: DS3508-ERAR0200UR | SKU: MOT206756

    DS3508-ER, RS-232 Kit, Long Range 2D Imager, Rugged Handheld Corded Scanner. Includes RS-232 cable and power supply. Requires Line Cord (Part# 23844-00-00R)
  4. Motorola DS3500-ER Series Barcode Scanner

    Motorola DS3500-ER Series Barcode Scanner
    Part #: DS3578-ER2F005WR | SKU: 156907

    Scanner Only - Cordless - 2D Imager - ER Focus - FIPS Encryption - Cradle and accessories sold separately
  5. Motorola DS3500-ER Series Barcode Scanner

    Motorola DS3500-ER Series Barcode Scanner
    Part #: DS3578-ERFU2100IR | SKU: MOT190098

    USB Kit - Cordless - 2D Imager - ER Focus - FIPS Encryption - Charging and Communication cradle - USB cable - Power supply - AC line cord (Part# 50-16000-182R) sold separately.
