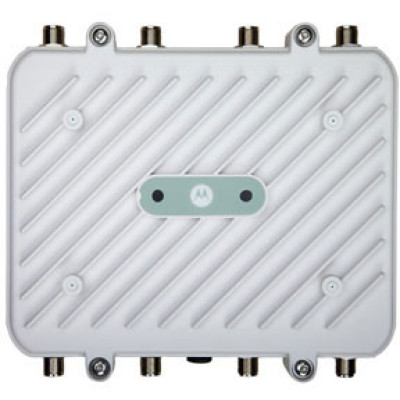

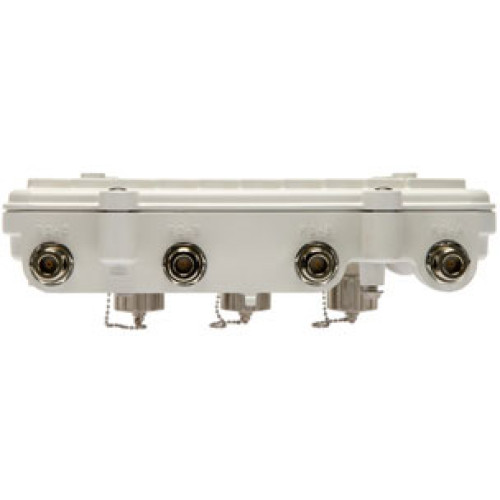

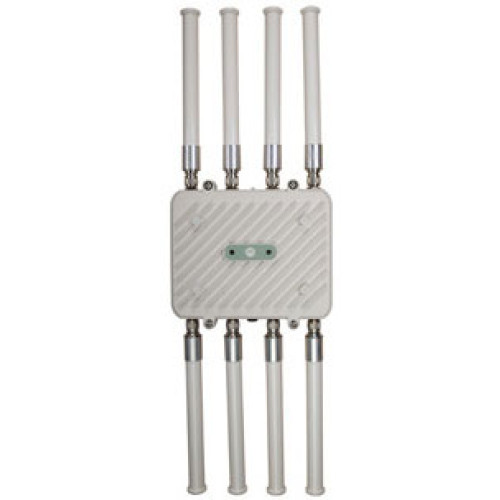

Motorola AP 8163 Access Point

Security

Stateful Firewall, IP filtering, NAT, 802.1x, 802.11i, WPA2, WPA Triple-Methodology Rogue Detection: 24x7 dual-band WIPS sensing, MU-assisted, on-board IDS and secure guest access (hotspot)

Wireless medium

Direct Sequence Spread Spectrum (DSSS), Orthogonal Frequency Division Multiplexing (OFDM) and Spatial Multiplexing (MIMO)

QoS

WMM, WMM-UAPSD, 802.1p, Diffserv and TOS

Network standards

IEEE 802.11a/b/g/n, 802.11d and 802.11iWPA2, WMM and WMM-UAPSD

Maximum transmit power settings

2.4 GHz: 27.7dBm, 5.2 GHz: 24.7dBm

Data rates supported

802.11b/g: 1, 2, 5.5, 11, 6, 9, 12, 18, 24, 36, 48 54 Mbps 802.11a: 6, 9, 12, 18, 24, 36, 48 54 Mbps802.11n: MCS 0-23 up to 450 Mbps

Radio approval

FCC (USA), Industry Canada, CE (Europe), Australia

Wind loading (165 mph)

150 mph

Shock and vibration

Operation Shock IEC60721-3-4, Class 4M3, MIL STD 810F; Operation Vibration IEC60721-3-4, Class 4M3

Electrostatic discharge

15kV air, 8kV contact

Storage altitude

30, 000 ft. at 82 °F/28 °C

Operating altitude

8, 000 ft. at 54 °F/12 °C

Operating humidity

5 to 95% RH non-condensing

Storage temperature

-40° F to 185° F/-40° C to 85° C

Operating temperature

-22° F to 140° F/-30° C to 60° C
