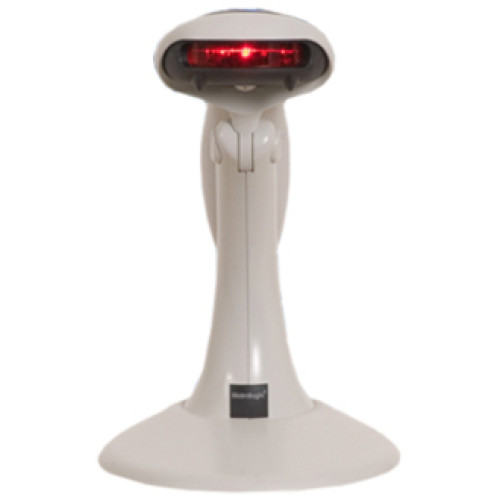

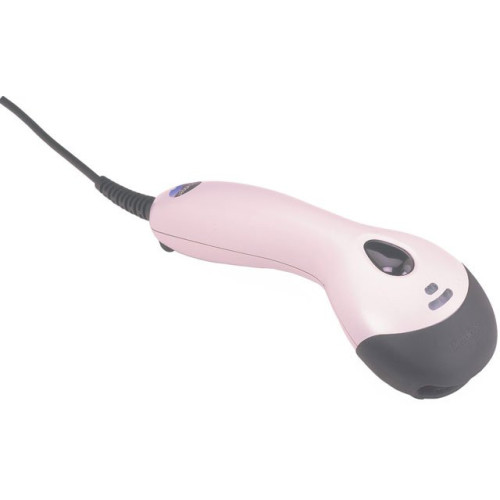

Metrologic MS9544 Voyager PDF Barcode Scanner
Part #: MK9544-72B41 | SKU: 7697

VoyagerPDF is a handheld bar code scanner capable of decoding all standard 1D, 2D (PDF417), RSS and composite symbologies.

Metrologic MS9544 Voyager PDF Barcode Scanner

Part Details: MS9544 Voyager Auto-Trigger Scanner (PDF417, RS-232, Mask Stand, Cable, Manual and Power supply)

Need a different version of the Metrologic MS9544 Voyager PDF Barcode Scanner? View all 17 configurations

MS9544 Voyager PDF Specs (pdf)

Form Factor: Handheld Scanner
Barcode Dimension: 1D/2D
Resolution: 5 mil(s)
Symbologies Supported:
- All Standard 1D Symbologies
- RSS-14
- PDF 417
- Truncated PDF417
- Micro PDF
- MacroPDF
Scanner Type: Laser
Scan Rate: 180 lps
Interface Options: RS-232
Interface Connectivity: Corded
Scan Pattern: Single Line
Input Voltage: 5.2 V DC
Depth of Field:
- 0.5 - 2"@5.2mils
- 0 - 5"@7.5mils
- 0 - 7"@10.4mils
- 0 - 8"@13mils
- 1 - 10"@21mils
- 1 - 6"@10mils - PDF 417
- 1 - 7"@15mils - PDF 417

Dimensions:
- 7.8" (198.12mm) x 3.1" (78.74mm) x 1.6" (40.64mm)
- 7.8" (198.12mm) x 3.1" (78.74mm) x x 1.6" (40.64mm)
Weight: 149 g
Color: Gray

Package Contents:
- VoyagerPDF MS9544 Barcode Scanner
- 110 V Power Supply
- Mask Stand
- Coiled Cable
- Manuals
Cables Included: RS-232

Agency Approvals:
- Class 1 IEC 60825-1:1993+A1:1997+A2:2001
- Class 1 EN 60825-1:1994+A11:1996+A2:2001
- FCC
- ICES-003
- EN55022 Class B

Temperature:
- 0Â°C (32Â°F) to 40Â°C (104Â°F) Operating
- -40Â°C (-40Â°F) to 60Â°C (140Â°F) Storage
Humidity: 5 to 95% Non-condensing
