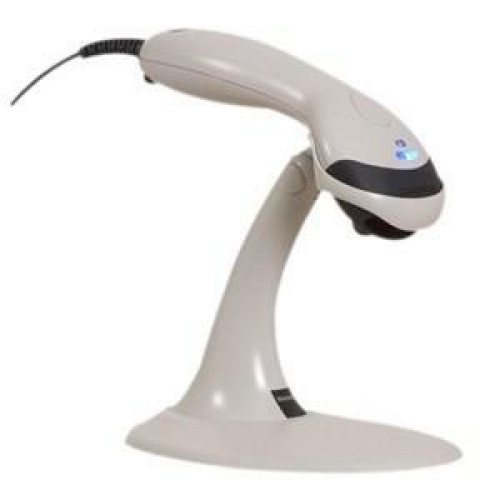

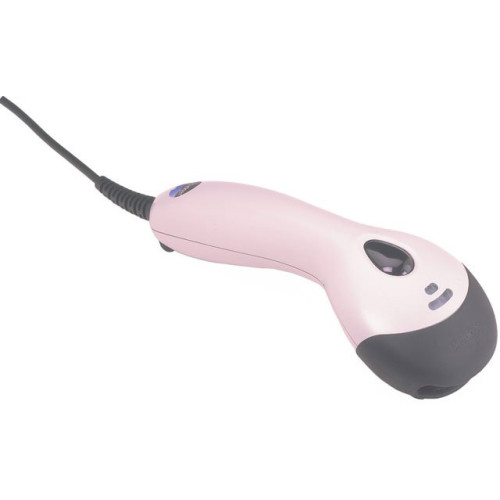

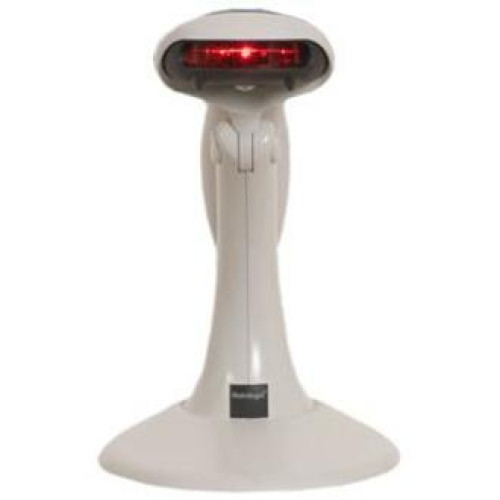

Metrologic MS9544 Voyager PDF Barcode Scanner
Part #: MK9544-72A38 | SKU: 7695

Product Type: Handheld Barcode Scanner
Brand Name: Honeywell
Manufacturer: Honeywell International, Inc
Product Model: MS9544
Product Name: VoyagerPDF MS9544 Barcode Reader
Product Line: VoyagerPDF

VoyagerPDF is a handheld bar code scanner capable of decoding all standard 1D, 2D (PDF417), RSS and composite symbologies.

Metrologic MS9544 Voyager PDF Barcode Scanner

Part Details: MS9544 Voyager Auto-Trigger Scanner (PDF417, USB Keyboard, Mask Stand, Cable, Manual and No Power supply)

Need a different version of the Metrologic MS9544 Voyager PDF Barcode Scanner? View all 17 configurations

MS9544 Voyager PDF Specs (pdf)

Barcode Dimension:
- 1D
- 2D
Scan Pattern: Single Line
Connectivity Technology: Cable
Light Source: Laser
Barcode Symbology Supported:
- All standard 1D & 2D Barcodes including RSS, PDF417, PDF417 truncated, micro PDF, macro PDF and RSS-14 Composite Barcodes.
- All standard 1D & 2D Barcodes including RSS, PDF417, PDF417 truncated, micro PDF, macro PDF and RSS-14 Composite Barcodes.
Maximum Scan Resolution: 5 mil

Green Compliant: Yes
Green Compliance Certificate/Authority:
- RoHS
- WEEE
Package Contents:
- VoyagerPDF MS9544 Barcode Reader
- USB Cable
- VoyagerPDF MS9544 Barcode Reader
- USB Cable
Certifications & Standards:
- RoHS
- WEEE
- Laser Class 1:
- Class 1; IEC60825-1:1993/A1:1997+A2:2001
- Class 1; EN60825-1:1994/A11:1996+A2:2001
- EMC:
- FCC Class B
Additional Information:
- Supported Interfaces:
- SerialKeyboard WedgeOCIALight Pen EmulationIBM 468X/469XUSB

Extended Details
