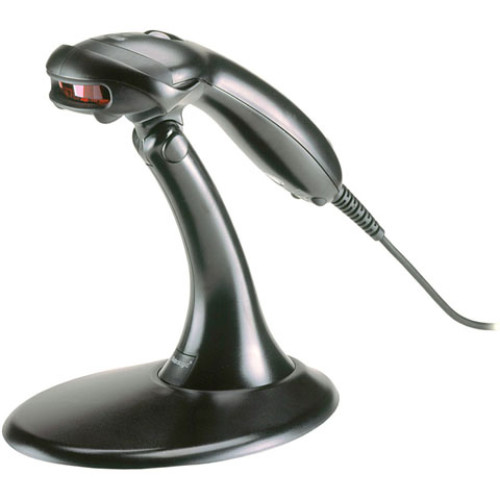

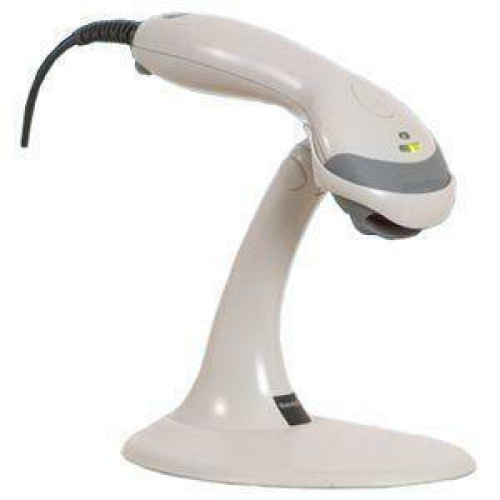

Honeywell MS9540 Voyager Barcode Scanner
Part #: MK9540-32A62 | SKU: HON16192

With a futuristic design and high-performance scanning technology the MS9540 VoyagerCG is equipped with all of the features of the MS9520 Voyager with the addition of Honeywell's exclusive CodeGate. CodeGate is an intuitive scanning system that is ideal for all scanning applications including Point-of-Sale document processing inventory and menu scanning just to name a few. CodeGate works hand in hand with Honeywell's automatic-triggering scheme. Simply present a barcode to the scanner, place the high-visibility laser line on the barcode then press the CodeGate button to transmit the data to the host system. It's as easy as one two three! Equipped with both In-Stand and Out-of-Stand operation Voyager can be used as both a handheld and fixed projection scanner. While resting in the stand the CodeGate button is deactivated making VoyagerCG a presentation scanner. The feature-packed Voyager comes equipped with PowerLink user-replaceable cables and power supply MetroSelect one-code programming MetroSet Windows-based software configuration utility Bits n' Pieces data editing utility and an Electronic Article Surveillance (EAS) option. With aggressive performance and lightweight design VoyagerCG is far and away the most advanced scanner on the market today!

Honeywell MS9540 Voyager Barcode Scanner

Part Details: CG - Ruby Verifone kit - 1.8M coiled Ruby Verifone 10 Pin RJ45 (MV-3MPS-VR) cable - Stand - Color: Black - Non cancelable/ Non returnable.

Additional Information

Connection No
Connectivity No
Form Factor No
Included Cables AT/PS2 Keyboard Wedge
Manufacturer Honeywell
Model Name MS9540 Voyager
Product Condition No
Ruggedness General Purpose
Scan Pattern No
Scanner Capability 1D
Scanner Type Laser

Technical Information

  • Form Factor:
    • Handheld Scanner
    • Hands Free Scanner
  • Barcode Dimension: 1D
  • Resolution: 5 mil(s)
  • Symbologies Supported:
    • All Standard 1D Symbologies
    • RSS-14
    • RSS-Limited
    • RSS-Expanded
  • Scanner Type: Laser
  • Scan Rate: 72 lps
  • Interface Options: Verifone Ruby
  • Interface Connectivity: Corded
  • Scan Pattern: Single Line
  • Input Voltage: 5 V DC
  • Depth of Field:
    • 0 - 2"@5.2mils
    • 0 - 5"@7.5mils
    • 0 - 7"@10.4mils
    • 0 - 8"@13mils
    • 1 - 10"@21mils

General Information

Physical Characteristics

  • Dimensions:
    • 7.8" (198.12mm) x 3.1" (78.74mm) x 1.6" (40.64mm)
    • 7.8" (198.12mm) x 3.1" (78.74mm) x x 1.6" (40.64mm)
  • Weight: 5.25 oz
  • Color: Black

Other

  • Package Contents:
    • VoyagerCG MS9540 Barcode Scanner
    • Mask Stand
    • 8-pos RJ45 Coiled Cable
    • MVC
    • Manuals
  • Cables Included: Verifone Ruby

Agency Approvals

  • Agency Approvals:
    • Class 1 IEC 60825-1:1993+A1:1997+A2:2001
    • EN 60825-1:1994+A11:1996+A2:2001
    • FCC
    • EN55022 ClassB
    • ICES-003

Environmental Conditions

  • Temperature:
    • 0°C (32°F) to 40°C (104°F) Operating
    • -40°C (-40°F) to 60°C (140°F) Storage
  • Humidity: 5 to 95% Non-condensing
Extended Details

Recommended Accessories for Model: Honeywell MS9540 Voyager Barcode Scanner

  • Honeywell Cables Accessory
    Part #: 53-53235-N-3 | SKU: HON83408

    9.5' Coiled USB Cable. Type A connector. Color: Black.
    Price: $28.17
  • Honeywell 1400g Power Device
    Part #: 46-00525-6 | SKU: HON453630

    Power Supply - 90 to 255 AC Input Voltage - 1A Output Current - North American Plug - Works with Select Honeywell Scanners
    MSRP: $53.99 Price: $43.63
  • Honeywell MS9520 Voyager Accessory
    Part #: 46-46508 | SKU: HON28773

    Wall Mount Stand (for Voyagers MS9540, MS9520, MS9544 and MS9524)
    MSRP: $31.45 Price: $31.29
  • Honeywell MS9520 Voyager Accessory
    Part #: 46-46128 | SKU: HON28769

    Mask Stand (Light Gray) for the Voyagers, MS9540, MS9520, MS9544 and MS9524
    MSRP: $31.45 Price: $31.29
  • Honeywell Cables Accessory
    Part #: 53-53002-N-3 | SKU: HON83338

    CABLE, KBW, BLACK, 2.9 METERS (9.5'), COILED, HOST POWER
    MSRP: $32.08 Price: $31.64

Recommended Warranties for Model: Honeywell MS9540 Voyager Barcode Scanner

  • Honeywell Service Contracts Service Contract
    Part #: SVC2DAYDEPOT-SCN3 | SKU: HON604167

    AddOn, Edge Service, 2-Day Depot Upgrade, 3-Year Agreement, Requires purchase of a 3-Year Gold Maintenance Contract.
    $111.49
  • Honeywell Service Contracts Service Contract
    Part #: SVC2DAYDEPOT-SCN5 | SKU: HON604168

    AddOn, Edge Service, 2-Day Depot Upgrade, 5-Year Agreement, Requires purchase of a 5-Year Gold Maintenance Contract.
    $148.65
  • Honeywell Voyager 1200g Service Contract
    Part #: SVC2DAYDEPOT-SCN1 | SKU: HON616488

    AddOn, Edge Service, 2-Day Depot Upgrade, 1-Year Agreement, Requires purchase of a 1-Year Gold Maintenance Contract.
    $37.17
  • Honeywell Service Contracts Service Contract
    Part #: HHSCAN1-REPAIR | SKU: HON402769

    Flat Rate Repair fee for 9590, 9520, 9540, 5145, 4206, 3800, 3200, 3780, 1200, 1250, and 1300. This charge is for any required repair not covered by warranty or comprehensive service.
    Price: $136.25
  • Honeywell MS9540 Voyager Service Contract
    Part #: SVC9540G-SG1R | SKU: HON539184

    Honeywell Edge Services Gold - 1 Year Extended Service (Renewal) - Service - Carry-in - Maintenance - Parts & Labor
    Price: $20.86
